H5 Fireplace

Home > Gas Fireplaces > H5 Gas Fireplace



H5 Gas Fireplace

The H5 gas fireplace seamlessly combines premium materials with cutting-edge radiant and convective heat technology. Designed for those who appreciate a modern flame aesthetic, the H5 offers three distinctive fuel bed options: birch logs, traditional logs, and driftwood. Its built-in secondary heat exchanger enhances convective heating naturally, eliminating the need for a fan.

Despite its compact design, the H5 provides a generous viewing area, showcasing ambient flames and glowing embers to create an inviting focal point in any space.

Specifications

Model Max Input Min Input Max Output Energuide
1100M 30,000 16,000 22,857 71.00%
Gas Type Natural Gas (NG) or Propane (LPG)
Valor 10 Remote Quick Guide | Manual | Mobile App
Included with Fireplace Owner and Installation Manuals
Valor 10 Remote & Manual
RBWSK Wall Switch
Viewing Area 29 ⅞" w x 19 ¼" h = 575"²
Framing & Venting Refer to the Installation Manual.
HeatShift™ Installation & Planning
Wall Control RBWSK
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
MORE

INTRODUCING THE H5

The V-Class burner system takes the Valor H5 to new heights with improved fires, realistic log sets, and radiant warmth. Discover more about the H5, including installation, front, and accessory options.

HEATSHIFT SYSTEM™

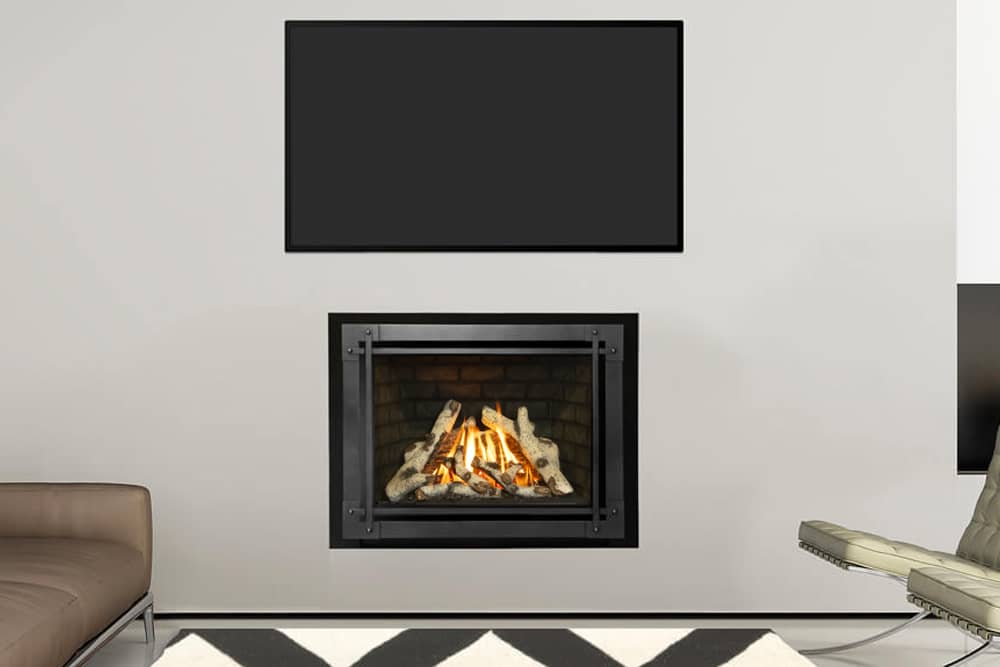

Reduce wall temperatures and improve overall performance with HeatShift. This feature is ideal when adding heat sensitive items or materials directly above the fireplace, such as a wall-mounted TV.

Valor HeatShift™

Options And Features

Fuel Beds
Valor H5 Gas Fireplace Insert Birch Logs

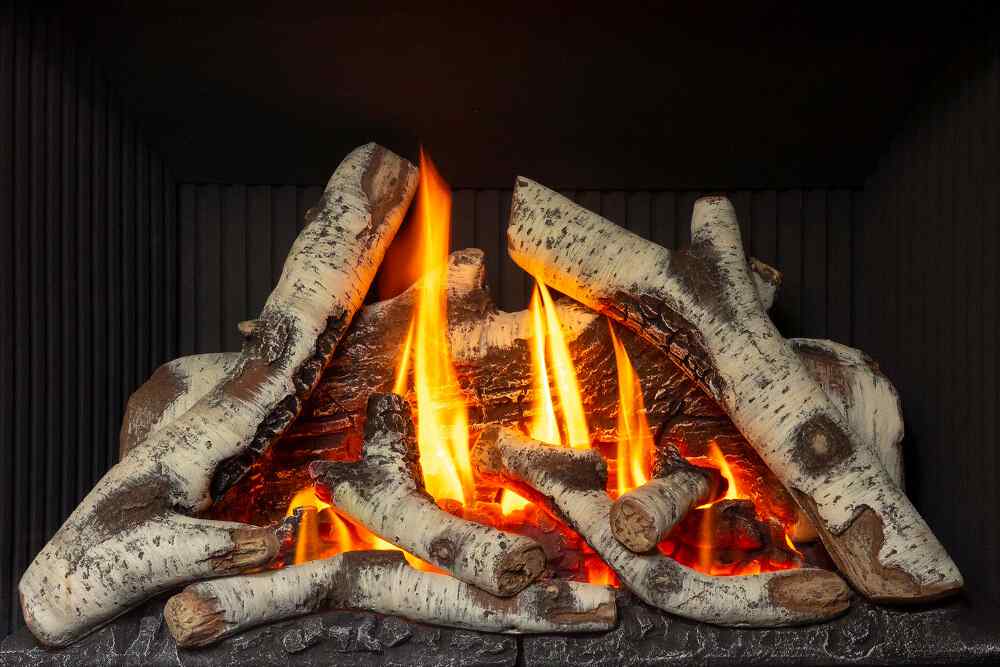

1100BLK | Birch Logs
View Flame Video
Valor H5 Gas Fireplace Driftwood Logs

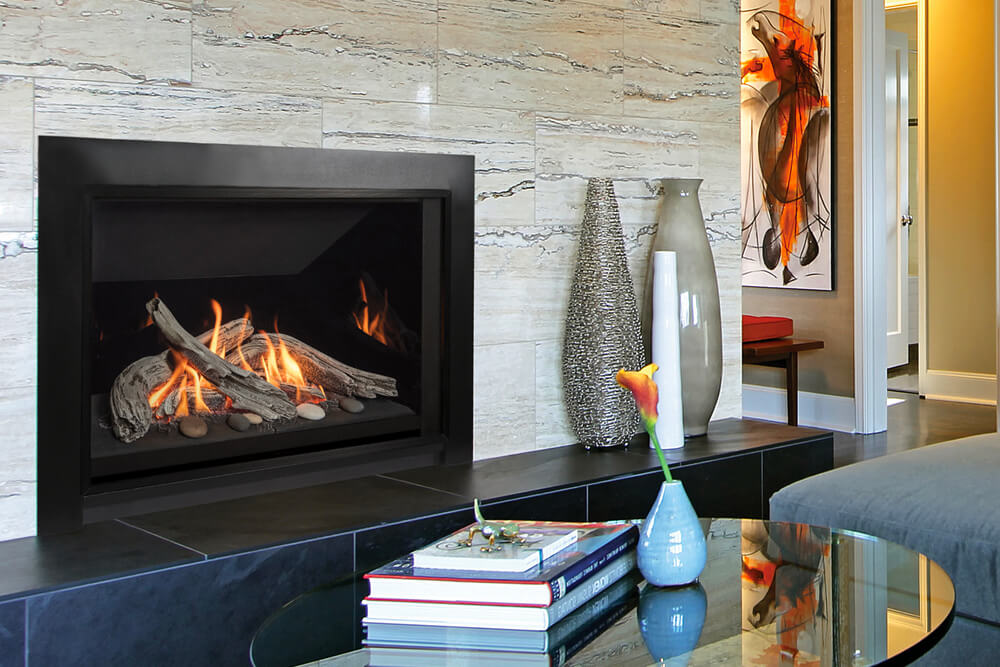

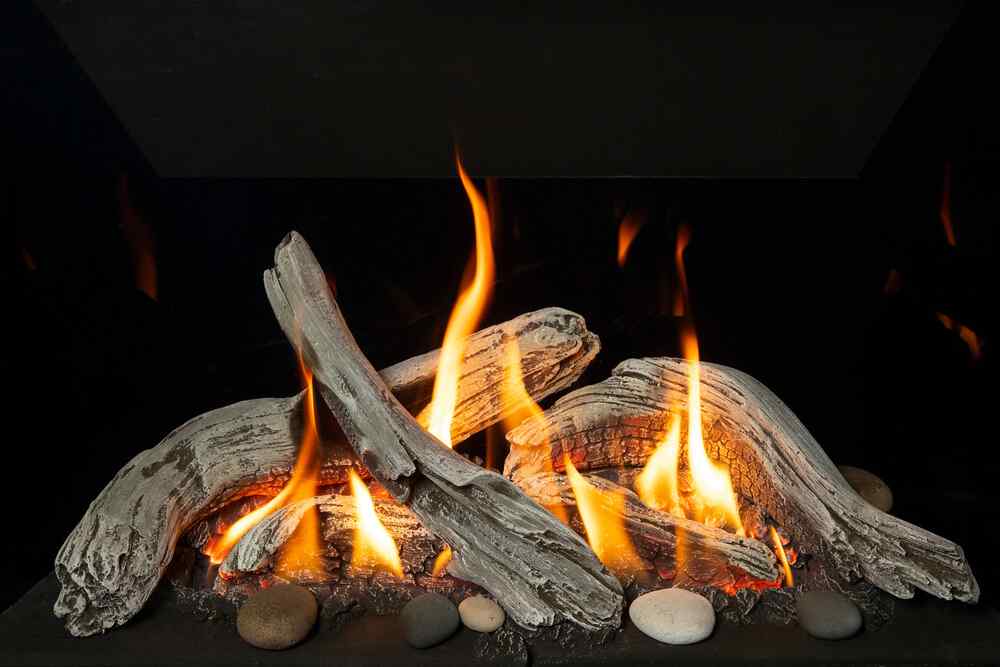

1100DWK | Driftwood
View Flame Video
Valor H5 Gas Fireplace Insert Traditional Logs

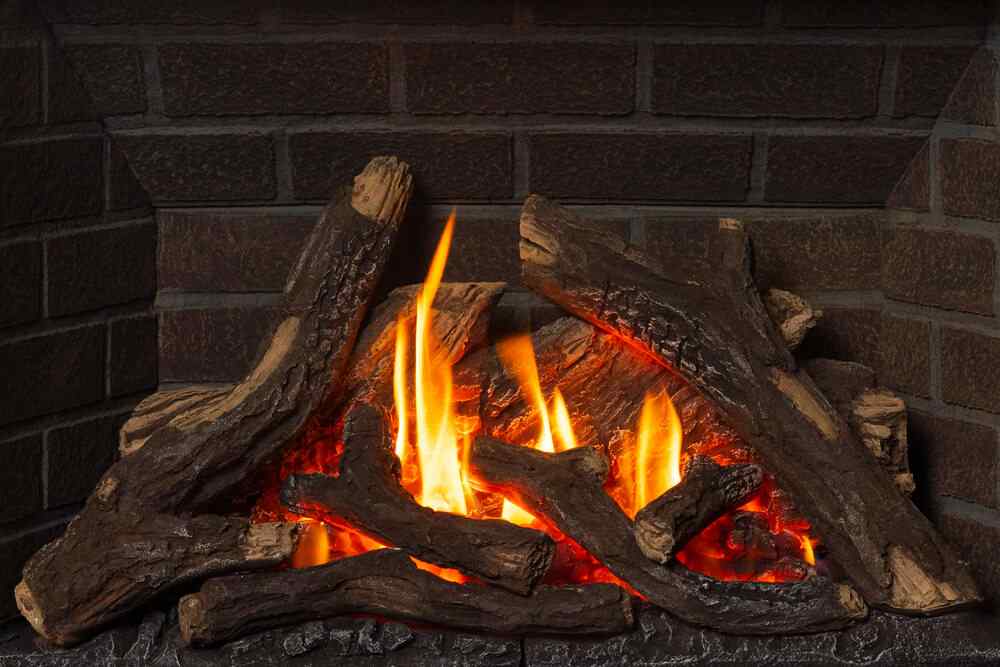

1100LSK | Traditional Logs
View Flame Video
Liners
H5 Gas Fireplace Red Brick Liner
1110VRL | Red Brick
View Now
H5 Gas Fireplace Ledgestone Liner
1115LSL | Ledgestone
View Now
Gas Fireplace Fluted Black Liner
1125FBL | Fluted Black
View Now
H5 Gas Fireplace Plain Black Liner
1160PBL | Plain Black
View Now
Gas Fireplace Reflective Black Glass Liner
1170RGL | Reflective Glass
View Now
Valor H5 Gas Fireplace Herringbone Liner
1175HBL | Herringbone
View Now
Engine Options
1100MN/MP H5 1100MN/MP Owner's Manual - (requires fuel bed & liner)
1100MN/MP H5 1100MN/MP Installation Manual - (requires fuel bed & liner)
Fronts

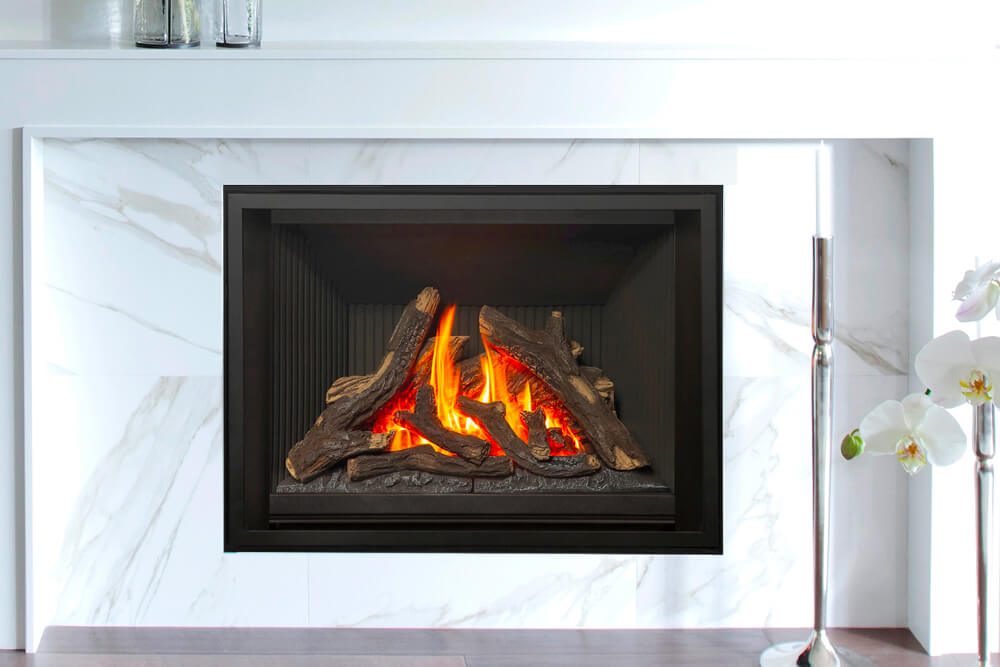

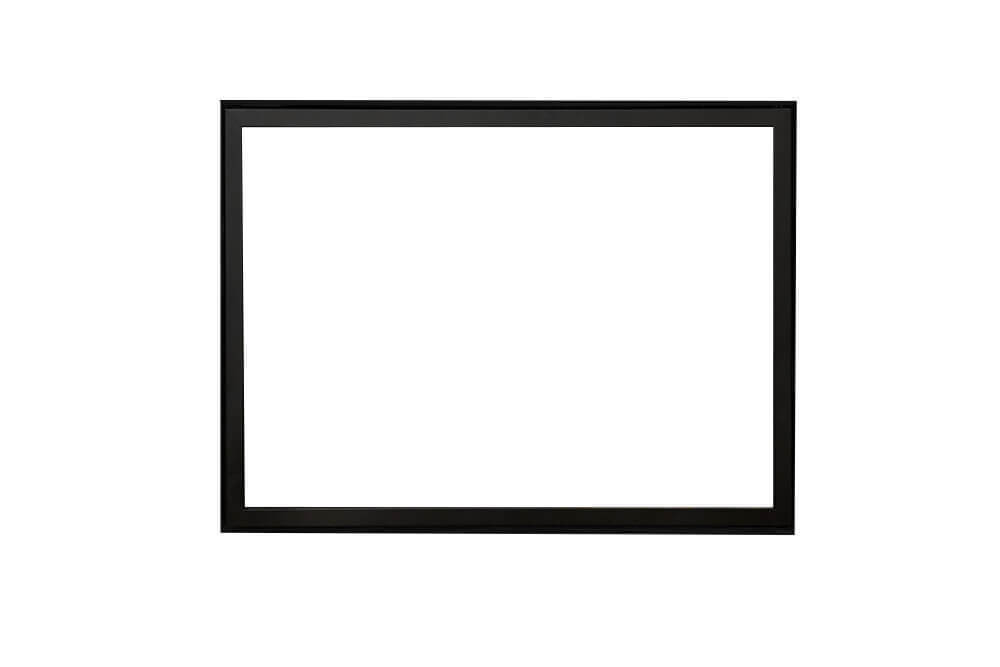

1130CIK 1" 4-Sided Clean Install Front - Black (36"w x 25 ⅜"h)

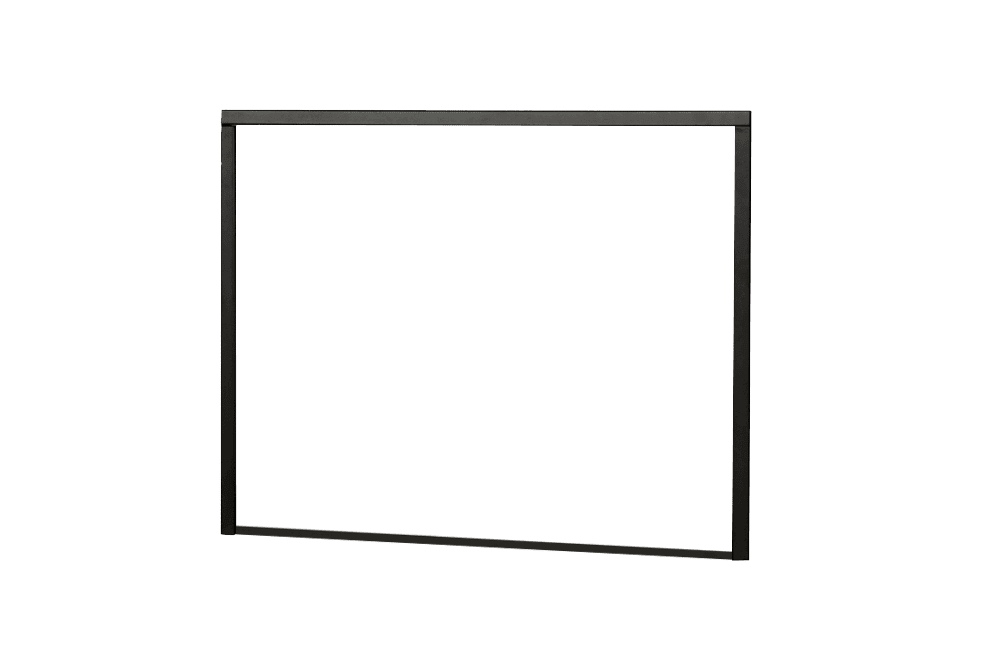

1130FFK 1" Fixed Frame - Black (35-11/16"w x 26-1/8"h)

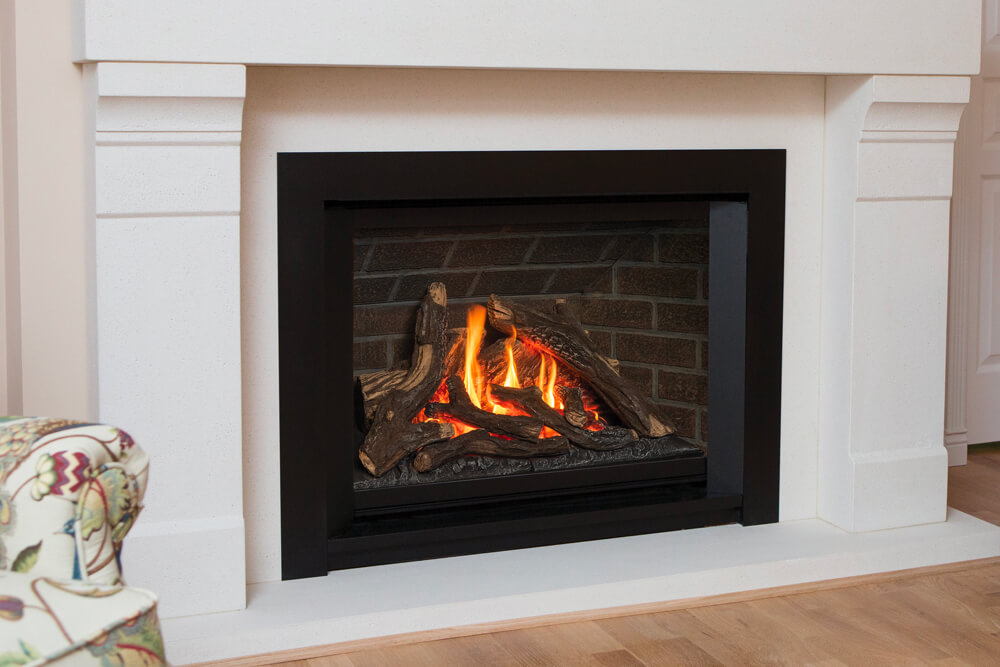

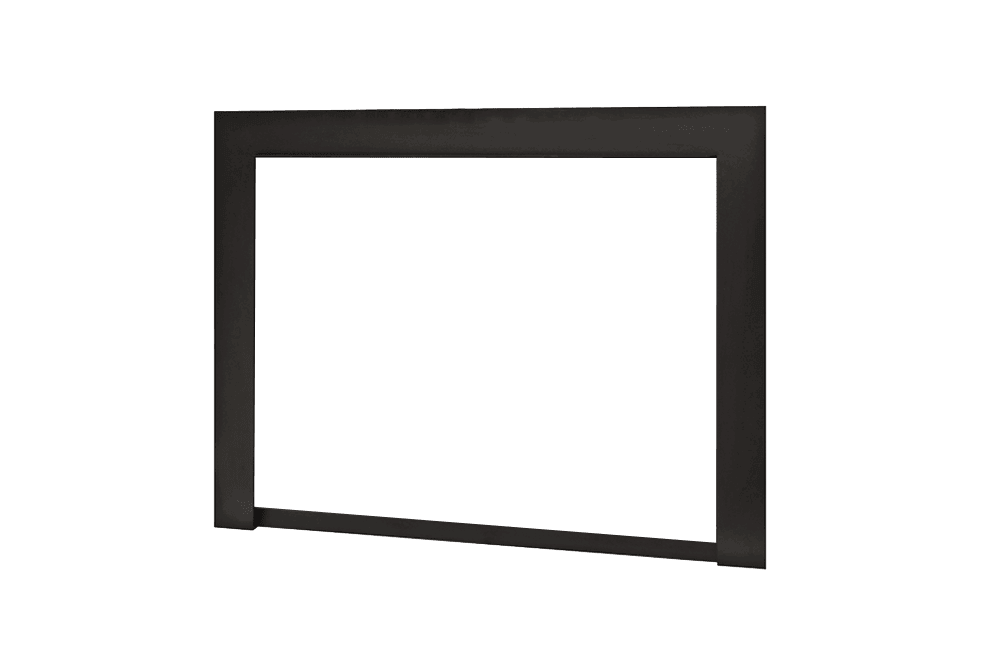

1135TSB 3 ¼" 3-Sided Front - Black (40-7/32"w x 30-5/16"h)

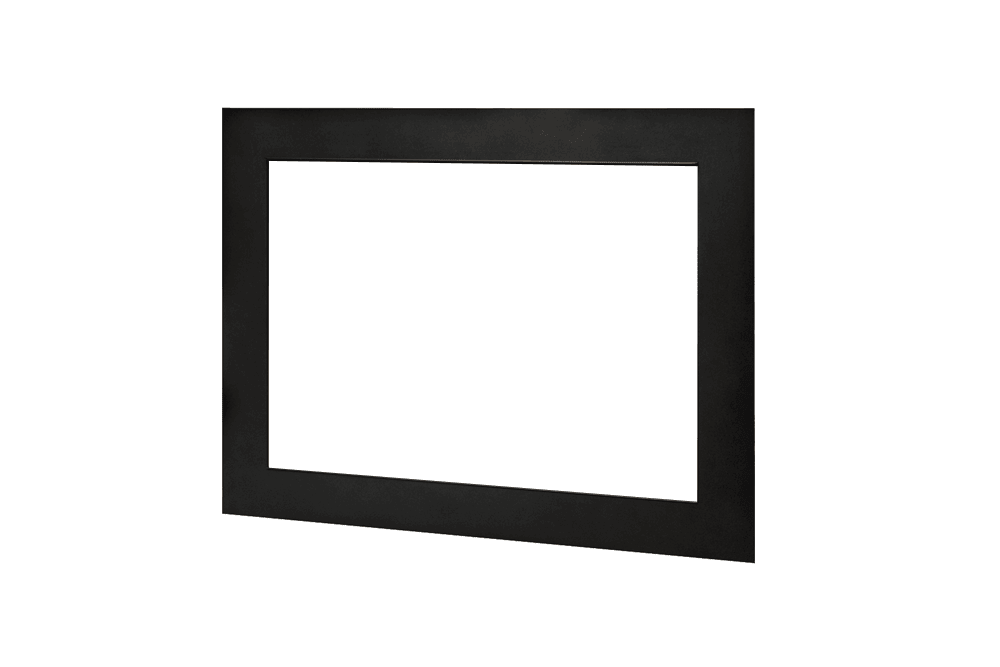

1140FSB2 4" 4-Sided Front - Black (41-7/32"w x 32-7/16"h)

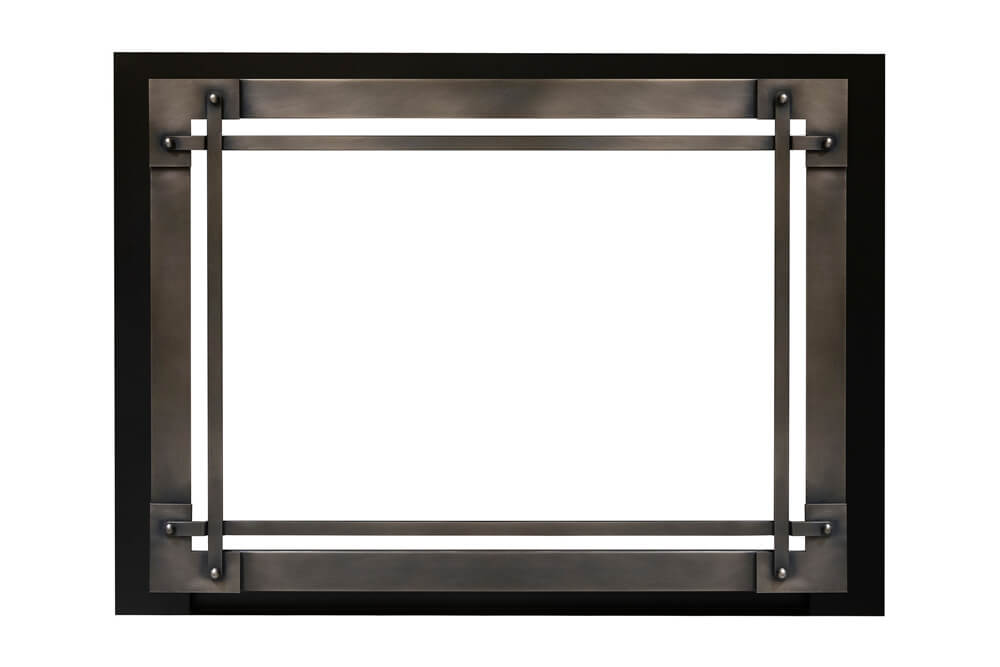

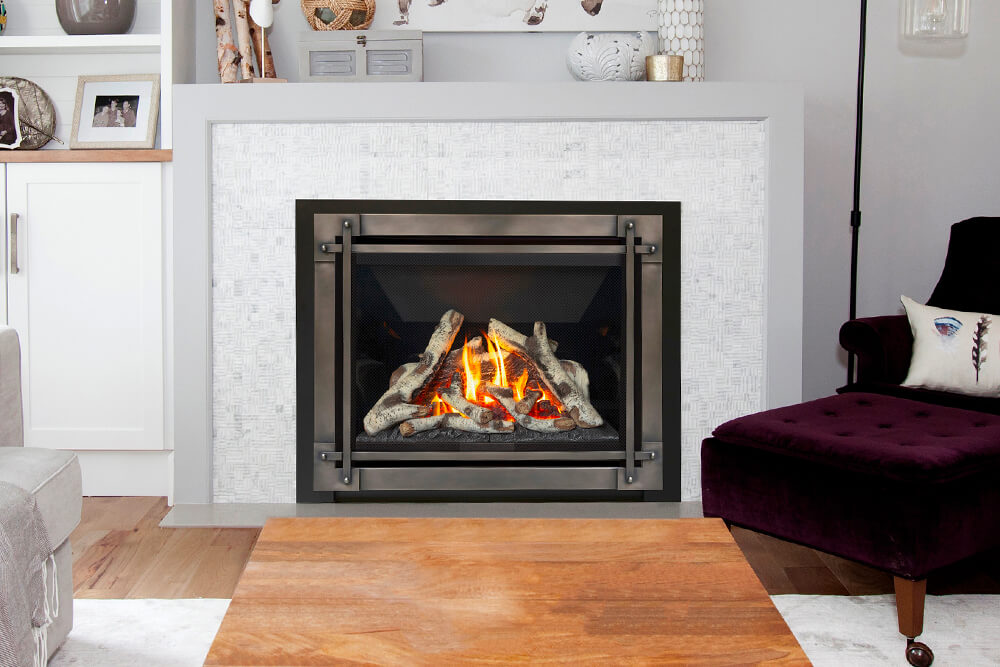

1184ECAS Craftsman Front - Aged Steel (41 ⅞"w x 31 ⅞"h)

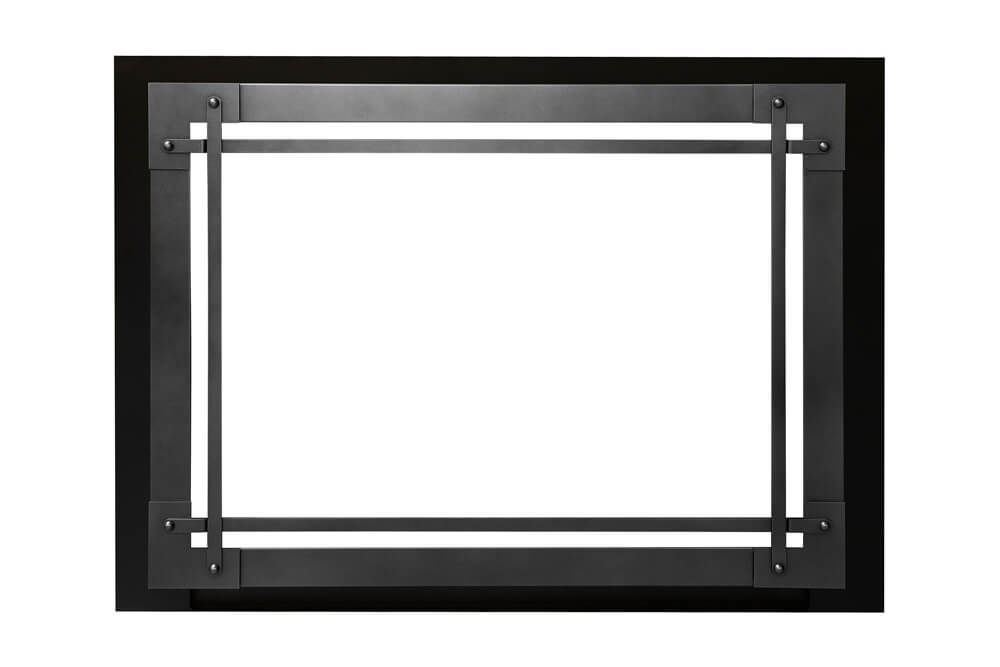

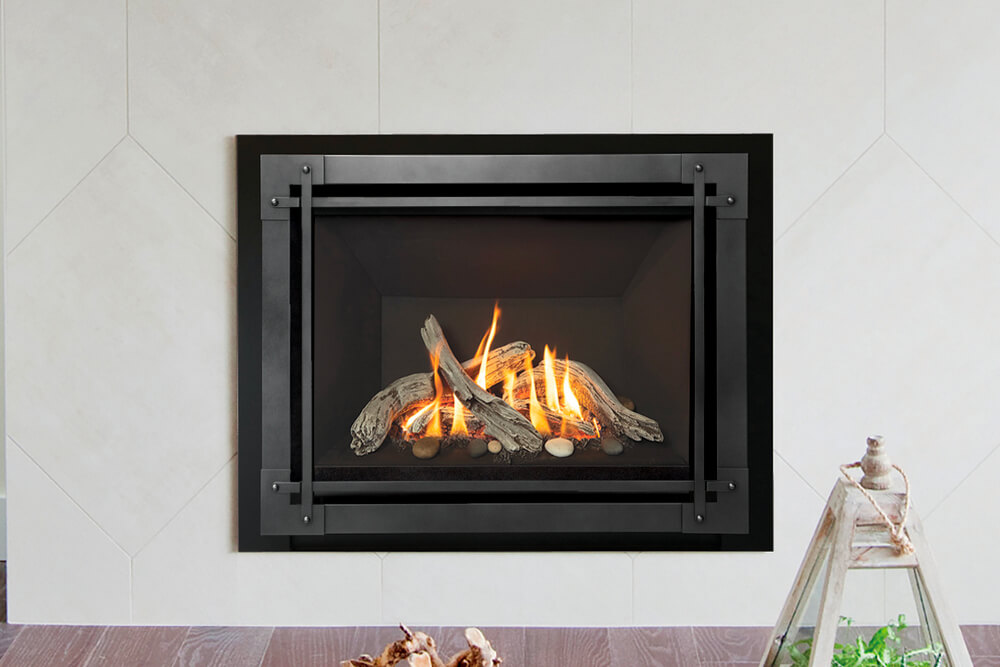

1184ECPW Craftsman Front - Pewter (41 ⅞"w x 31 ⅞"h)

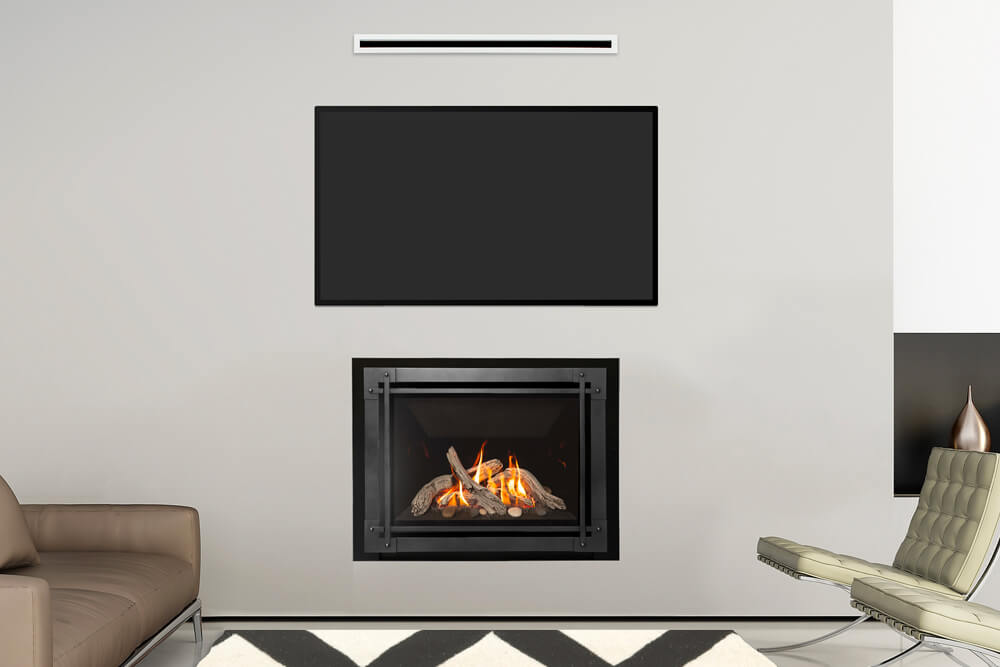

H5 with Valor HeatShift™
H5/H6 HeatShift Planning and Installation
Compatible with: LDK1, LDK2, LDK3, LDK4, LDK5, LDK6, LDK7, LDK9, and LDK10.
Brochure HeatShift reduces wall temperatures above the fireplace.
Optional Accessories
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
658NSFK New Siding Flashing Kit
658TG Terminal Guard
1156CLA Co-linear Adapter Kit
1170RGL Reflective Glass Liner installation manual

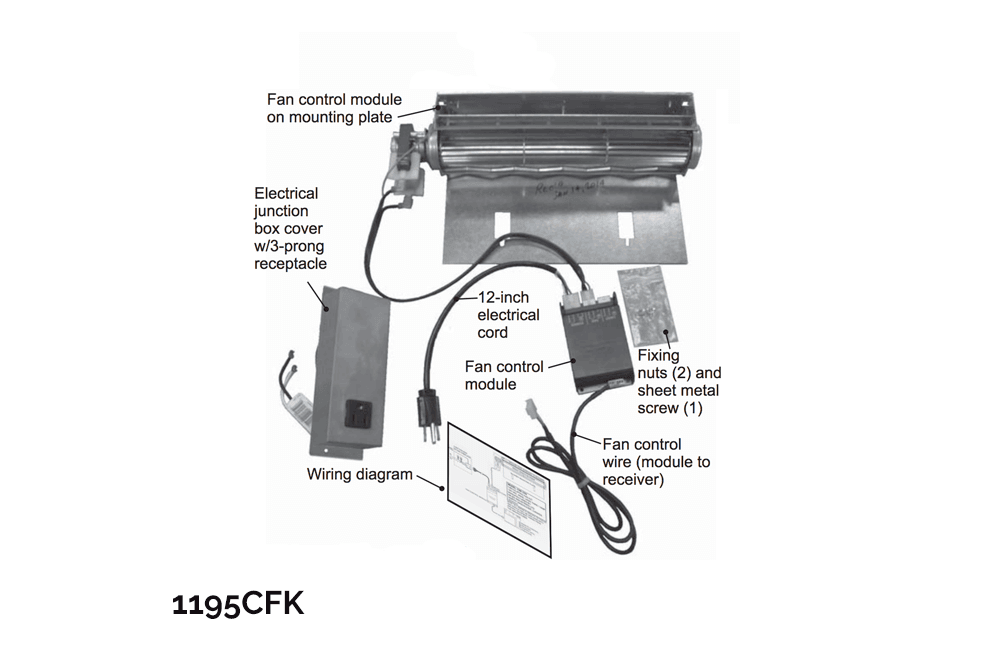

1195CFK Circulating Fan Kit (includes GV60VM)
1270RBK Valor HeatSplit - Remote Heat Distribution System
DVA5BV Direct Vent Adapter to 5" B-Vent
GV60CKO Outdoor Conversion Kit
GV60PAK Power Adapter Kit
GV60WiFi GV60 WiFi Module Kit

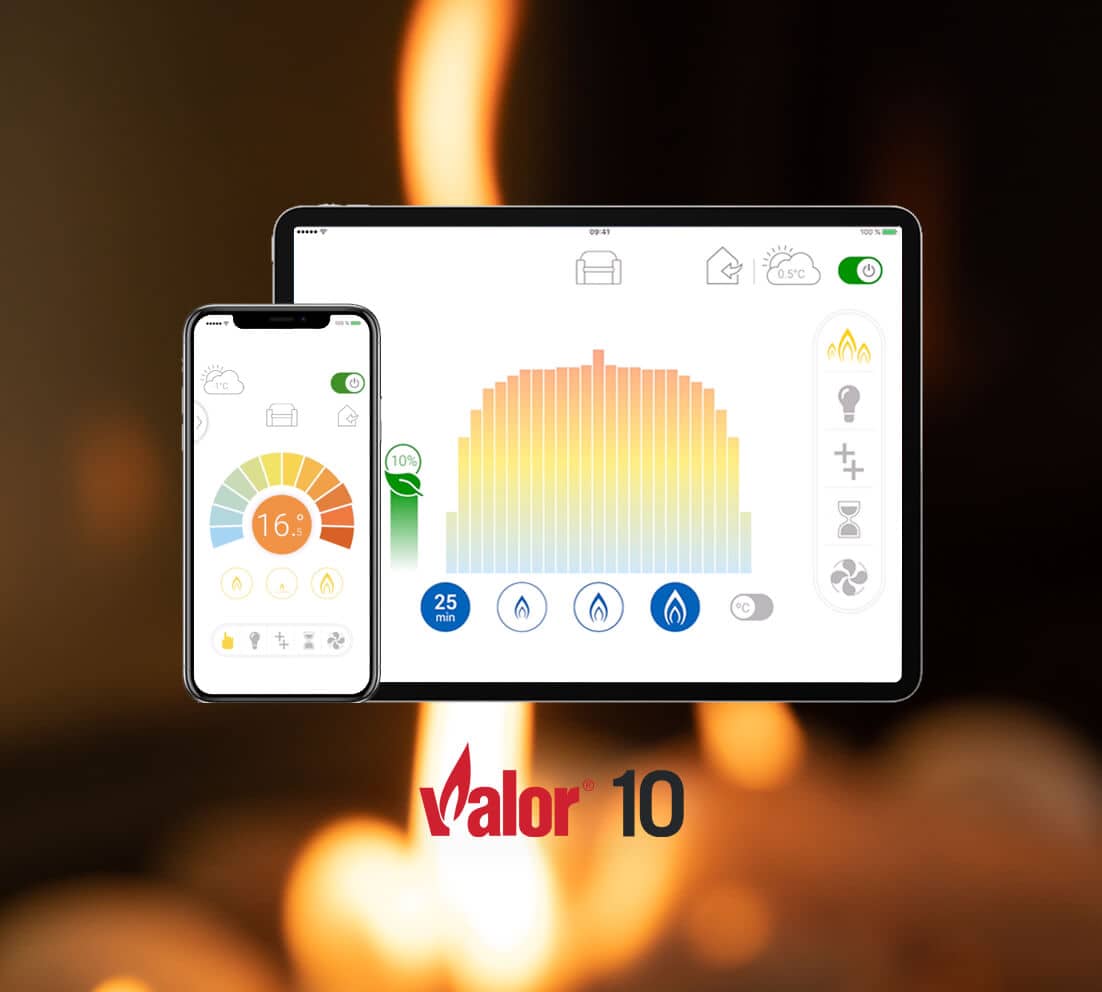

VALOR 10 MOBILE APP

Take full control of your fireplace with intuitive and interactive options—including the ability to program your fireplace, set a countdown timer, or implement child safety locks.

Valor 10 Remote App

Downloads

Additional Manuals or Options
Valor 10 Remote Valor 10 Remote Manual and Quick Guide
Valor 10 Mobile App Valor 10 WiFi Control & Upgrade Instructions
1100 Venting Co-Axial and Co-Linear Venting Options
Specifications Framing, dimensions and clearances
1100M Installation Checklist
1100 Specifications 1100J Venting only
1150 Specifications 1150J Venting only

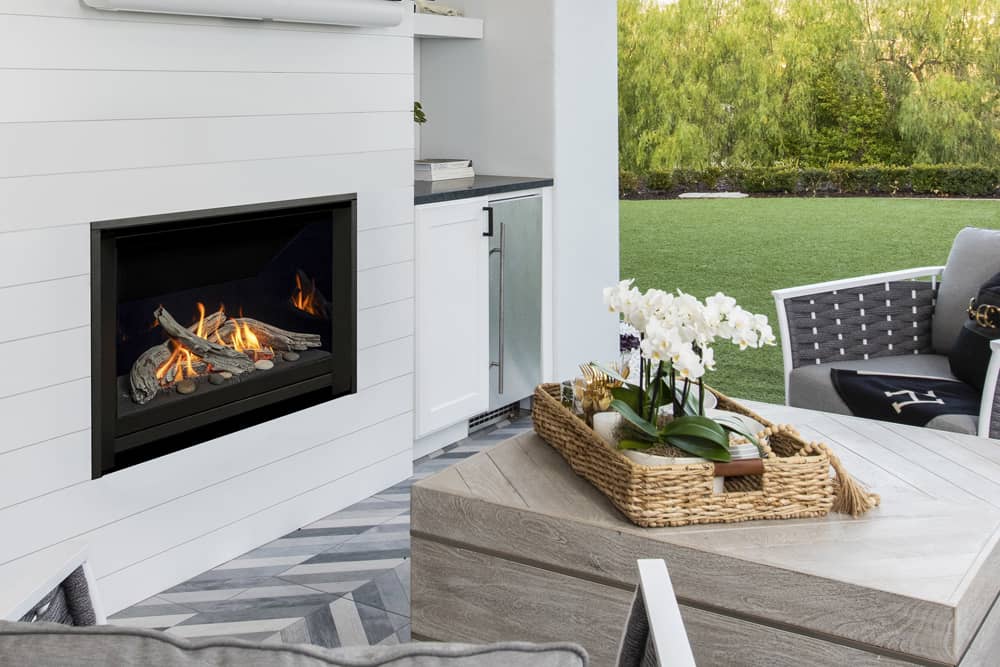

Outdoor Conversion Convert for your fireplace for outdoor use.
RBWSK Remote Battery & Wall Switch
Gas Conversion Kit
1100MNGKV2-MPGKV2 H5 Gas Conversion Kit
1100M MNGK/PGK H5 Gas Conversion Kit
1100/1150 NGK/PGK H5 Gas Conversion Kit
Archived Models & Accessories
1100JN/JP H5 Contemporary Engine - Natural Gas or Propane (requires fuel bed & liner)
1150JLN/JLP H5 Engine w/ Logs - Natural Gas or Propane (requires liner)
1100IN/IP & 1150ILN/P H5 1100I & 1150I Fireplace
1105RGL Reflective Glass Panel (for use with 1125FBL/1160PBL)

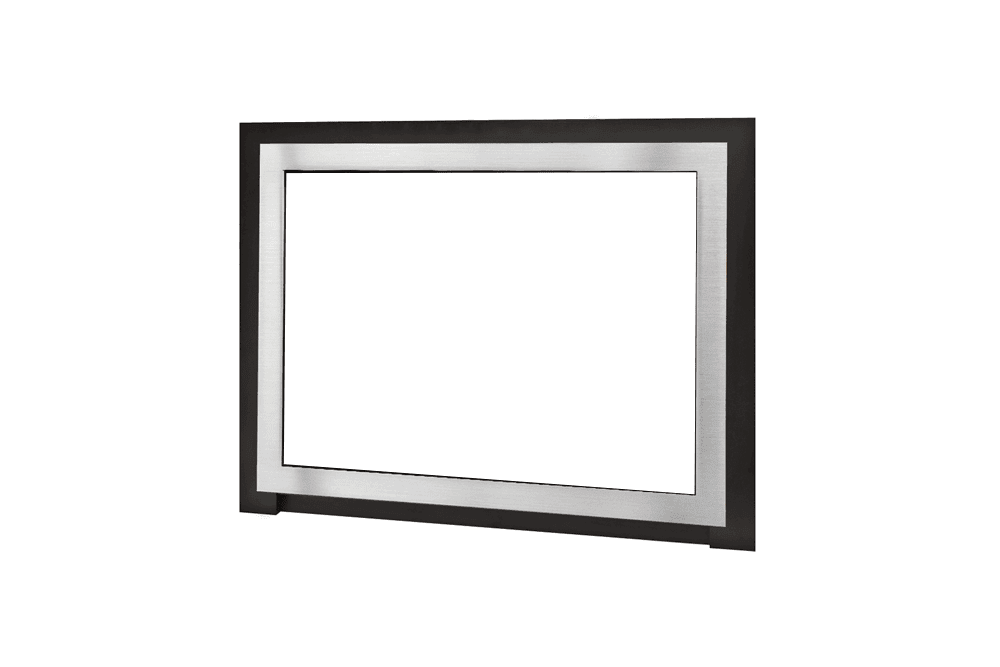

1135TSBEN Edgemont Front - Brushed Nickel with Backing Plate

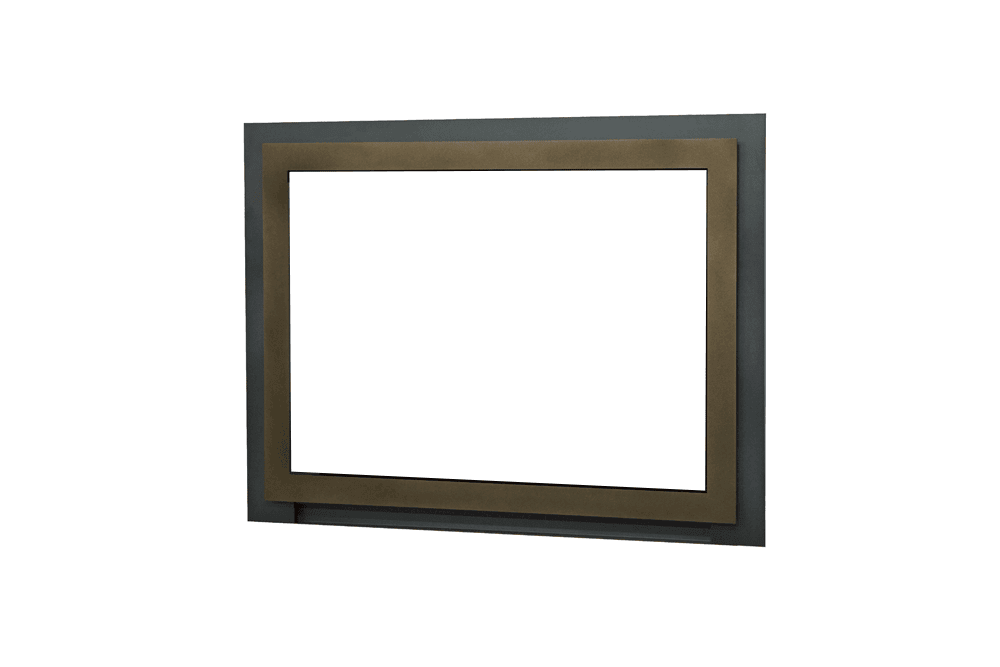

1135TSBEZ Edgemont Front - Bronze with Backing Plate

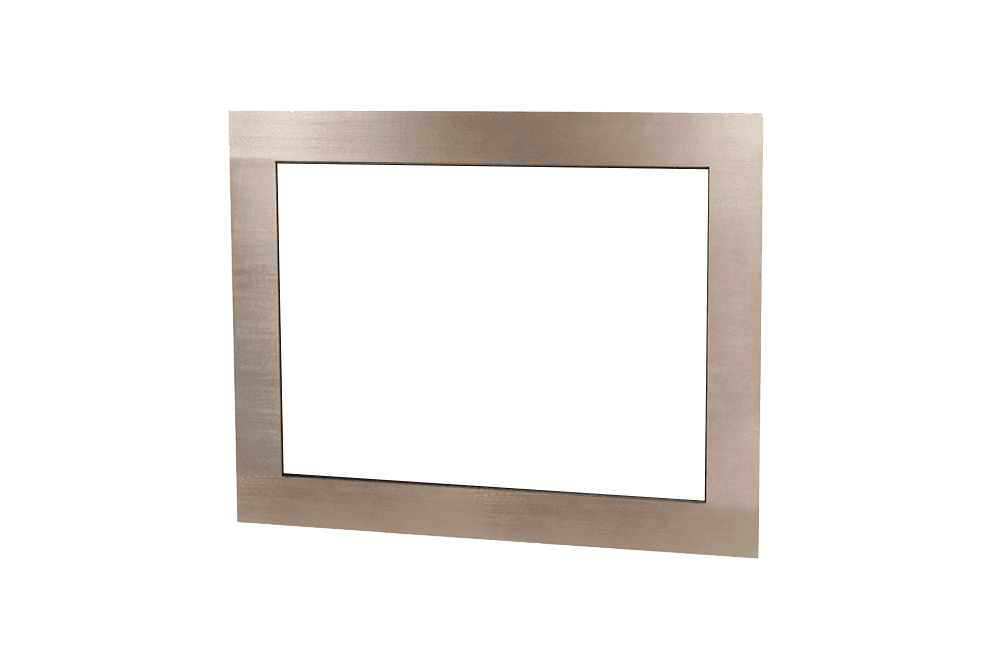

1140FSN2 4" 4-Sided Front - Brushed Nickel (32 ½"h x 41 ½"w)

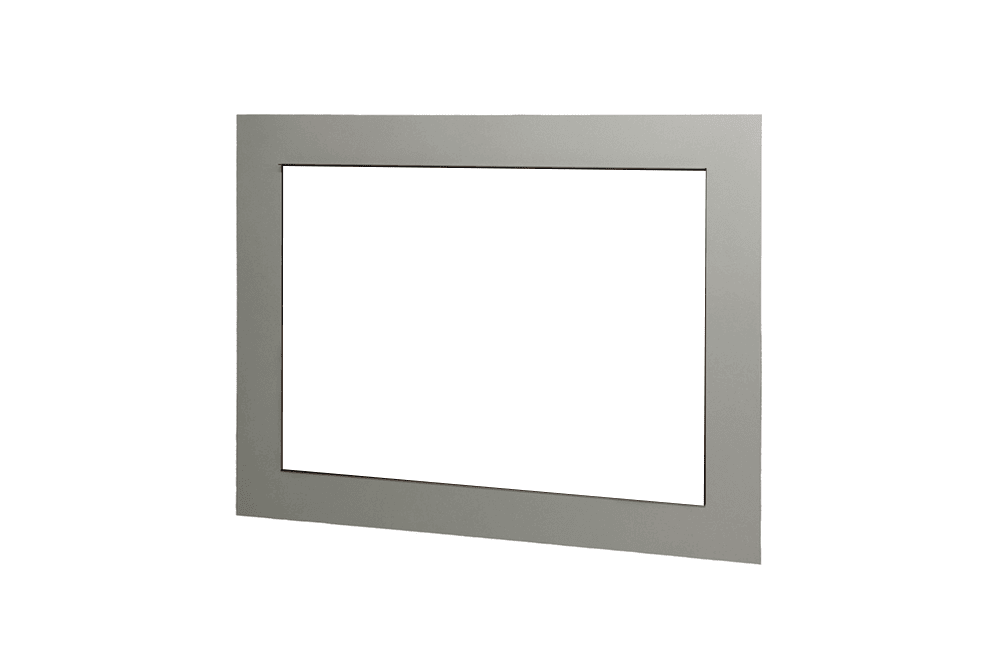

1140FSPN2 4" 4-Sided Front - Painted Nickel (32 ½"h x 41 ½"w)

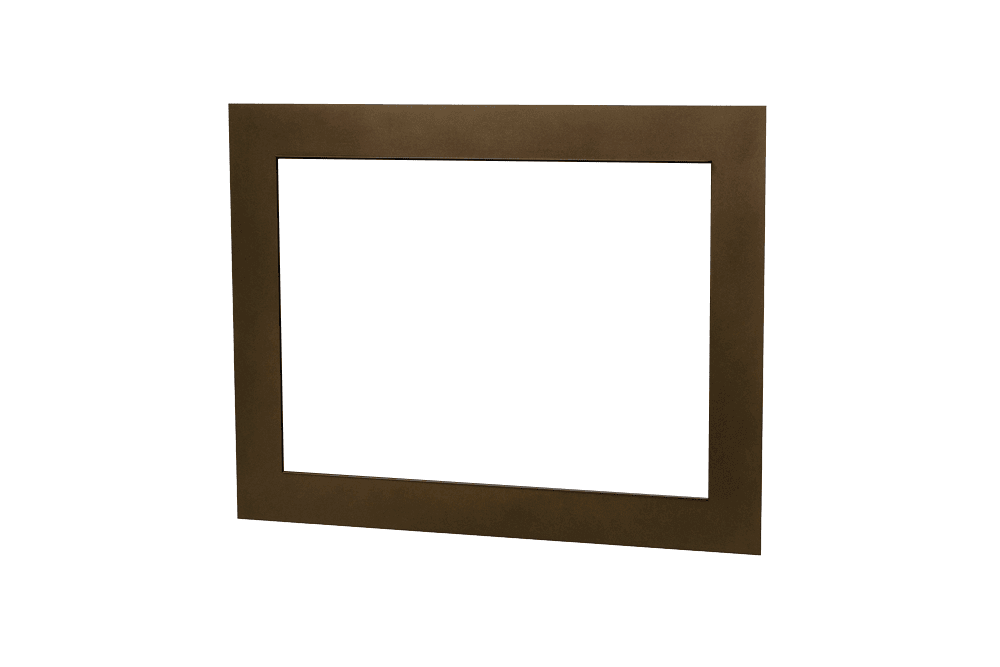

1140FSZ2 4" 4-Sided Front - Bronze (32 ½"h x 41 ½"w)
1145CBP H5 Cast Backing Plate, Barrier & Doors
1147 H5 Cast Mantel Surround

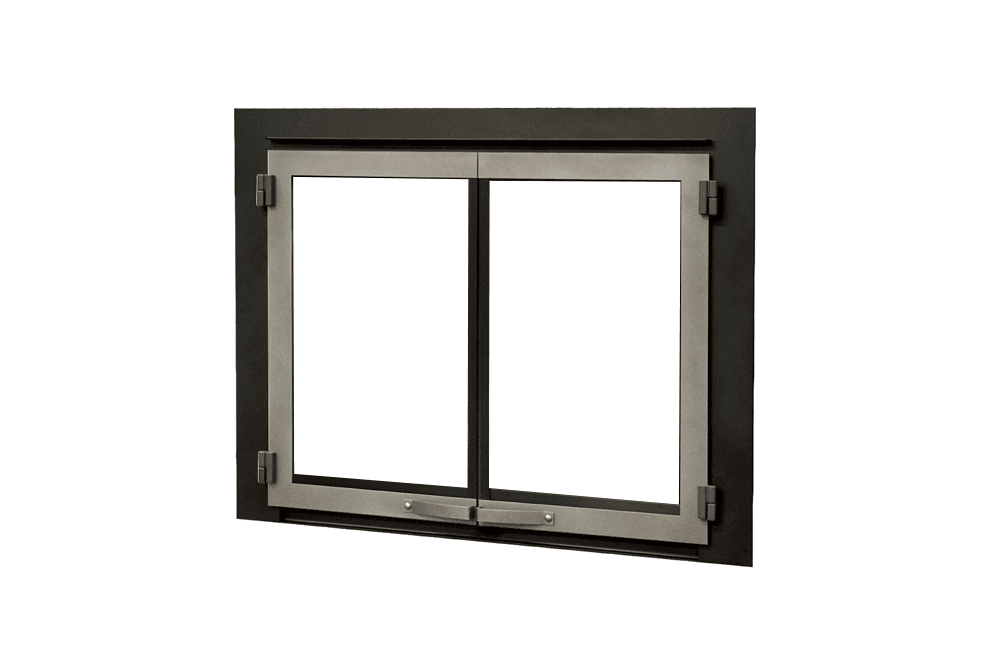

1149EDV Edgemont Double Doors - Vintage Iron with Backing Plate

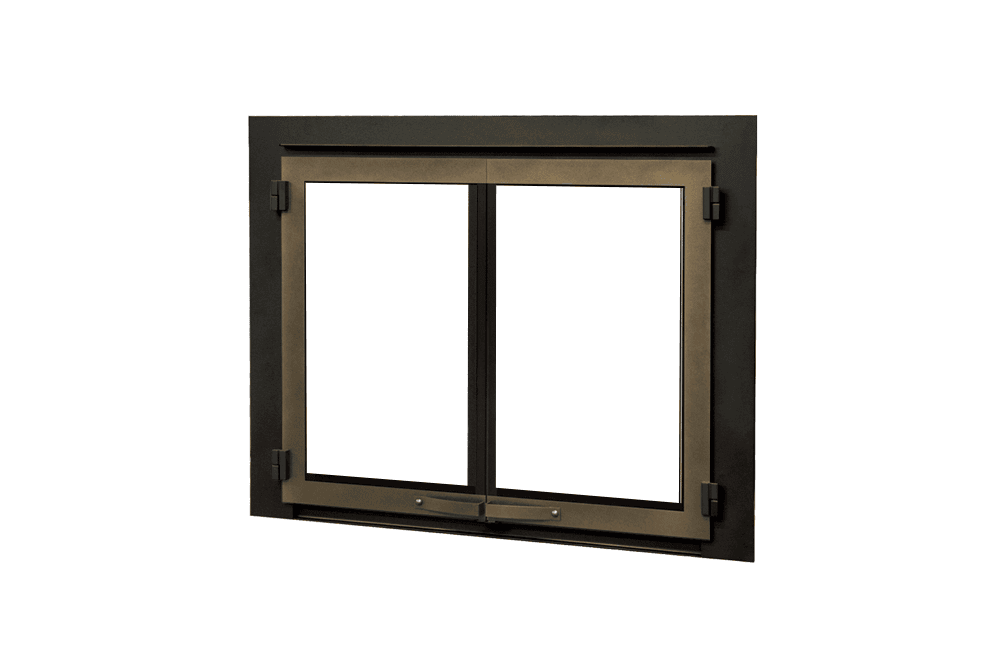

1149EDZ Edgemont Double Doors - Bronze with Backing Plate
1184EHC Edgemont Hammered Front - Copper
1184EHOZ Edgemont Hammered Front - Oiled Bronze
1184EHV Edgemont Hammered Front - Vintage Iron
1506DRK Decorative Rock Kit

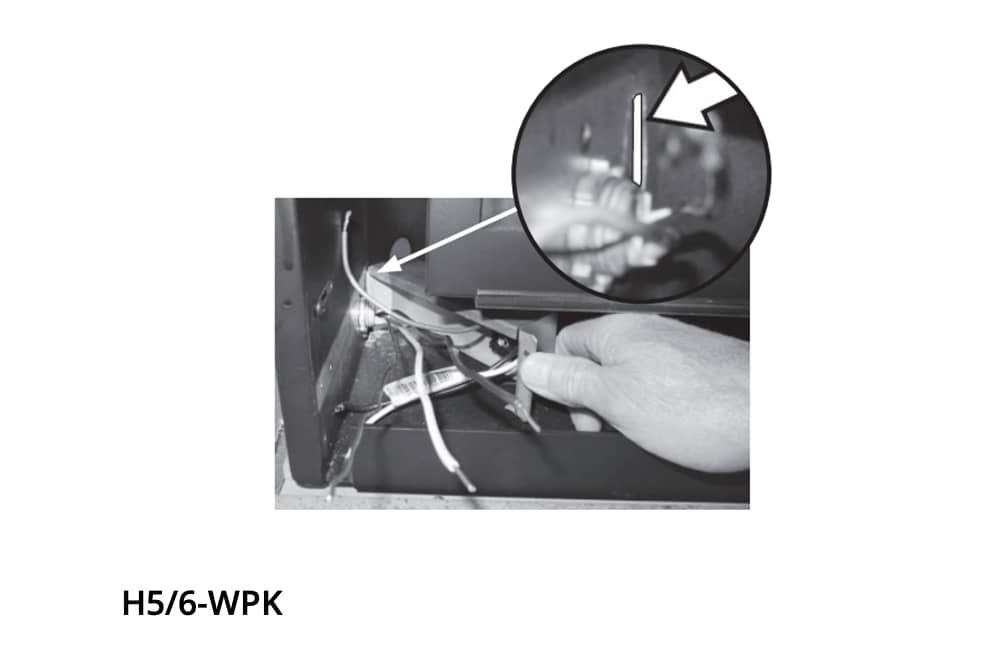

H5/6-WPK Power Kit J Box for H5 and H6
Valor Fireplaces Safety Information

FIREPLACE SAFETY

A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
