Portrait Gas Insert

The Valor Portrait Series offers a diverse collection of adaptive fireplace fronts complementing both traditional and contemporary room settings.

Hand-crafted castings, high-quality metals and artisan patina finishes are just a few of the many features that define the Portrait Series collection. Fire bed options including traditional Log, Coal, Rocks, and new Driftwood radiate steady warmth that satisfy any home comfort needs.


Model Max Input Min Input Max Output Energuide
530INI 20,500 6,500 13,223 63.60%
530IPI 19,000 12,500 13,100 66.00%
Gas Type Natural Gas (NG) or Propane (LPG)
Remote Control Quick Guide | Manual
Viewing Area 16 ¾" w x 15 ⅜" h = 258"²
Optional Wall Control RBWSK or 1265WSK
Additional Features Co-Linear venting | Tapered fire box | Slim engine design
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
Valor Plus Remote Control System


The ValorStat Plus remote gives you full control of your fireplace. Select, adjust and program your desired temperature during waking hours, and set timers to turn off your fireplace after you go to bed.

Remote Controls

Options And Features

Fuel Beds

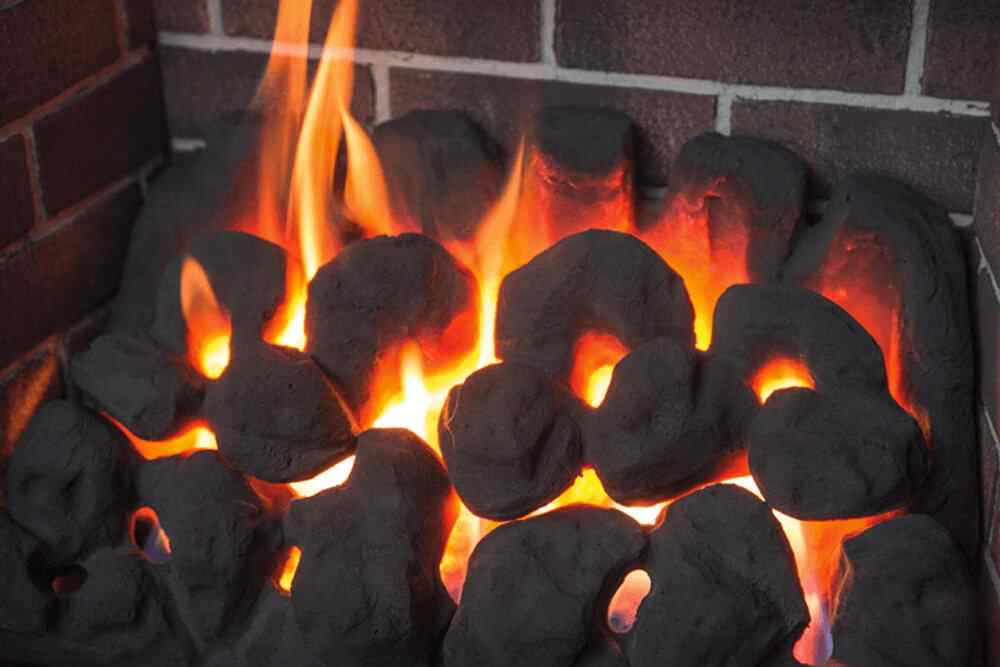

Portrait Gas Insert Coal Set
530CSK | Coals
View Flame Video

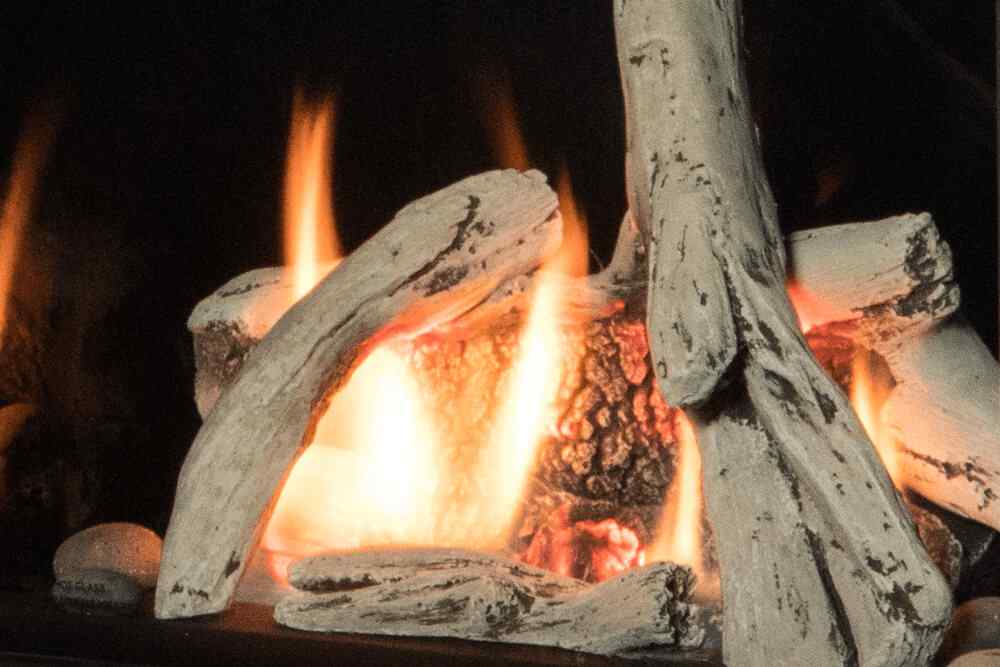

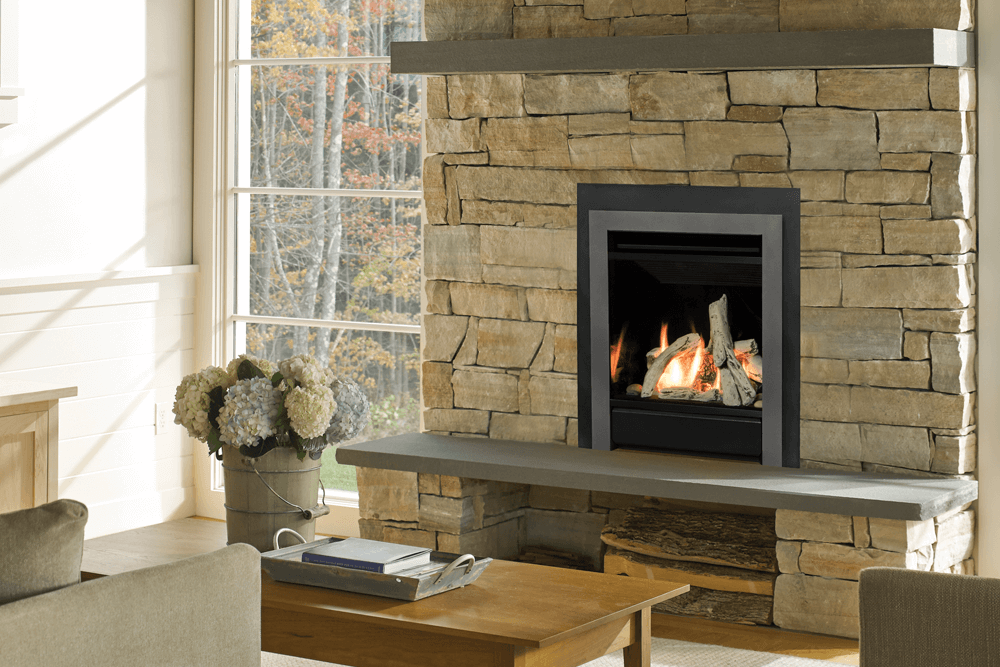

Portrait Gas Insert Driftwood
530DWK | Driftwood
View Flame Video

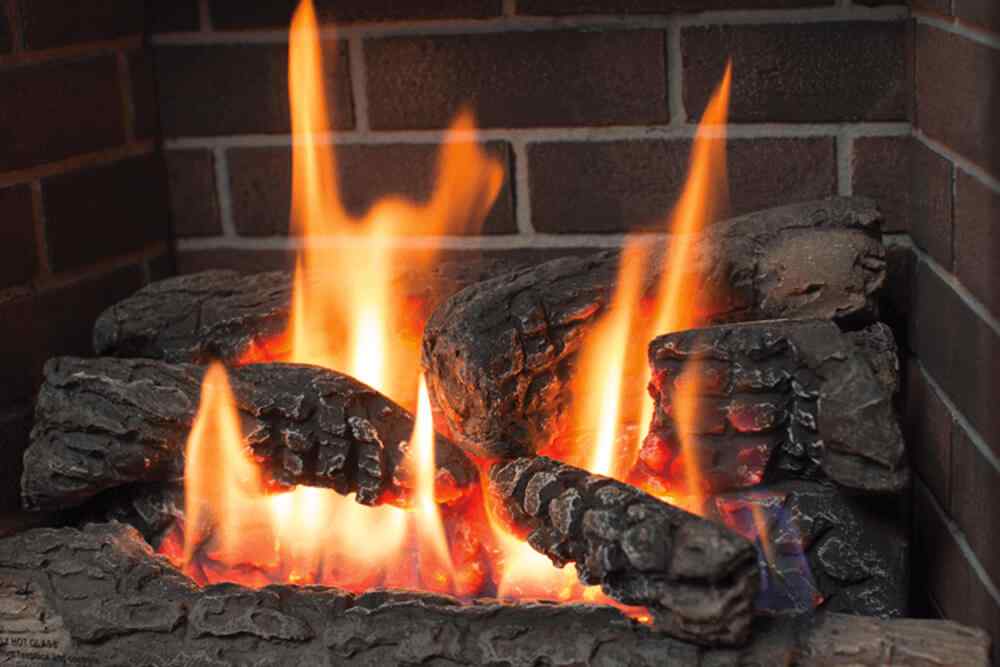

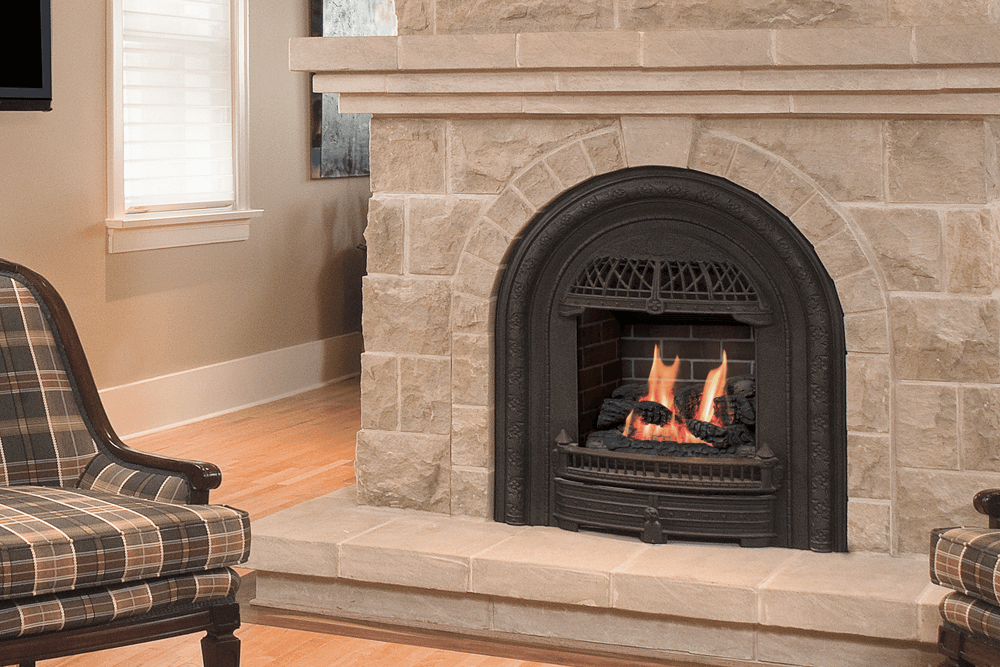

Valor Portrait Gas Fireplace Log Set
530LSK | Logs
View Flame Video

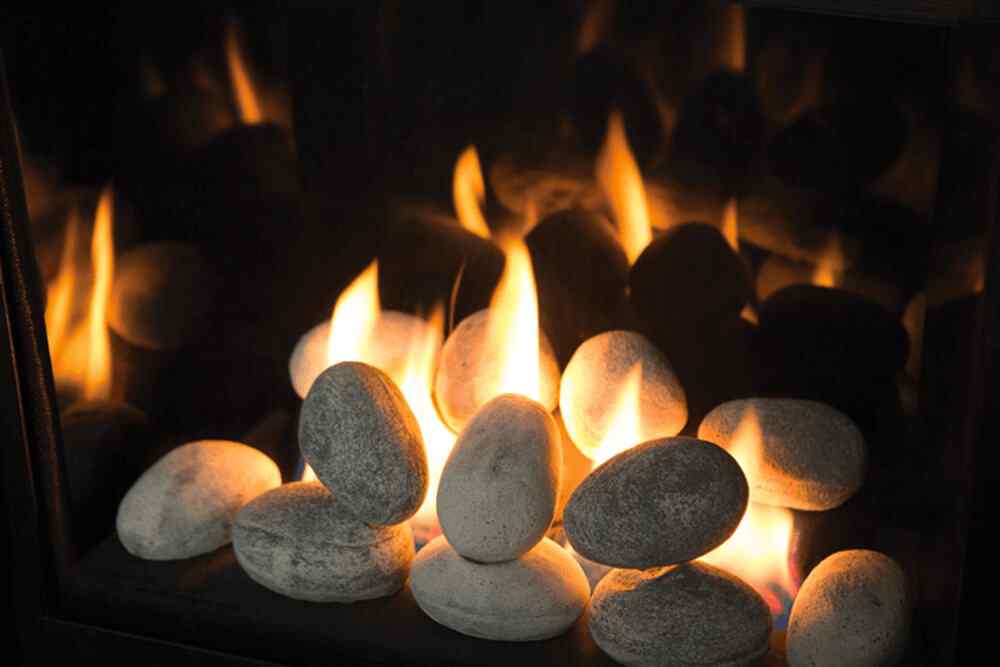

Portrait Gas Insert Rock Set
530RSK | Rocks
View Flame Video

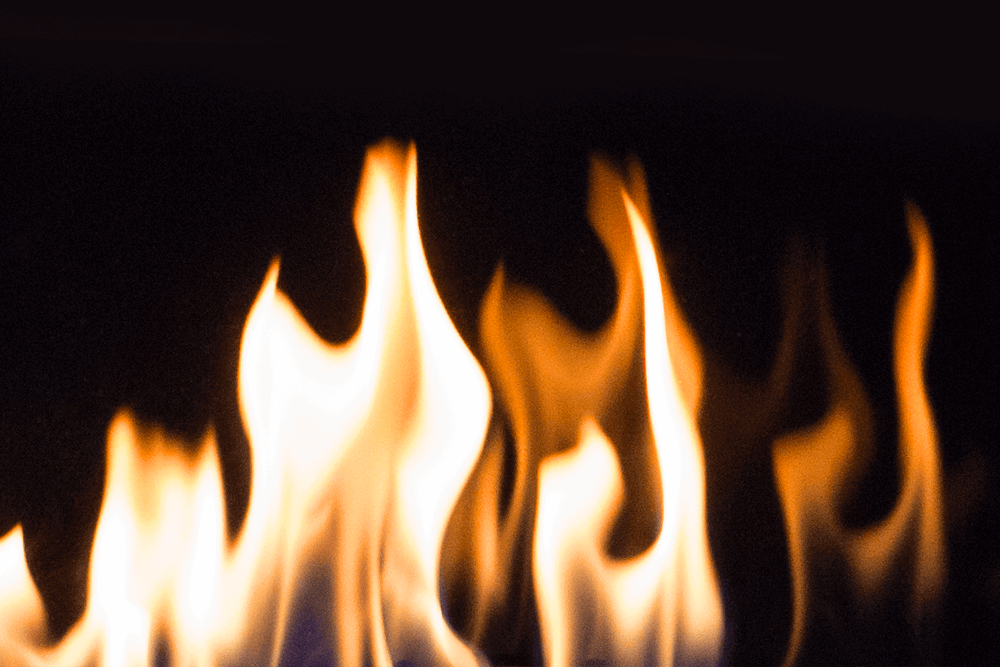

Gas Fireplace Reflective Black Glass Liner
Reflective Glass
View Now
Gas Fireplace Fluted Black Liner
Fluted Black
View Now

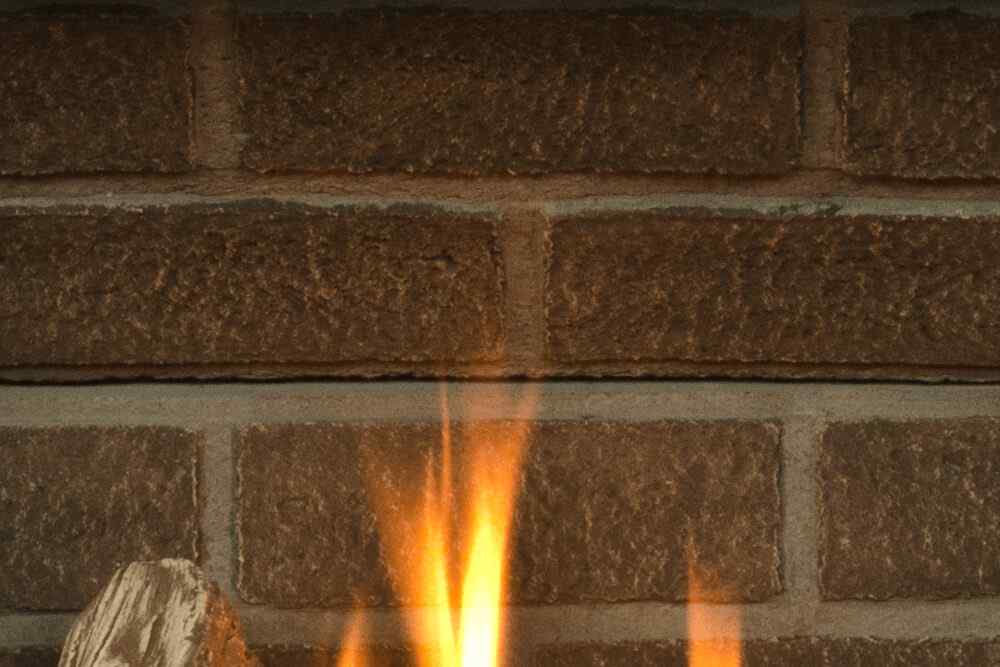

Portrait Gas Insert Red Brick Liner
Red Brick
View Now
Engine Options
530INI/IPI Portrait Owner's Manual - NG or LPG (requires fuel bed & liner)
530INI/IPI Portrait Installation Manual - NG or LPG (requires fuel bed & liner)
Insert Compatible Fronts

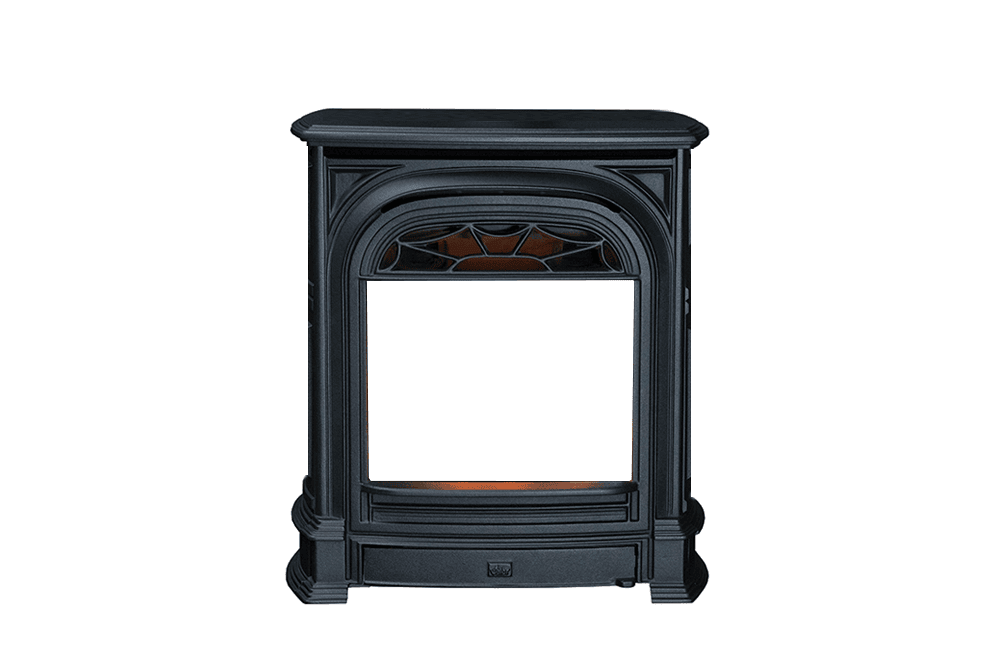

536CXBI President™ Insert Front (must add 582/583/3336) (21 ¾"w x 27-7/8"h)

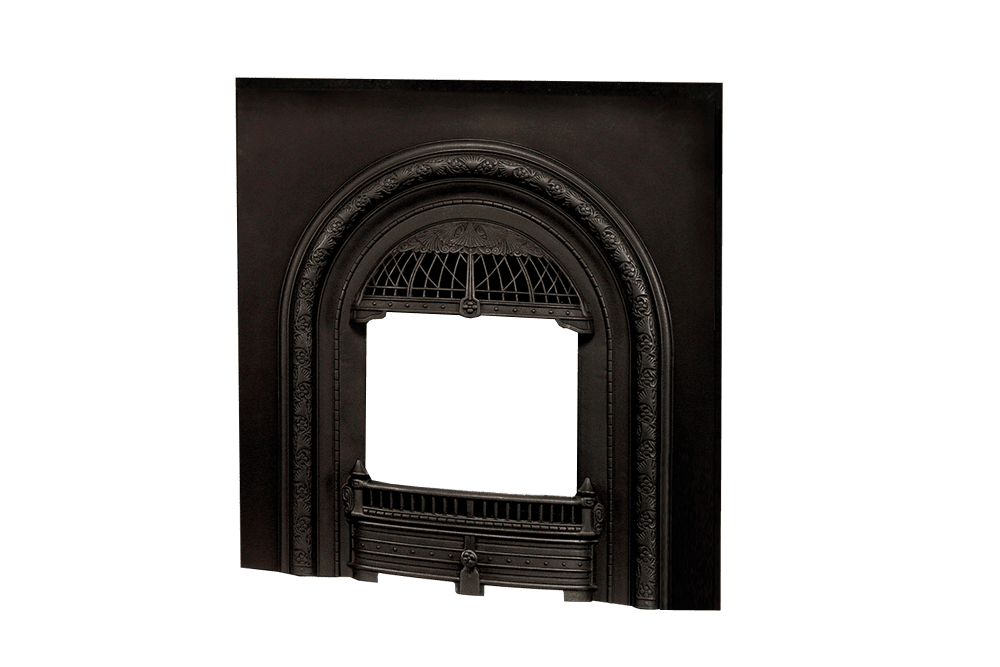

539AFBv2 Windsor Arch Zero Clearance Front - Black (with backing plate) (39"w x 38"h)

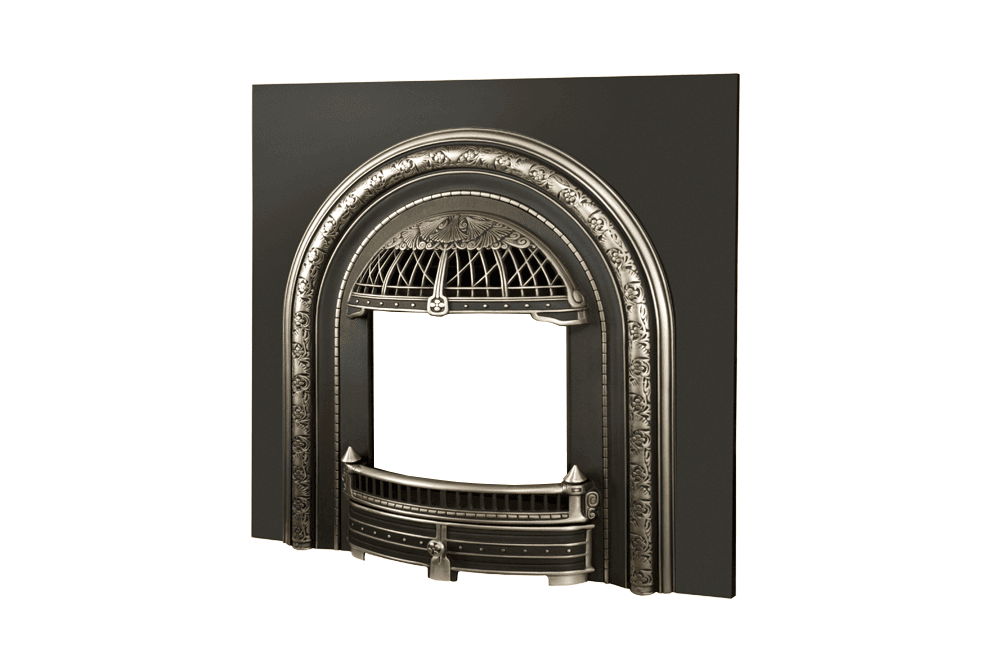

539AFPv2 Windsor Arch Zero Clearance Front - Chrome (with backing plate) (39"w x 38"h)

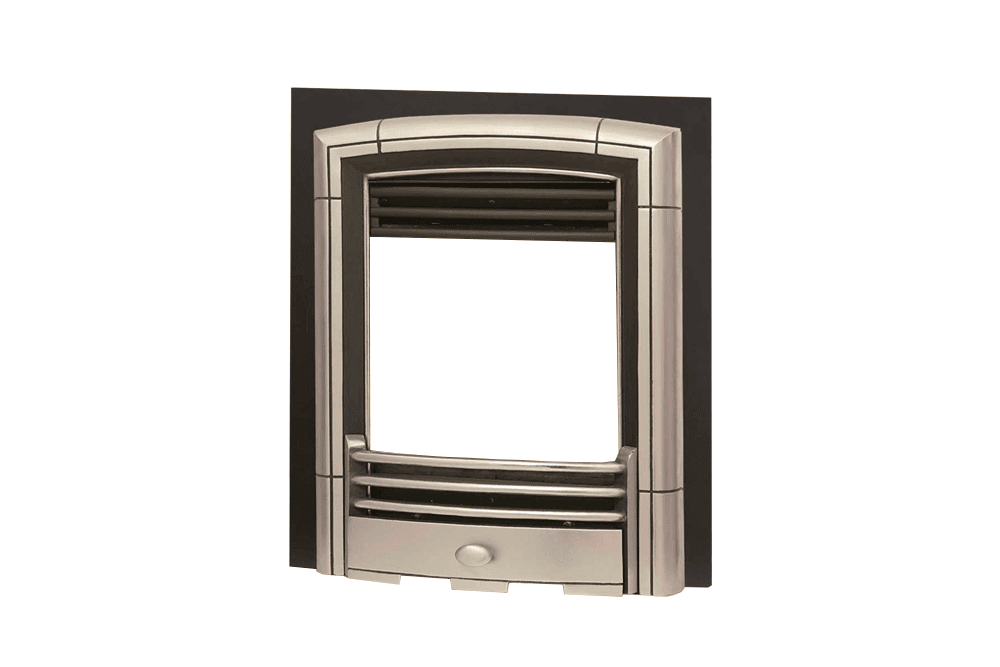

541BPC Bolero Front (23 ¼"w x 29"h)

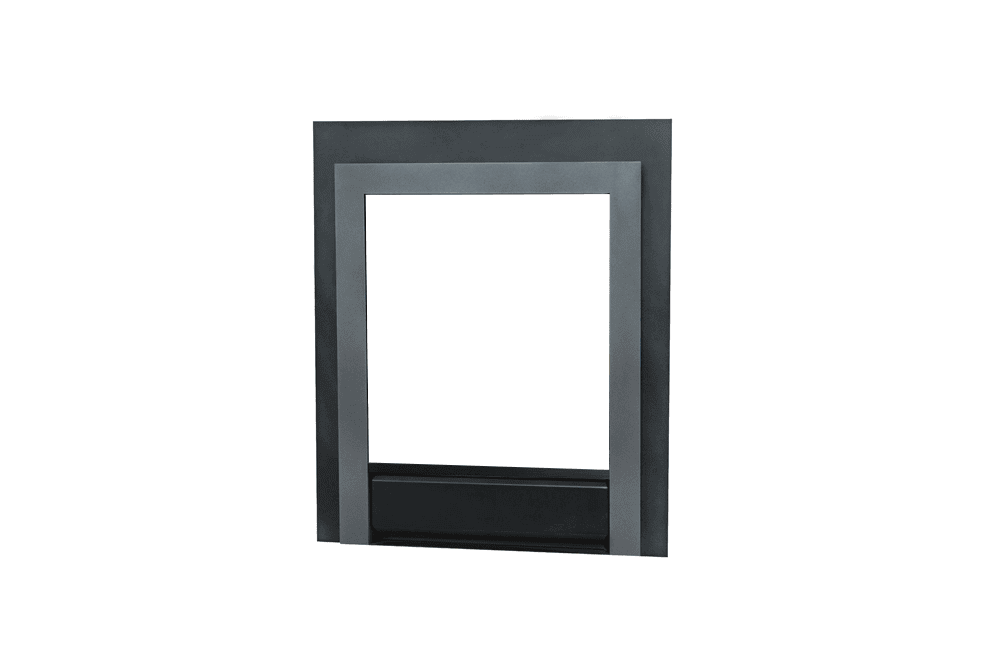

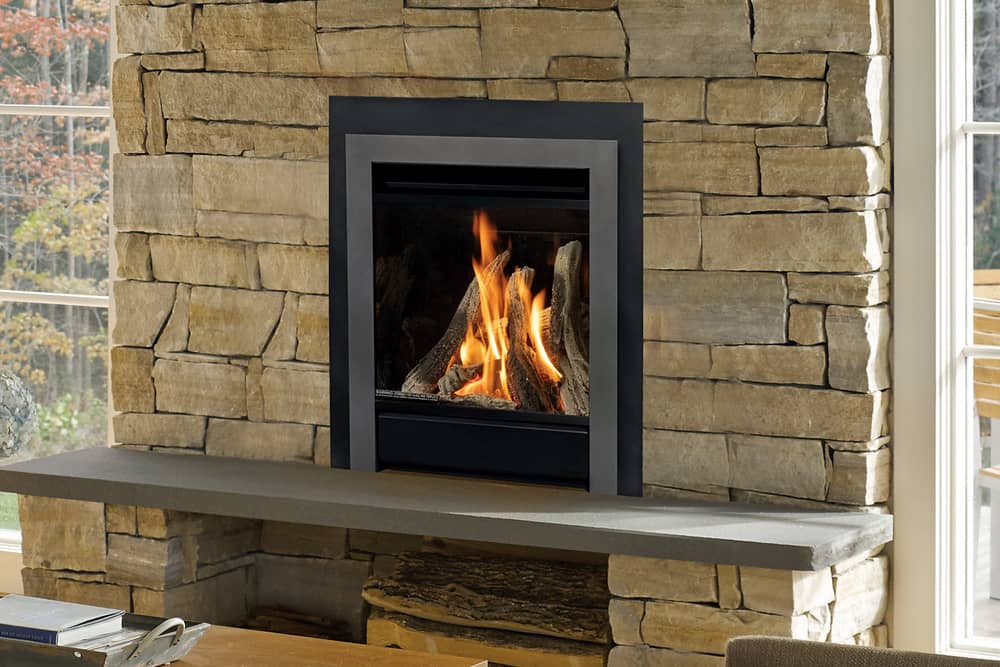

545CFV Clearview Insert Front (26"w x 31"h)

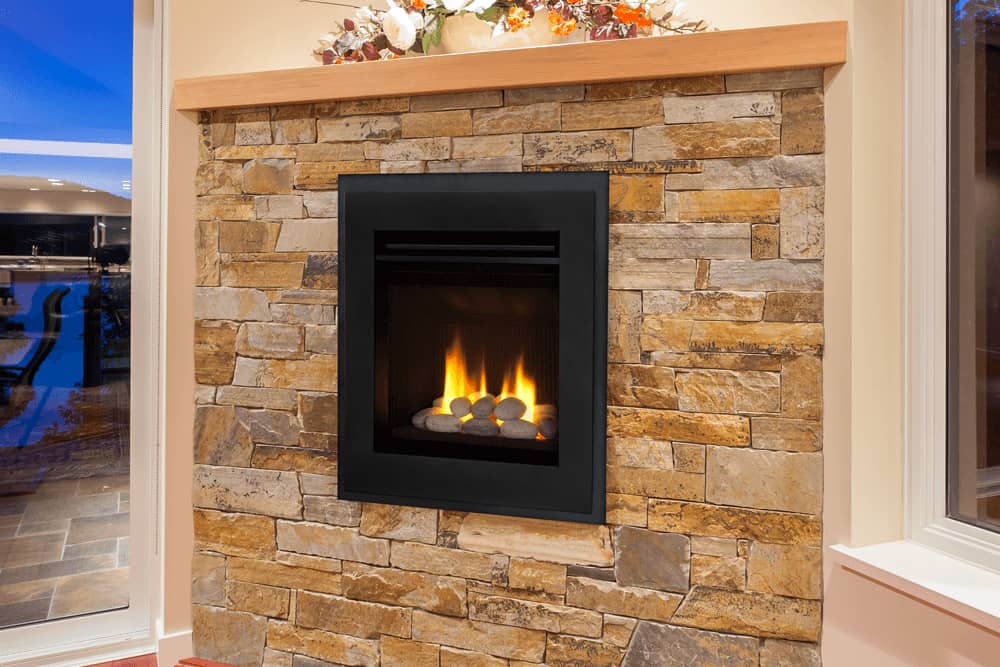

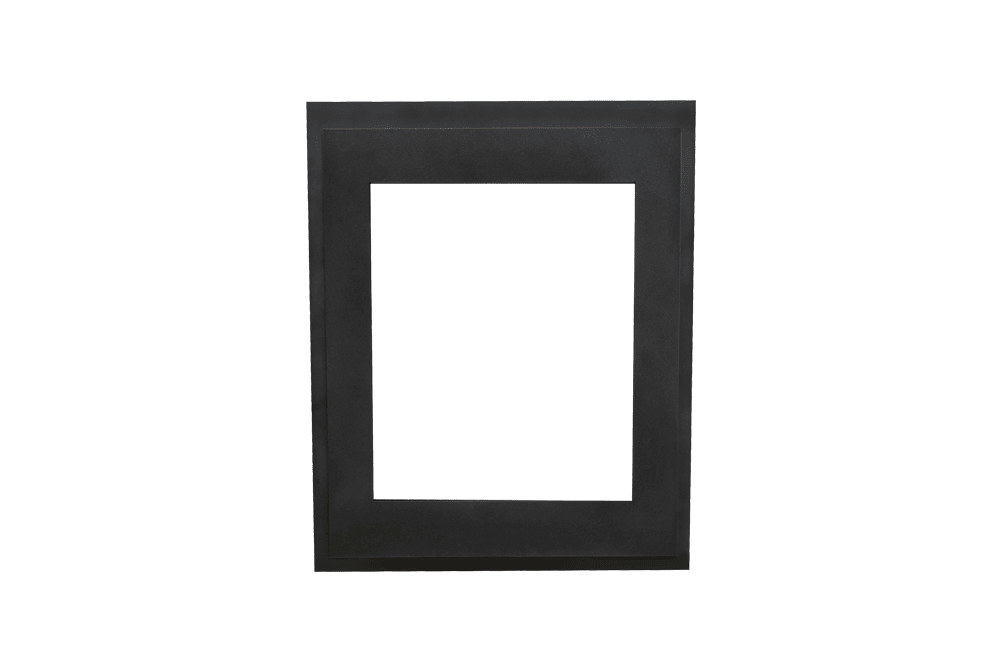

546LFB Ledgeview Insert Front - Black (26"w x 32 ½"h)

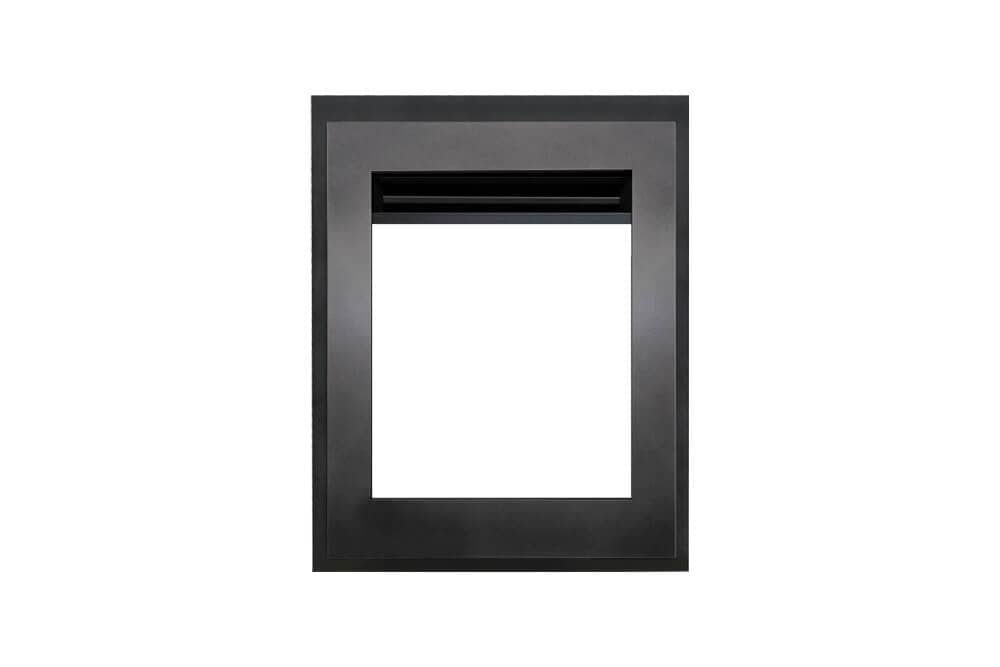

546LFPW Ledgeview Insert Front - Pewter (26"w x 32 ½"h)

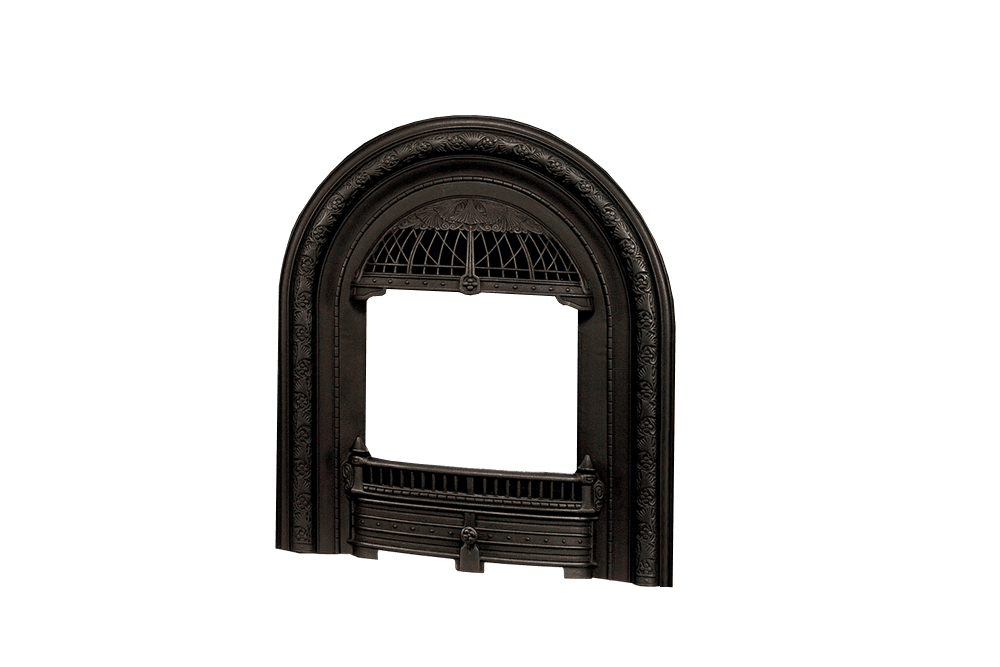

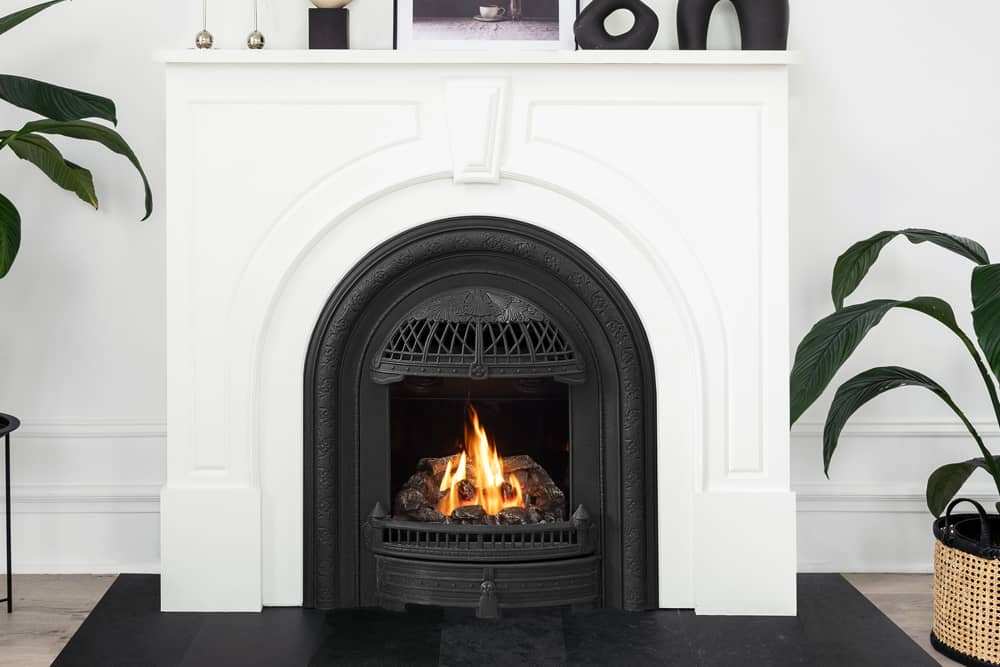

549AFBv2 Windsor Arch Insert Front - Black (no backing plate) (31"w x 34"h)

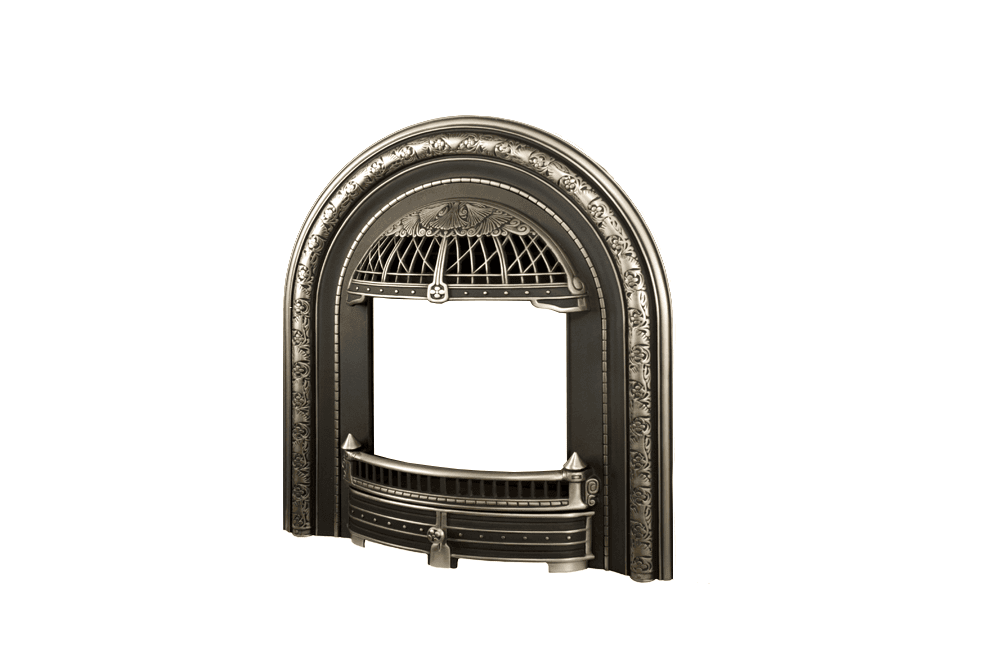

549AFPv2 Windsor Arch Insert Front - Chrome (no backing plate) (31"w x 34"h)

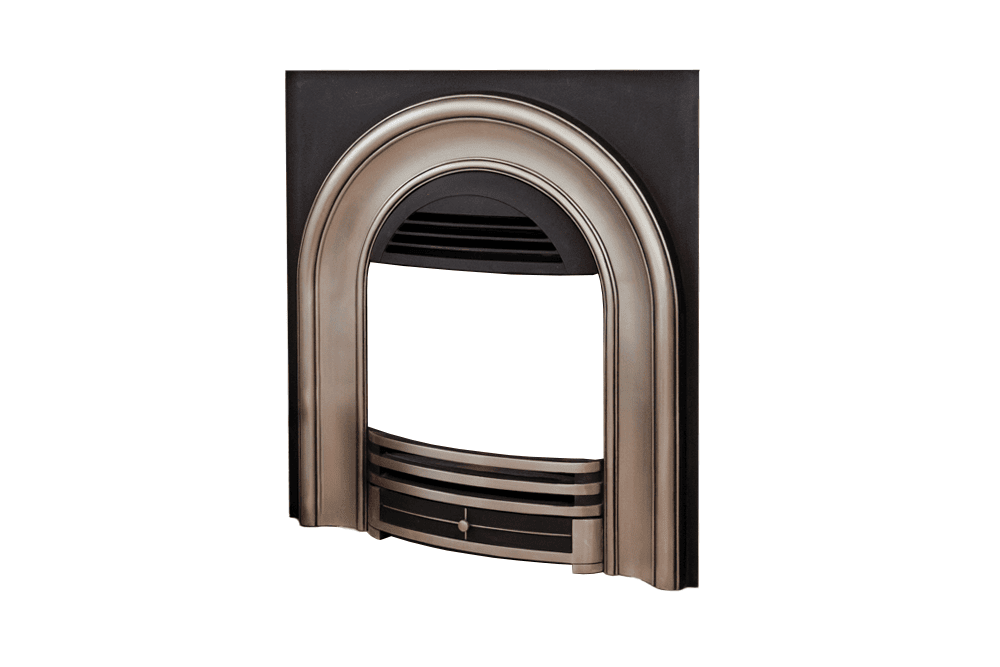

550CPAv2 Classic Arch Front - Brushed Nickel (39"w x 38"h)

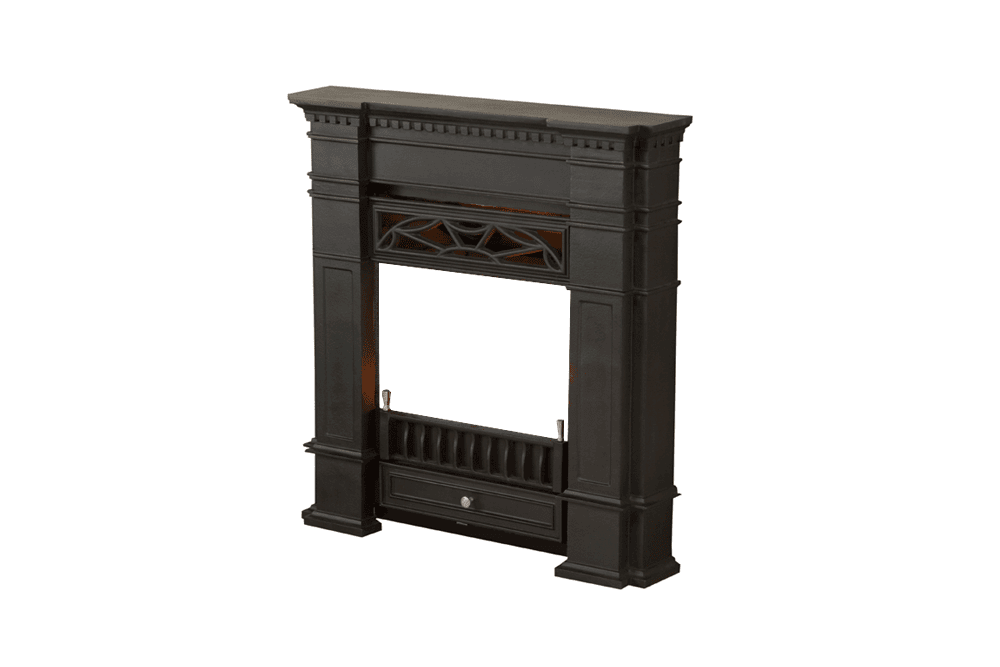

563SCB Senator Front (26 ⅛"w x 27 ½"h)
Optional Accessories

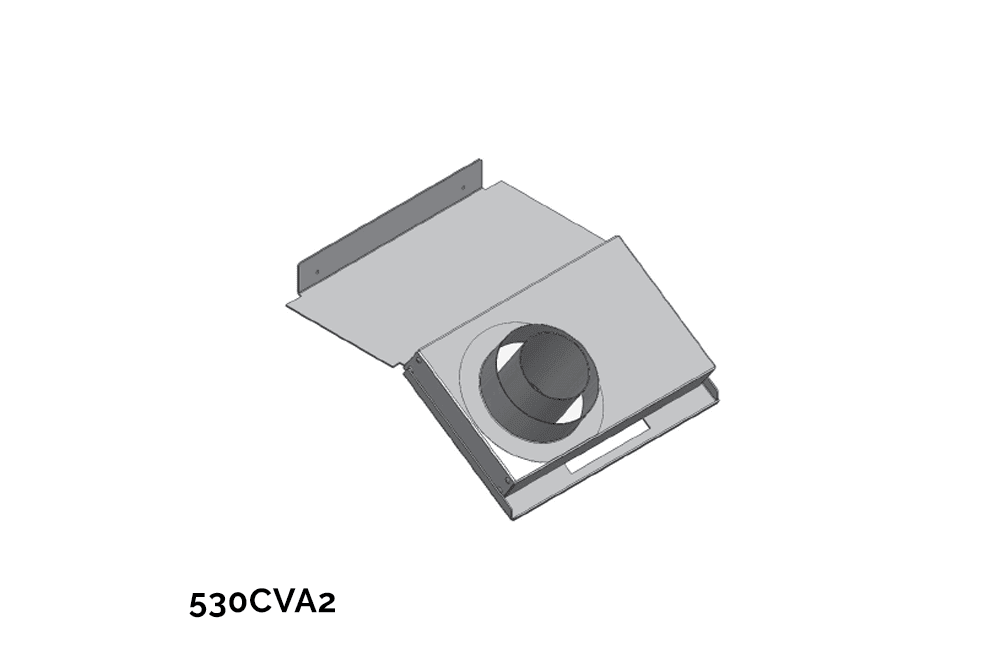

530CVA2 Co-Axial Flex Vent Adaptor

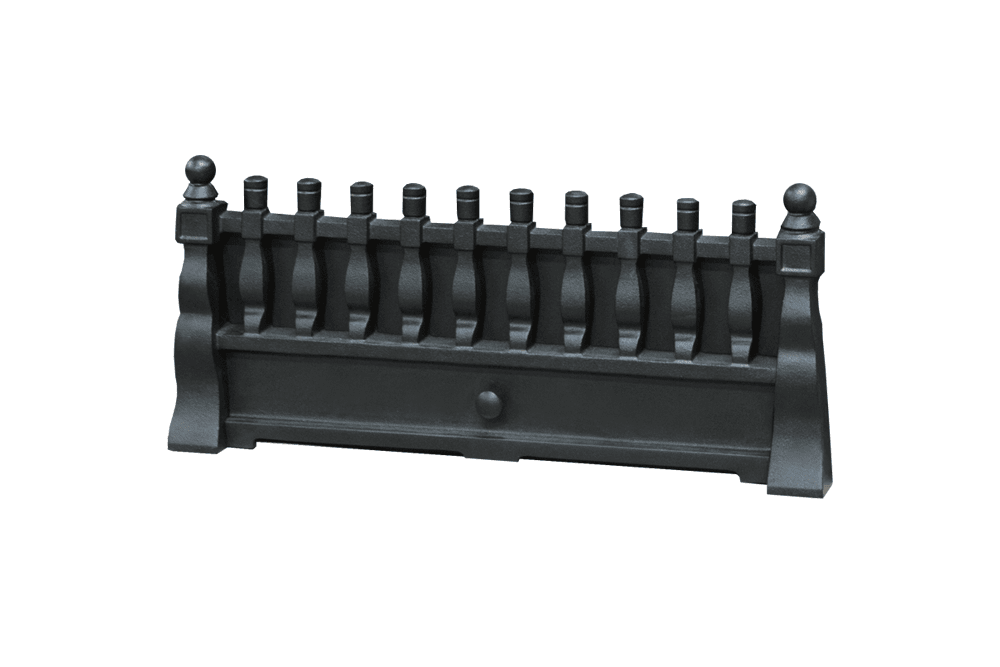

545TFB Traditional Cast Iron Fret - Black (545CFV only)

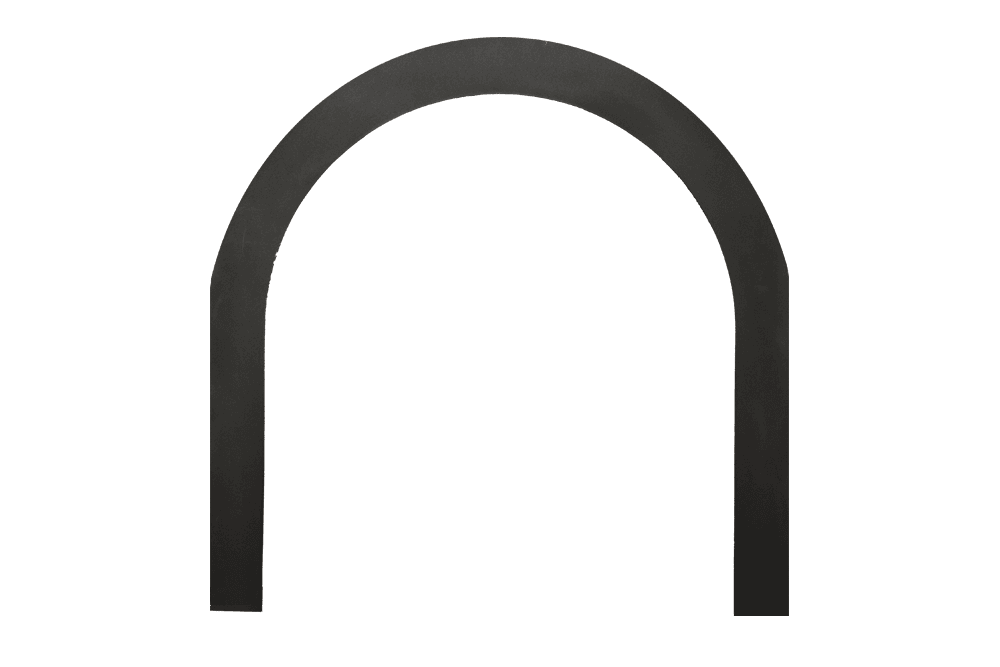

549APB Arch Backing Plate - Black (549AFB/Pv2 only)
555CFK Circulating Fan Kit

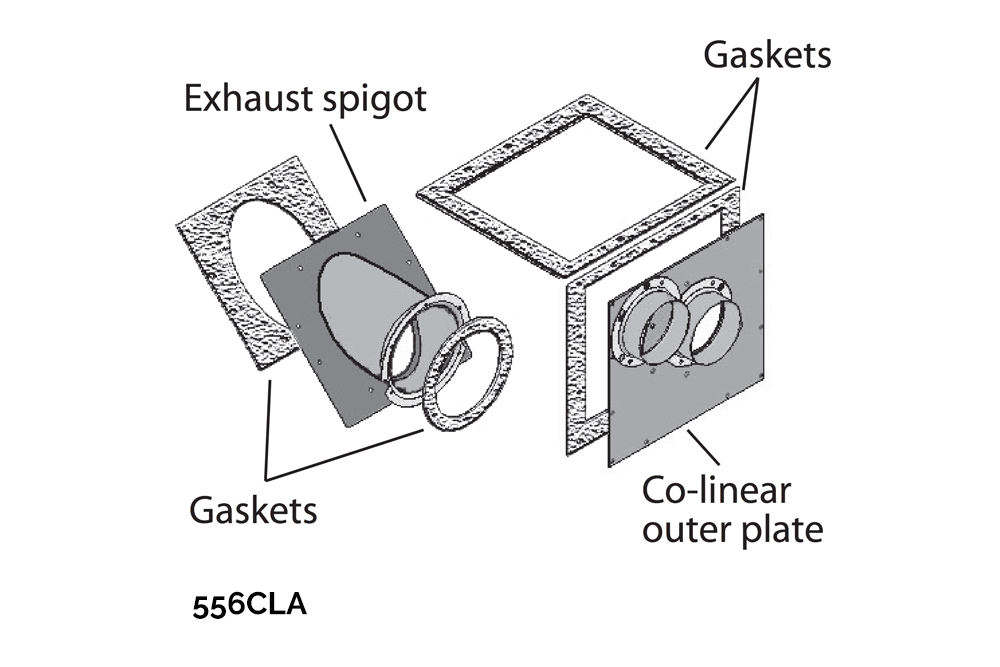

556CLA Co-Linear Adapter (insert applications only)
559CLT Co-Linear Terminal
559SFK Square Flashing Kit (for use with 559CLT)

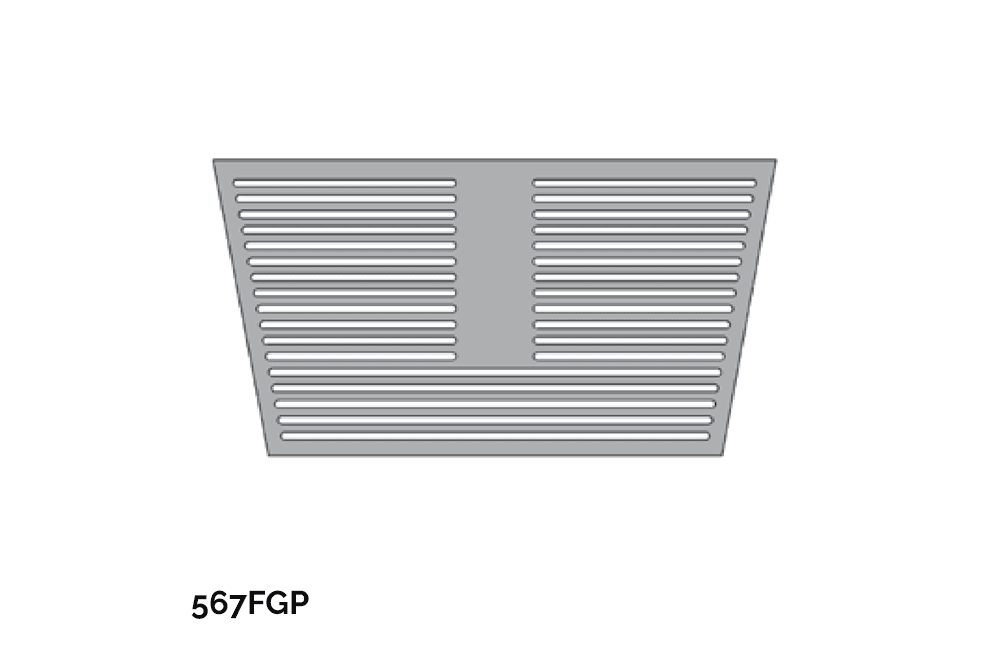

567FGP Firebox Grille Panel
580RGL Reflective Glass Liner
582CPB Closure Plate - Black - 26" w x 31" h (for use with 536/541/563)
583CPB Closure Plate - Black - 30" w x 33" h (for use with 536/541/545/563)
590FVK2 Flex Vent Kit (for use with 530CVA2)
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
658NSFK New Siding Flashing Kit
658TG Terminal Guard
720SWK Co-Linear Side Wall Kit

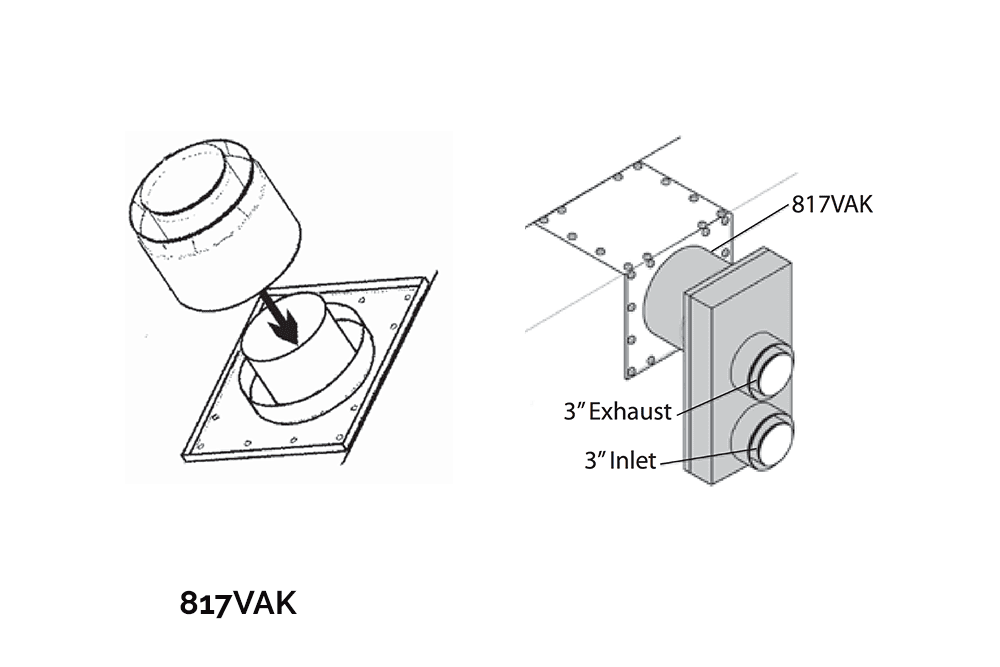

817VAK Vent Adapter Kit
845TG Terminal Guard
1265WSK Wall Switch Kit

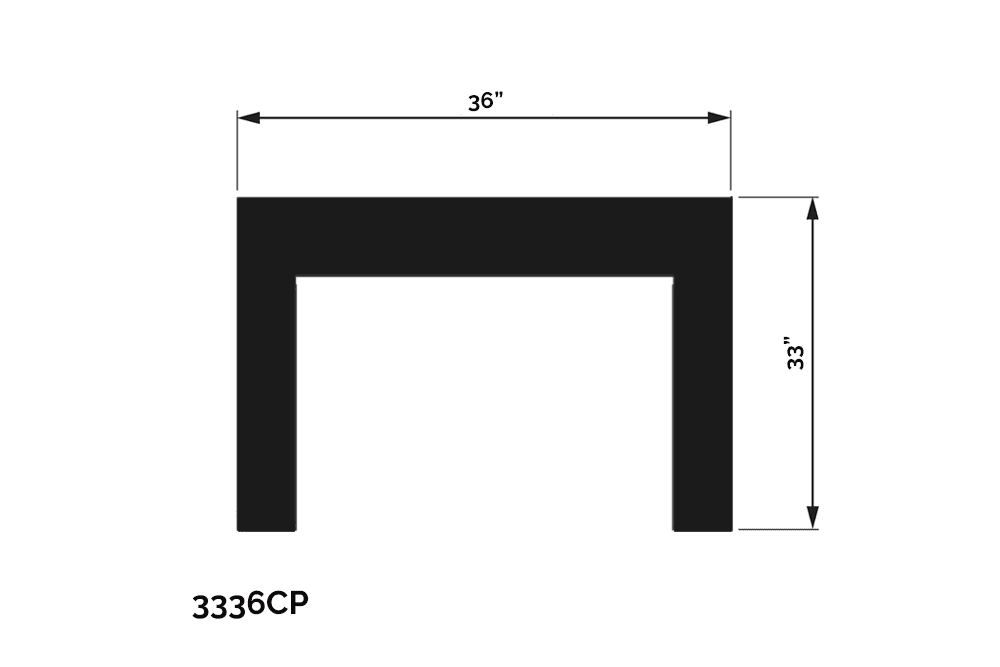

3336CP Closure Plate - Black (for use with 536CXBI)
DVA5BV Direct Vent Adapter to 5" B-Vent
GV60BRK 1-Hour Shutdown Kit

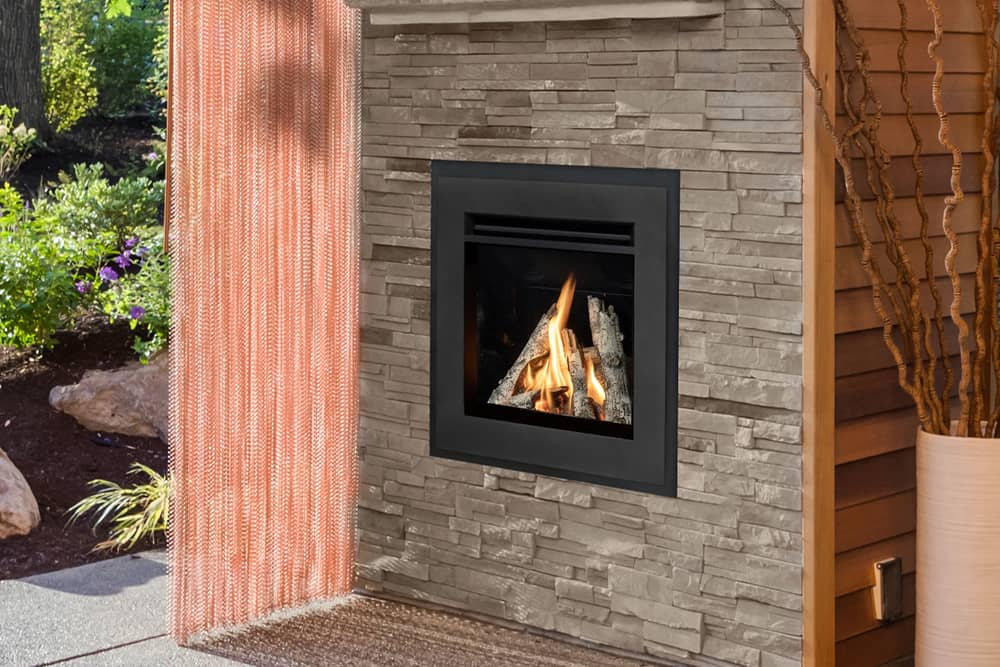

GV60CKO Outdoor Conversion Kit
GV60NTK Non-Thermostat Handset
GV60PAK Power Adapter Kit
RBWSK Remote Battery & Wall Swith Kit


Additional Manuals or Options
ValorStat Plus ValorStat Plus Remote Manual and Quick Guide
Specifications 530 Insert
530INI-IPI Installation Checklist
536CXBI President Insert Front
Cast Arches Windsor & Classic Arch
541BPC Bolero Front
545CFV Clearview Insert Front
546LF Ledgeview Insert Front
549 Windsor Arch Front
562BRK Bedrom Remote (Canada only)
563SCB Senator Front
1265WSK Wall Switch
RBWSK Remote Battery & Wall Switch
Gas Conversion Kit
530 NGK/NPK Portrait Gas Conversion Kit
Archived Models & Accessories

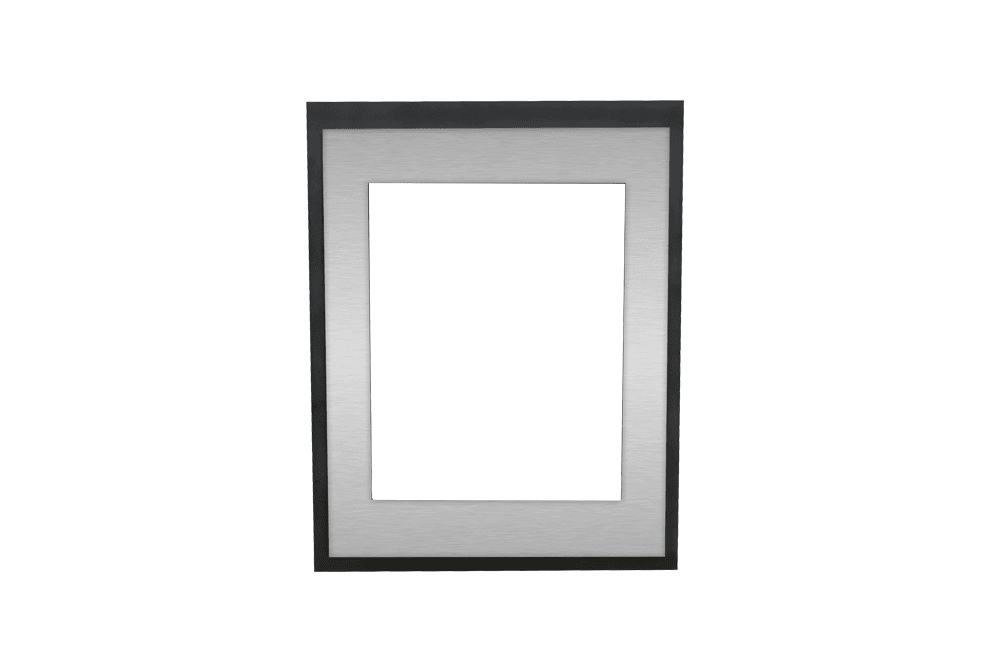

546LFN Ledgeview Insert Front - Brushed Nickel (26"w x 32 ½"h)

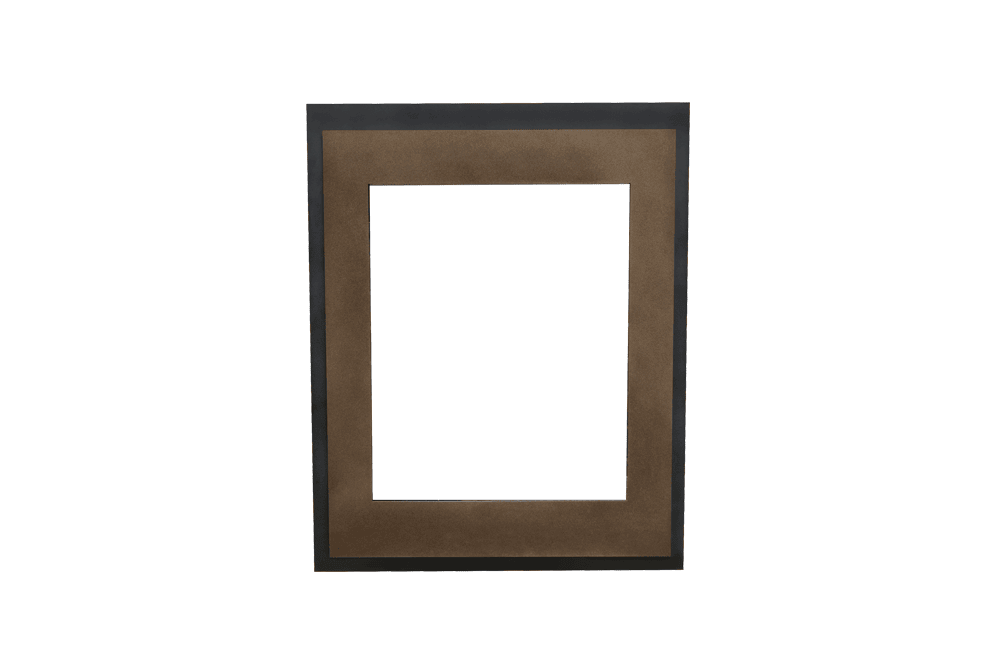

546LFZ Ledgeview Insert Front - Bronze (26"w x 32 ½"h)
Valor Fireplaces Safety Information


A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
