Home > Gas Stoves > Madrona Gas Stove

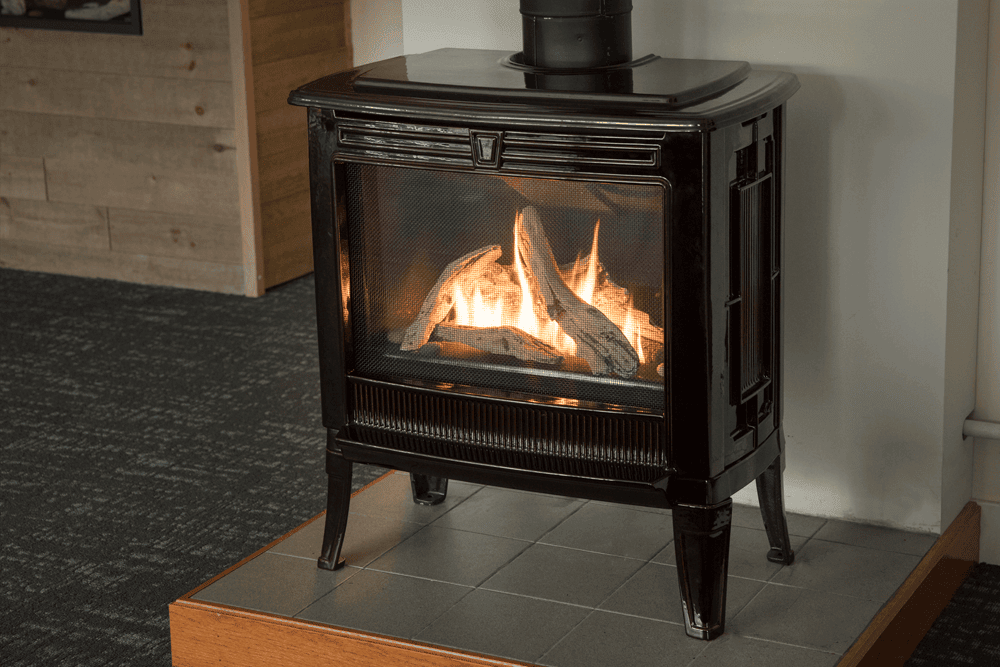

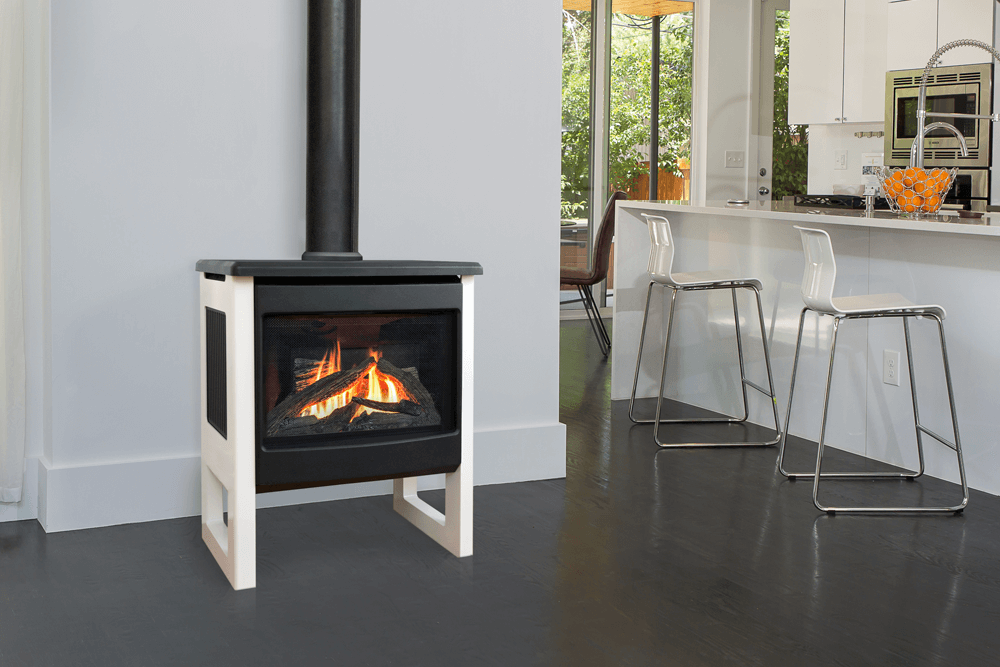

Madrona Gas Stove

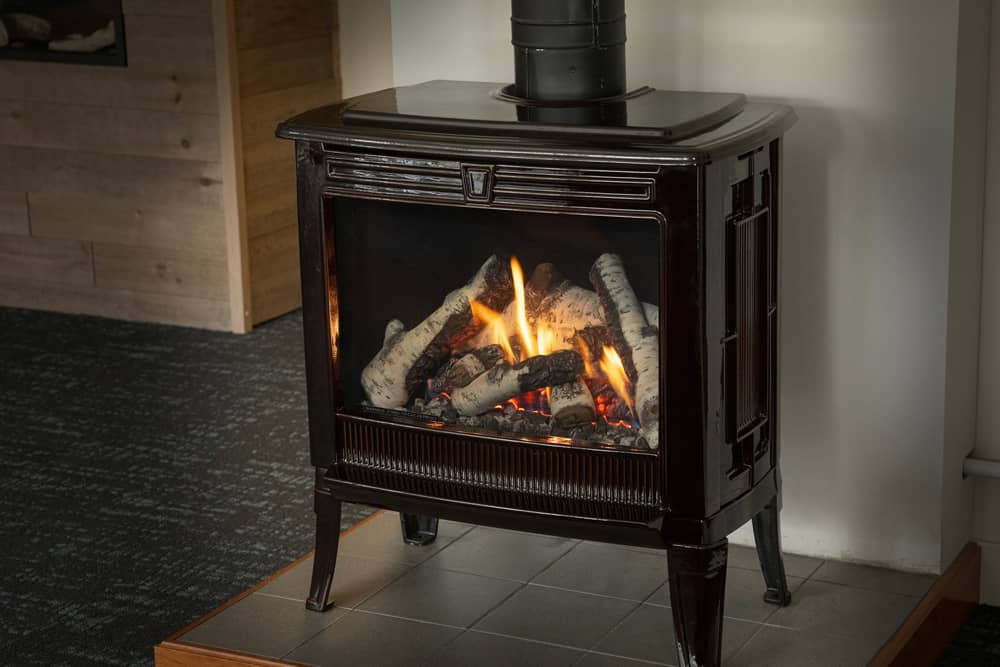

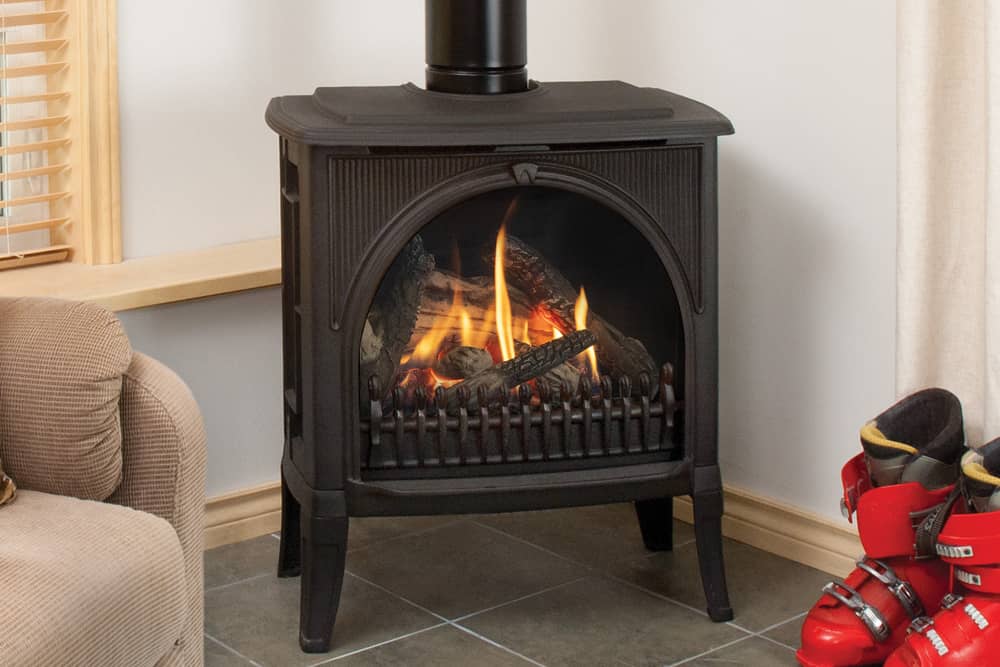

Available in arched, square, and modern styles, the Madrona projects warmth and ambiance in any living space. In addition to the clean lines and cast-iron craftsmanship, this functional unit provides energy-efficient, radiant heating throughout your home.

The Madrona supplies a constant flow of radiant heat and naturally convected warm air. Continuously warming objects in its path, its radiant heat will satisfy your comfort needs while using 25% less overall energy compared to forced air systems.


Model Max Input Min Input Max Output Energuide
MF28JN 26,000 6,500 19,223 70.00%
MF28JP 26,000 14,500 19,123 70.00%
Gas Type Natural Gas (NG) or Propane (LPG)
Remote Control Quick Guide | Manual

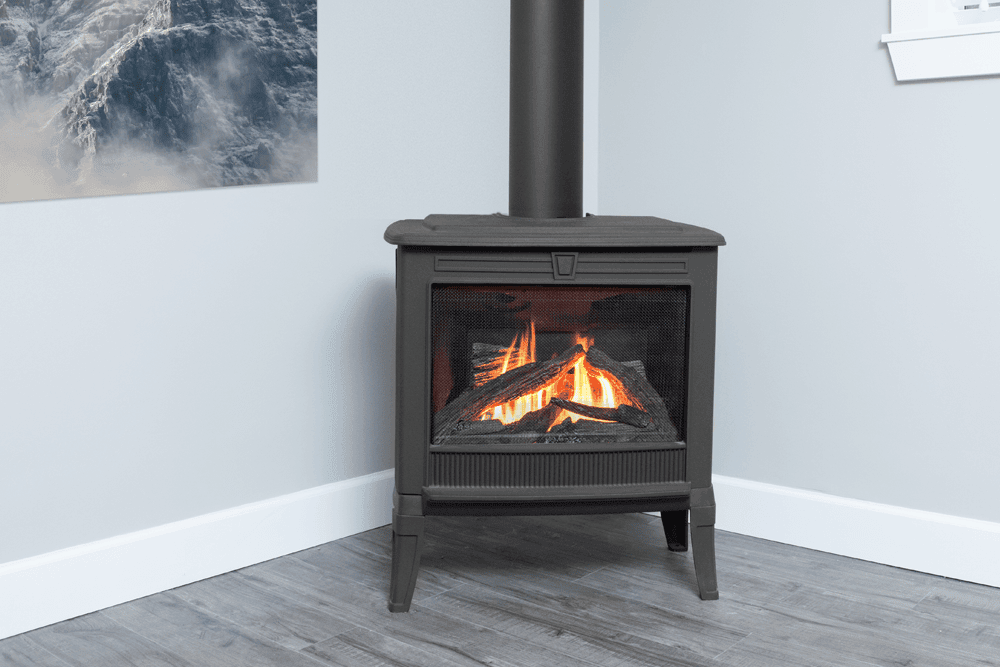

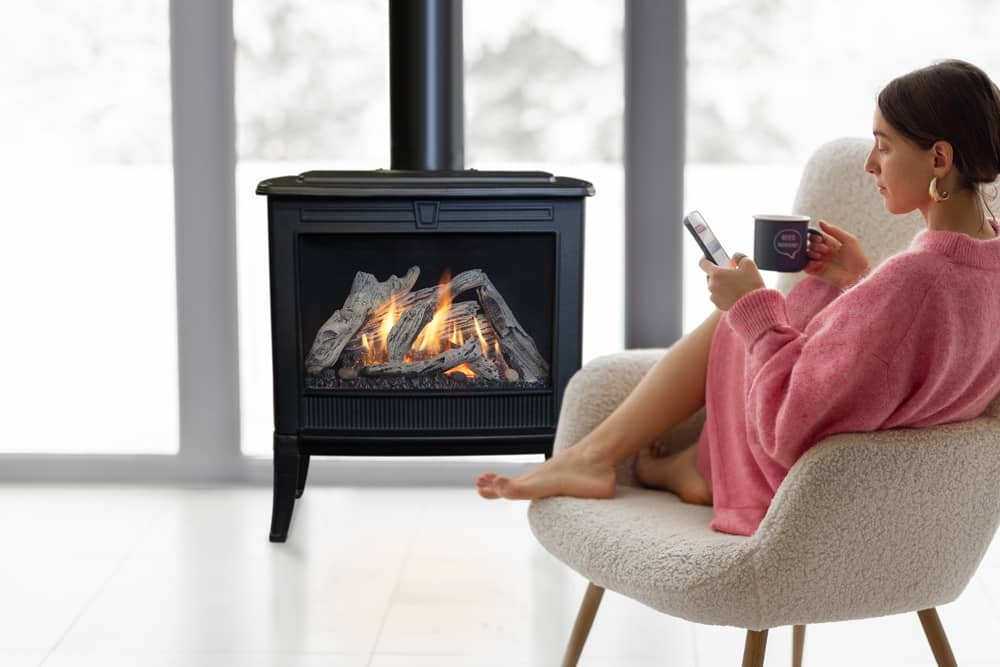

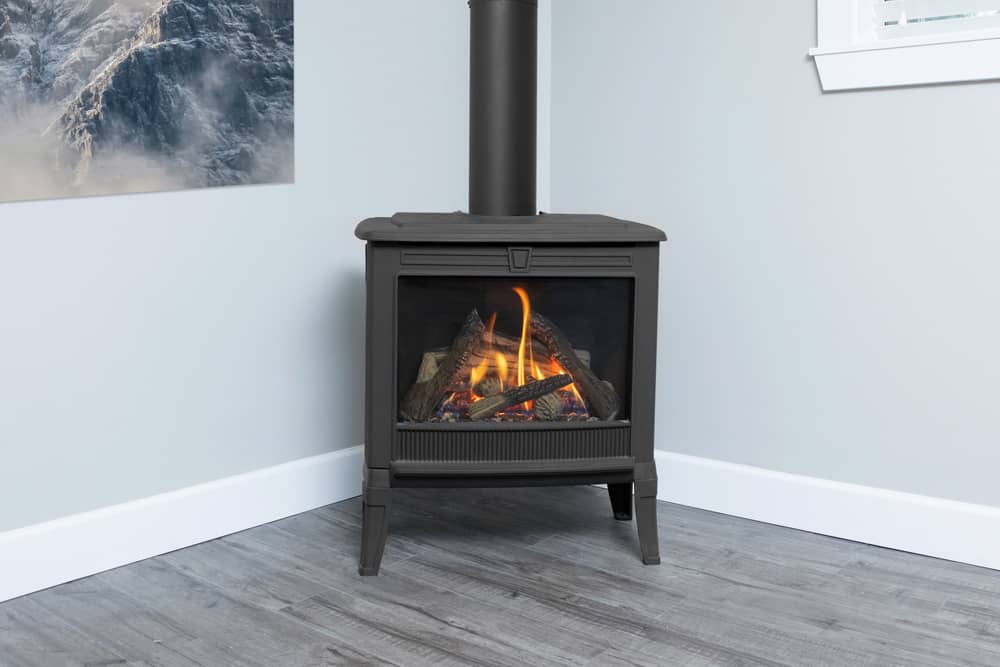

Square Front Viewing 21 ¾" w x 13" h = 283"²

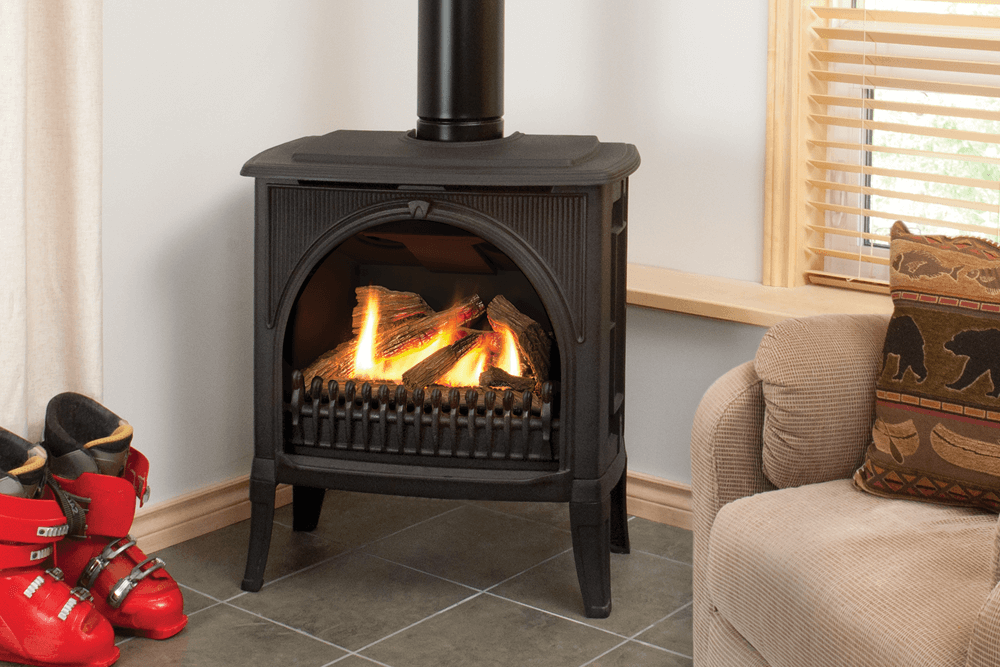

Arched Front Viewing 20 ⅜" w x 13.5" h = 274"²

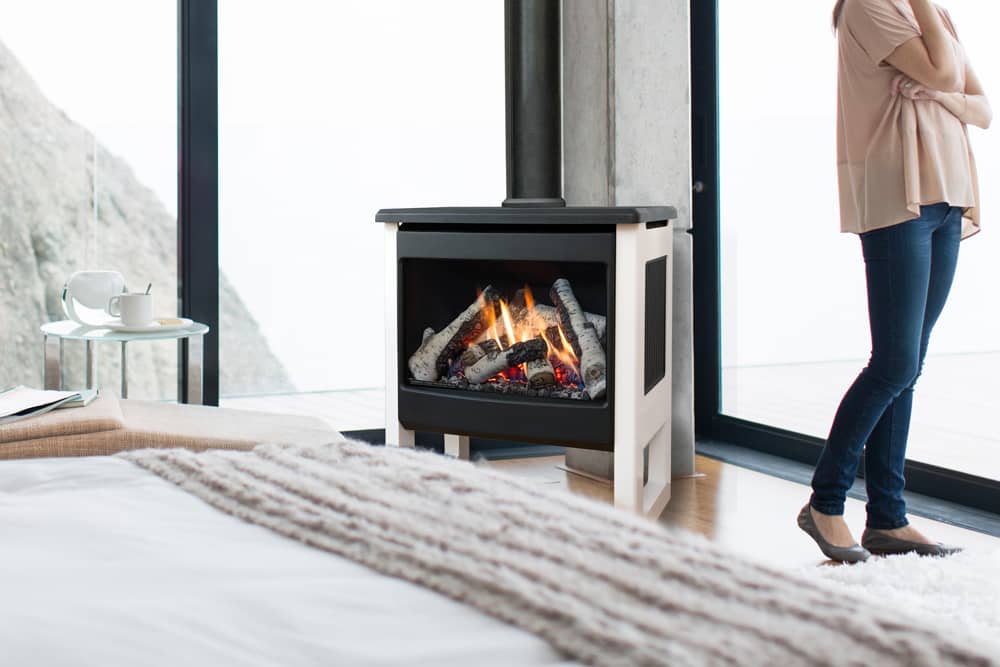

Modern Front Viewing 21 ⅜" w x 13" h = 283"²
Optional Wall Control RBWSK or 1265WSK
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
ValorStat Plus Remote Control System

ValorStat Plus Control

The ValorStat Plus remote gives you full control of your fireplace. Select, adjust and program your desired temperature during waking hours, and set timers to turn off your fireplace after you go to bed.

Remote Controls

Options And Features

Fuel Beds

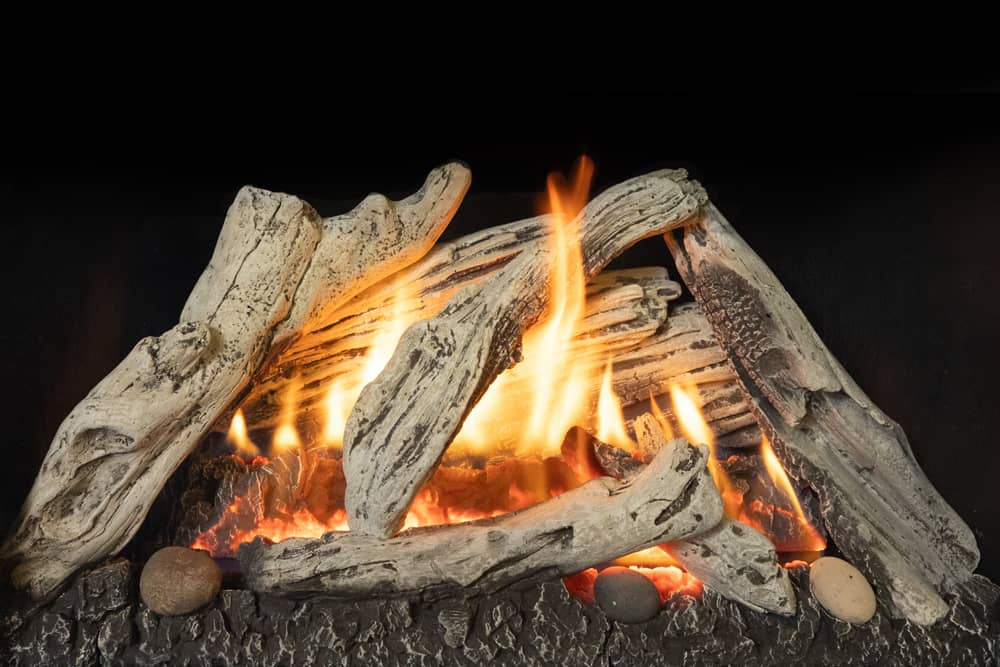

Valor Madrona Gas Stove Driftwood Logs

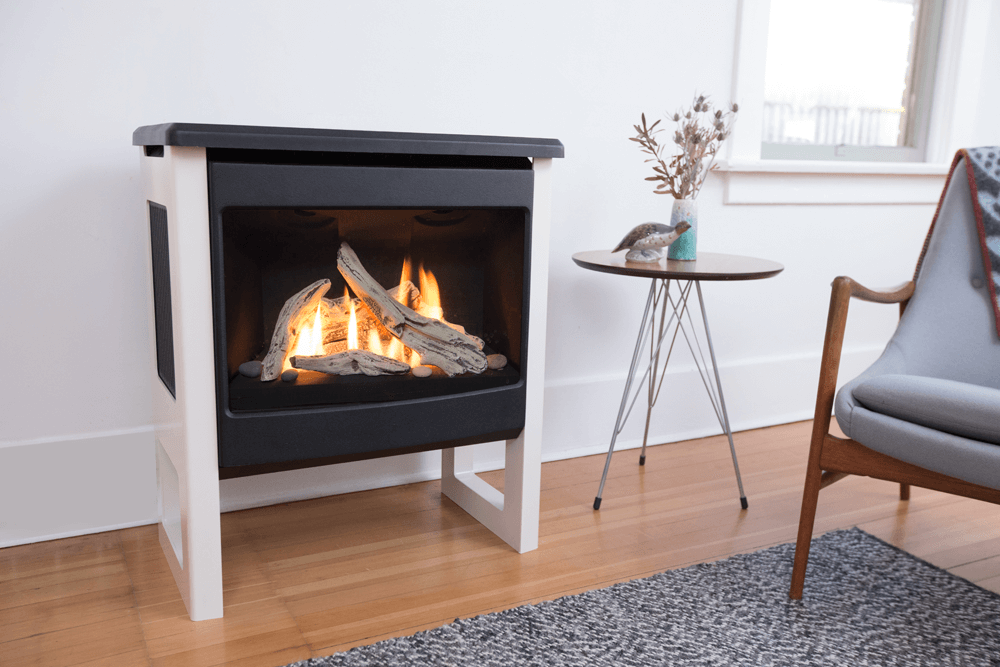

MF28DWK | Driftwood
View Flame Video

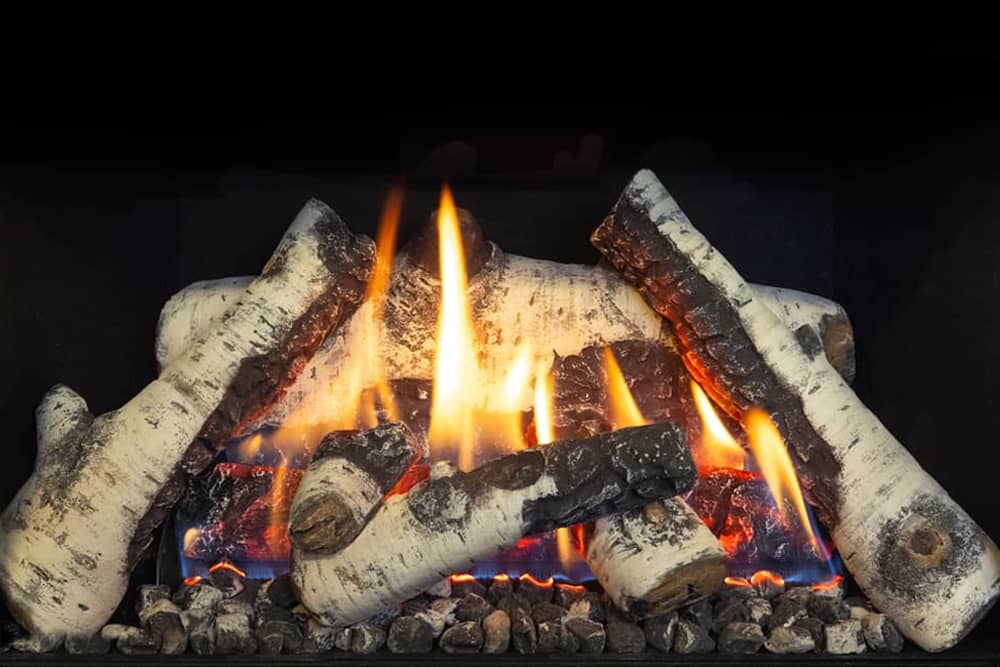

Madrona Gas Stove Log Set

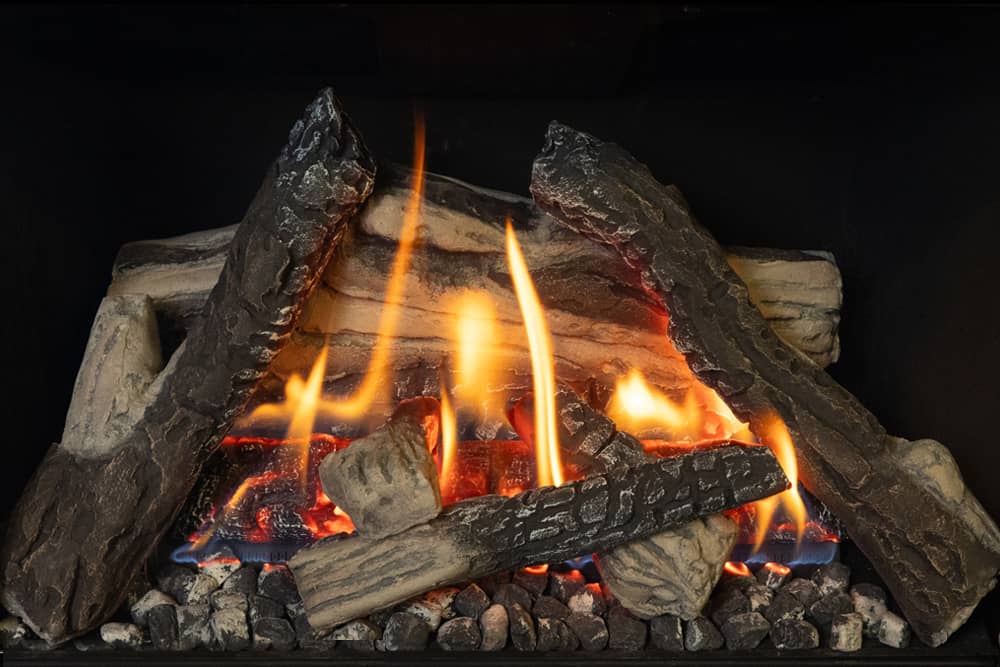

MF28LSK | Traditional Logs
View Flame Video

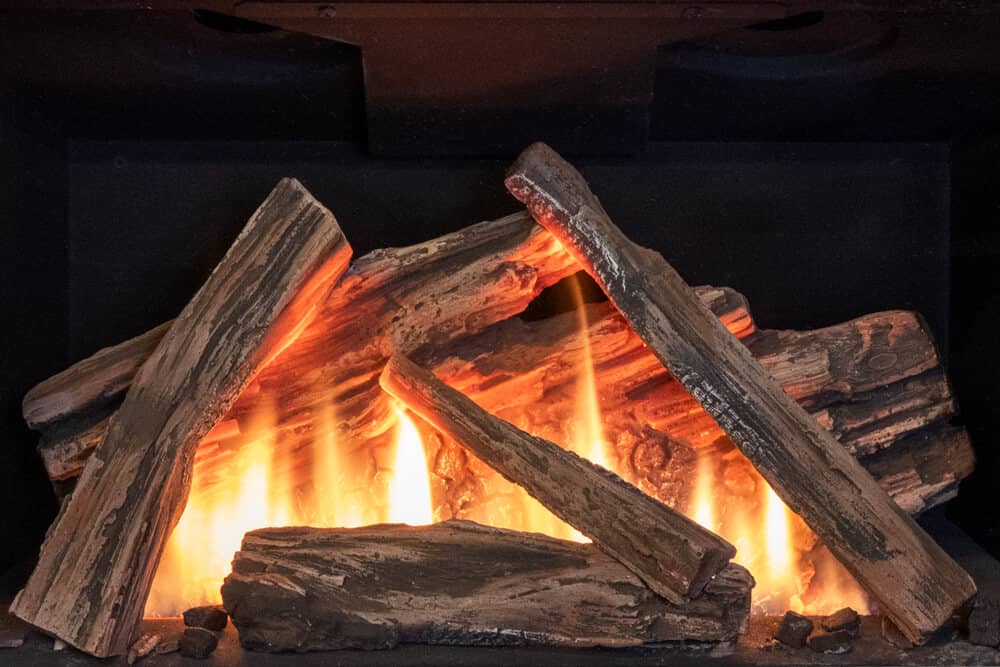

Valor Madrona Gas Stove Splitwood Logs
MF28SWK | Splitwood Logs
View Flame Video
Engine Options
MF28JN/JP Madrona Owner's Manual - NG or LPG
MF28JN/JP Madrona Installation Manual - NG or LPG
Traditional Castings & Fronts (Black)

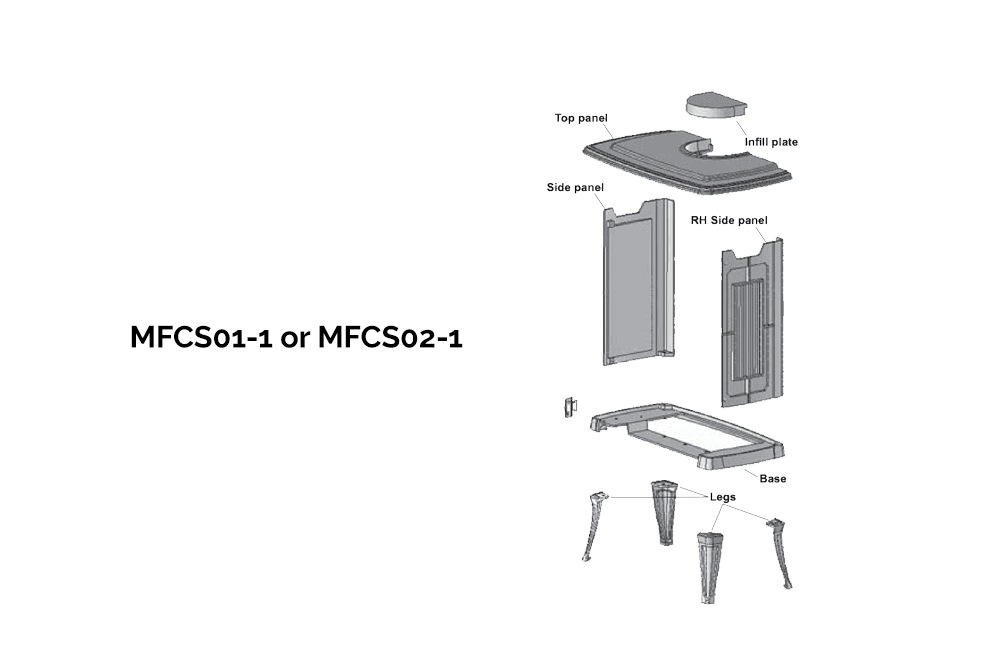

MFCS01-1 Traditional Black Casting (1 of 2)

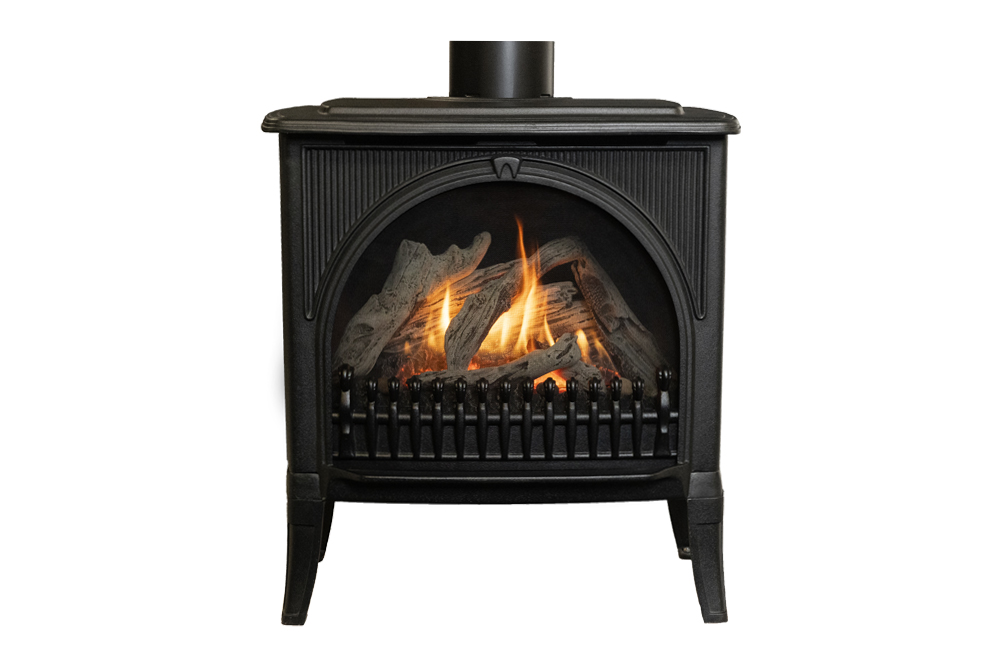

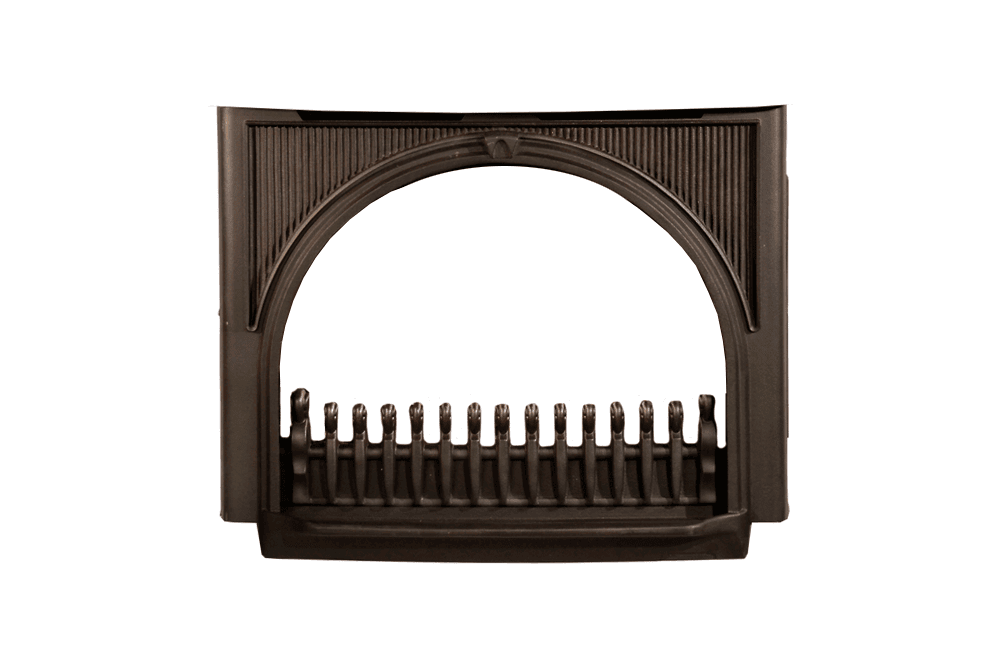

MFCS01-2 Black Arched Front (2 of 2)

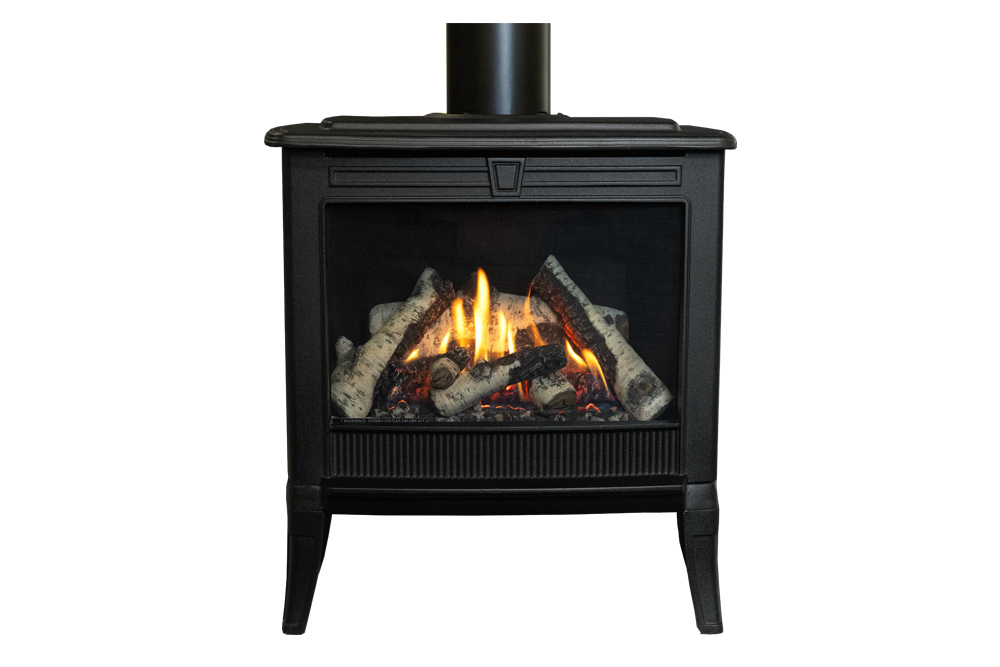

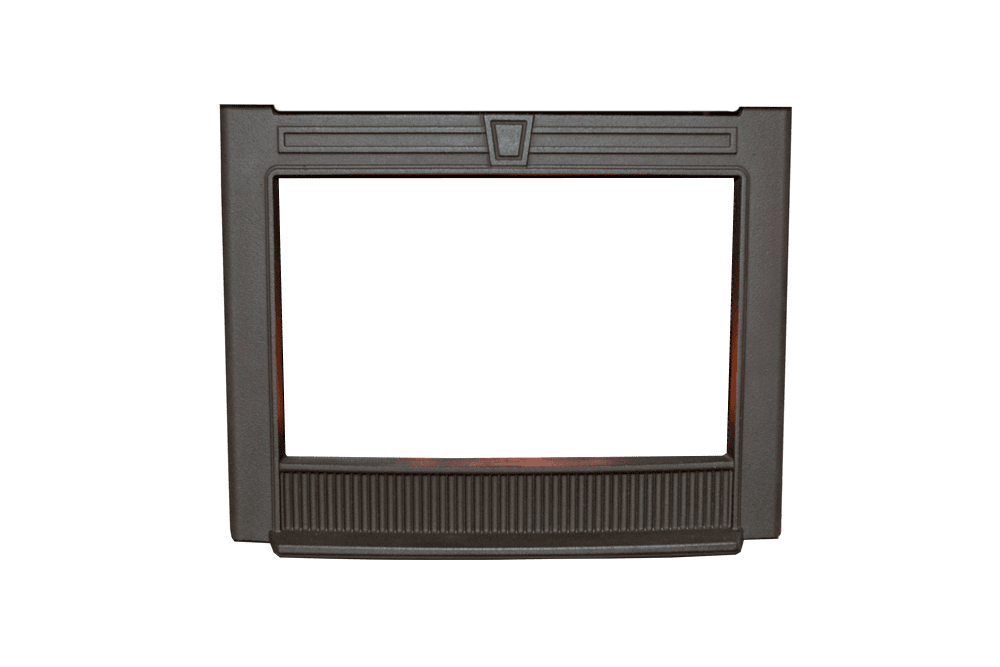

MFCS01-3 Black Square Front (2 of 2)

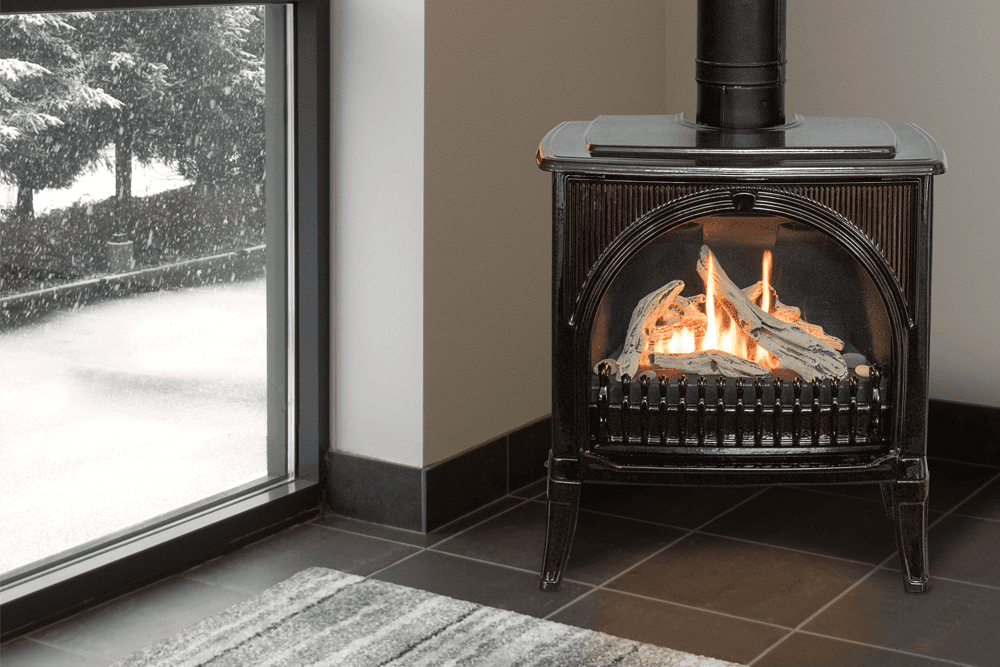

Traditional Castings & Fronts (Majolica)
MFCS02-1 Traditional Majolica Enamel Casting (1 of 2)

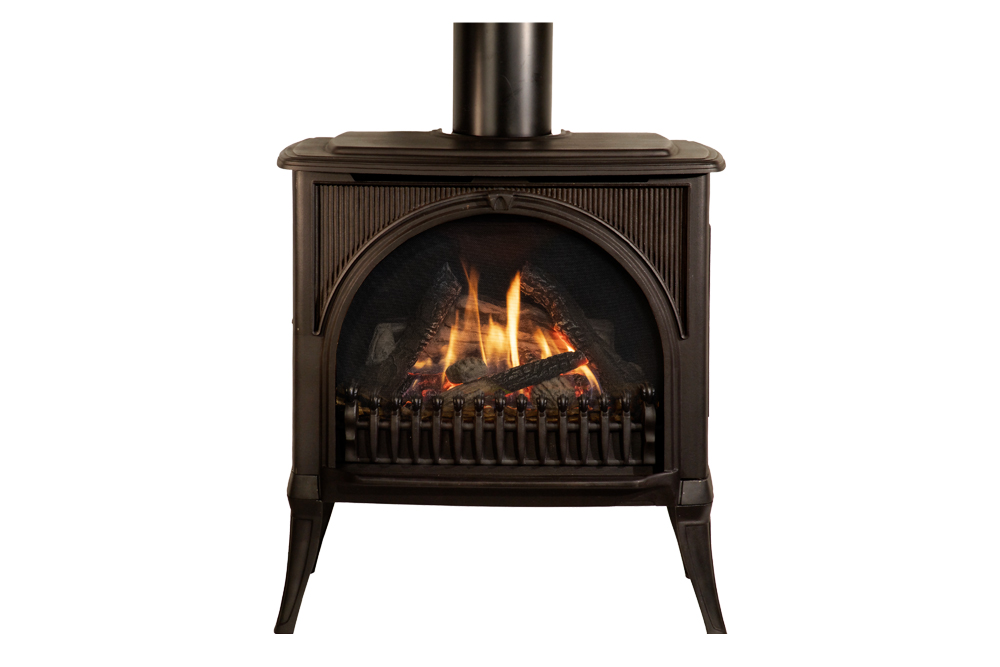

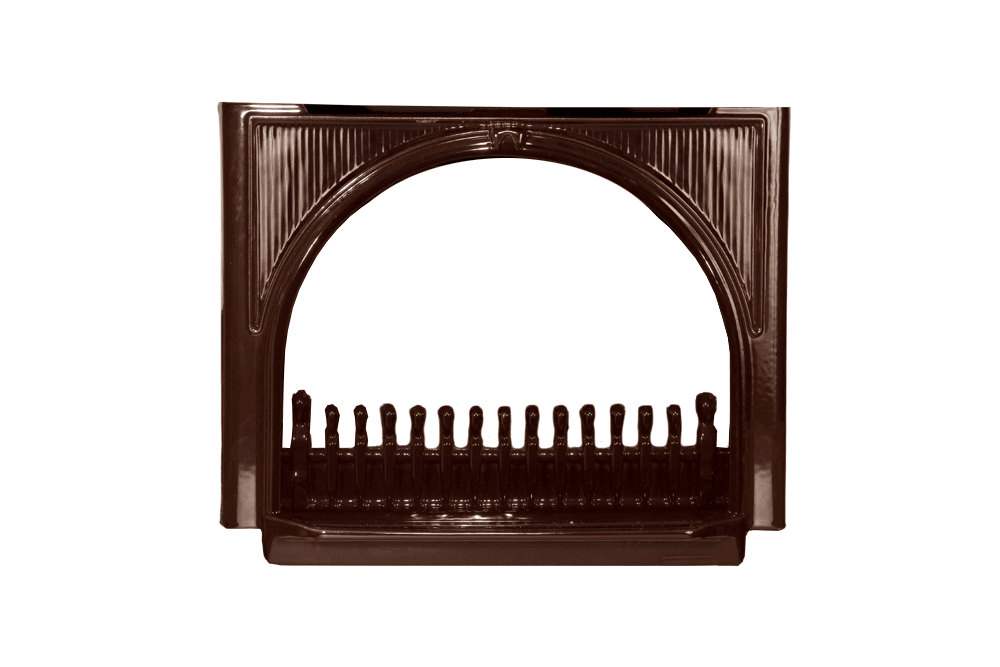

MFCS02-2 Majolica Arched Front (2 of 2)

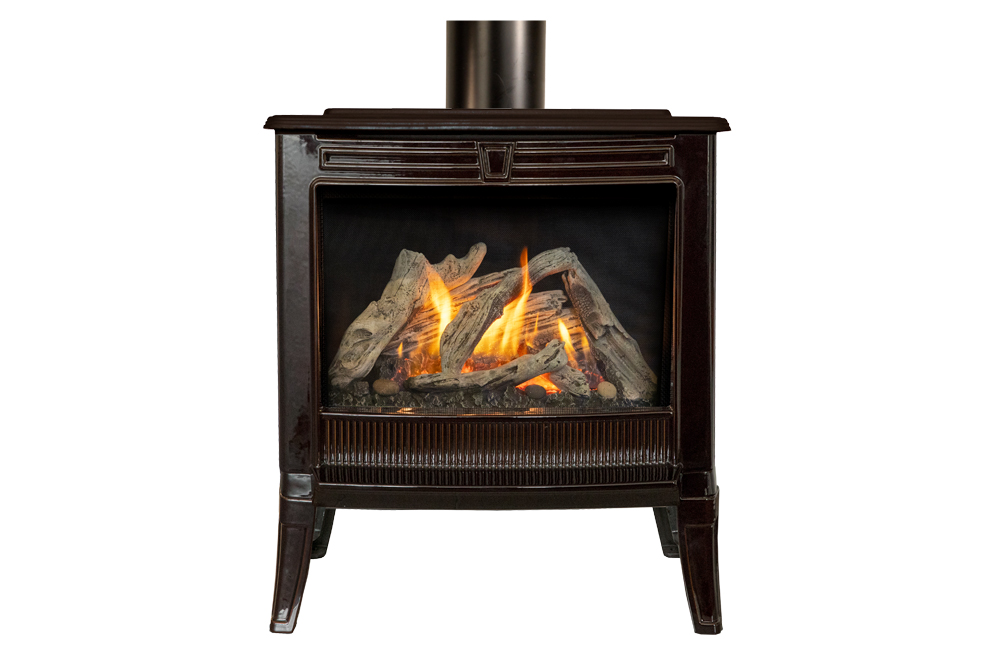

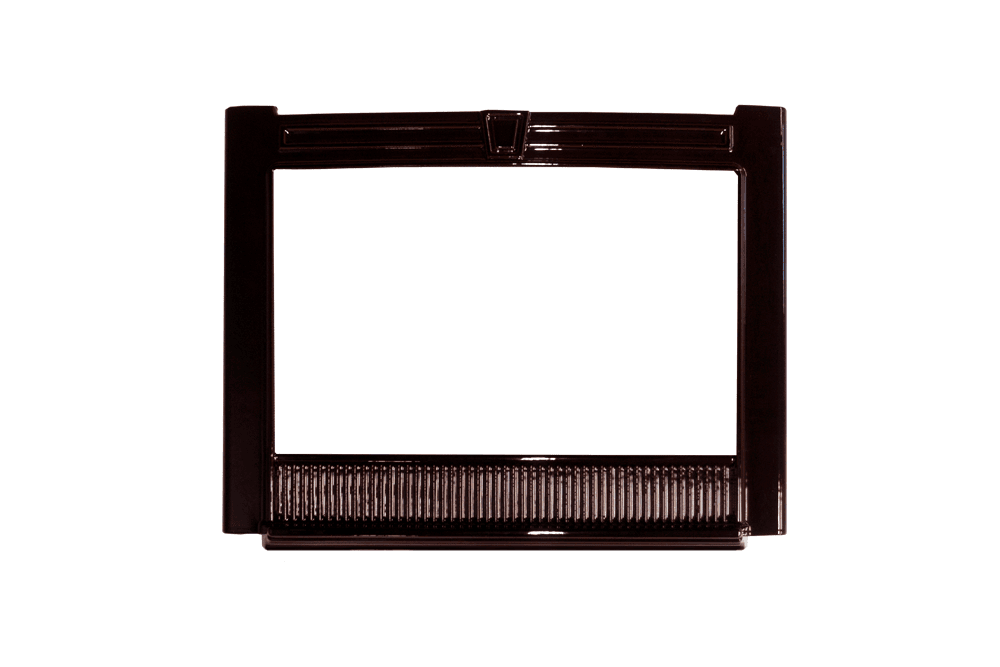

MFCS02-3 Majolica Square Front (2 of 2)

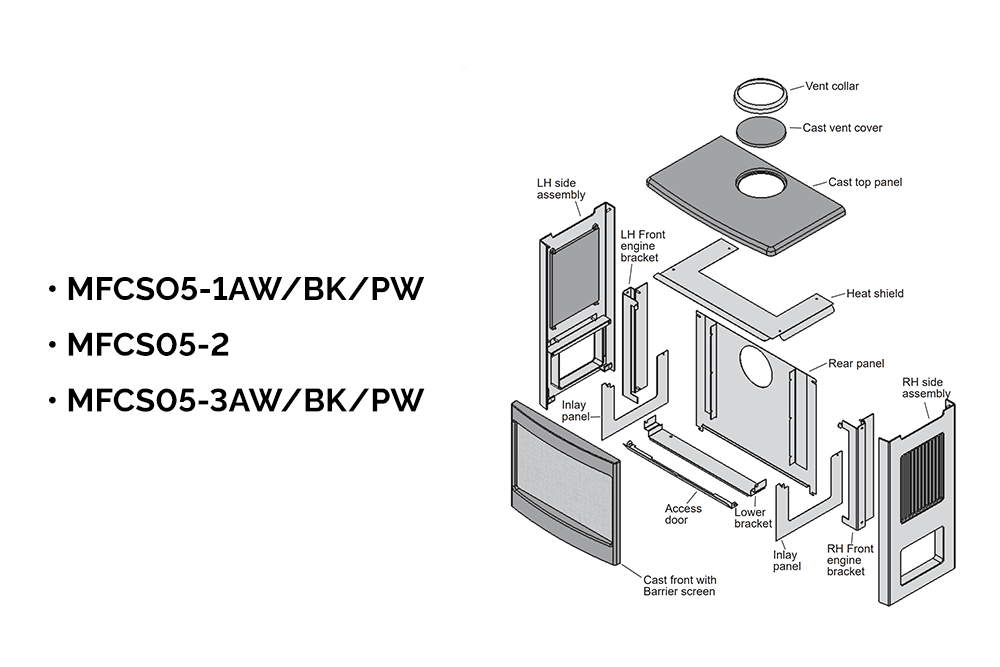

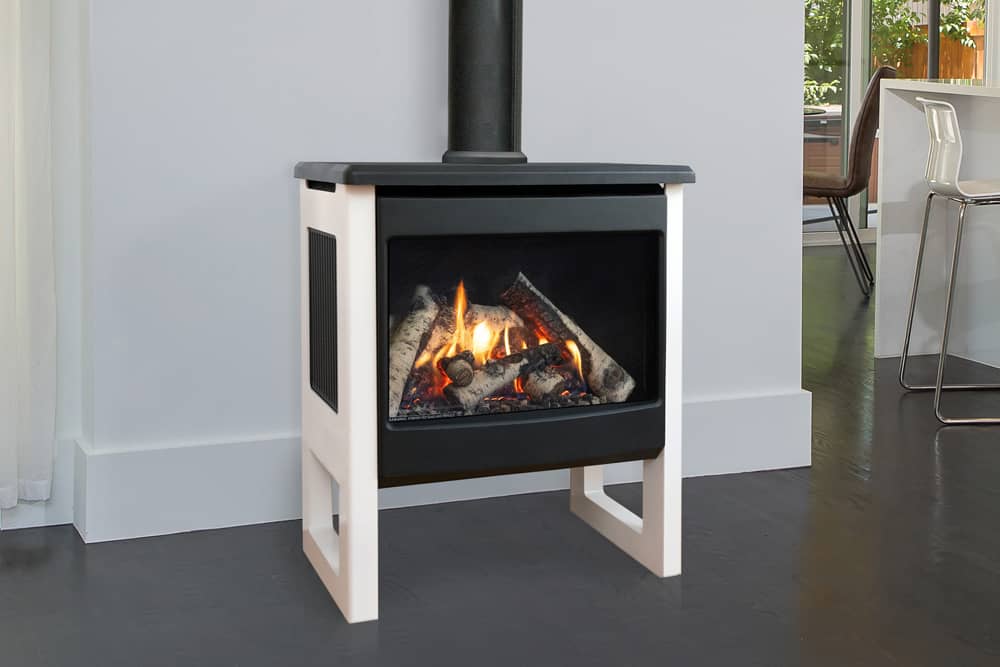

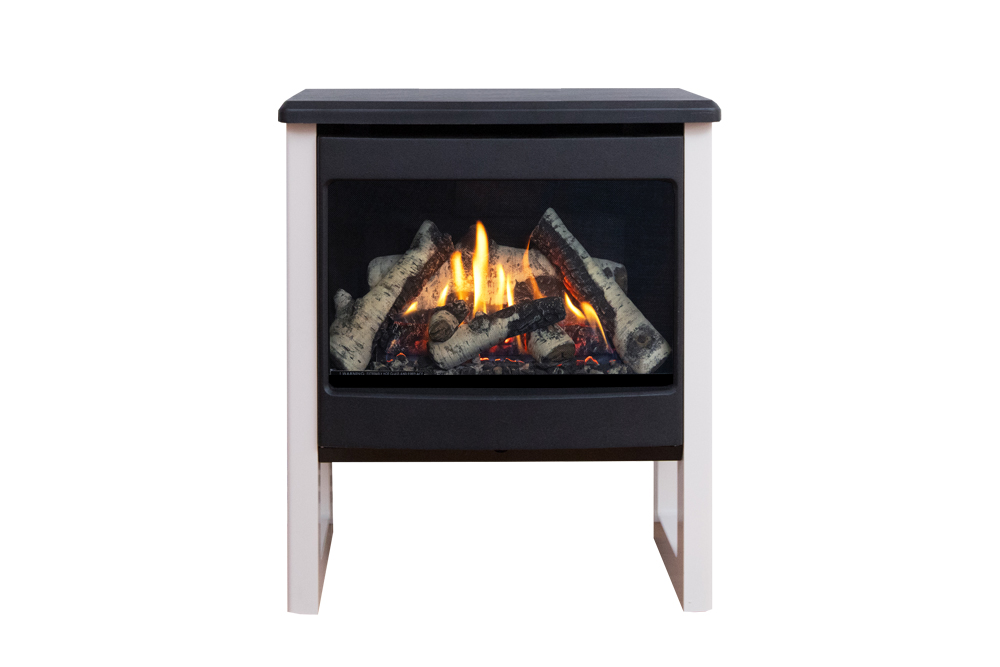

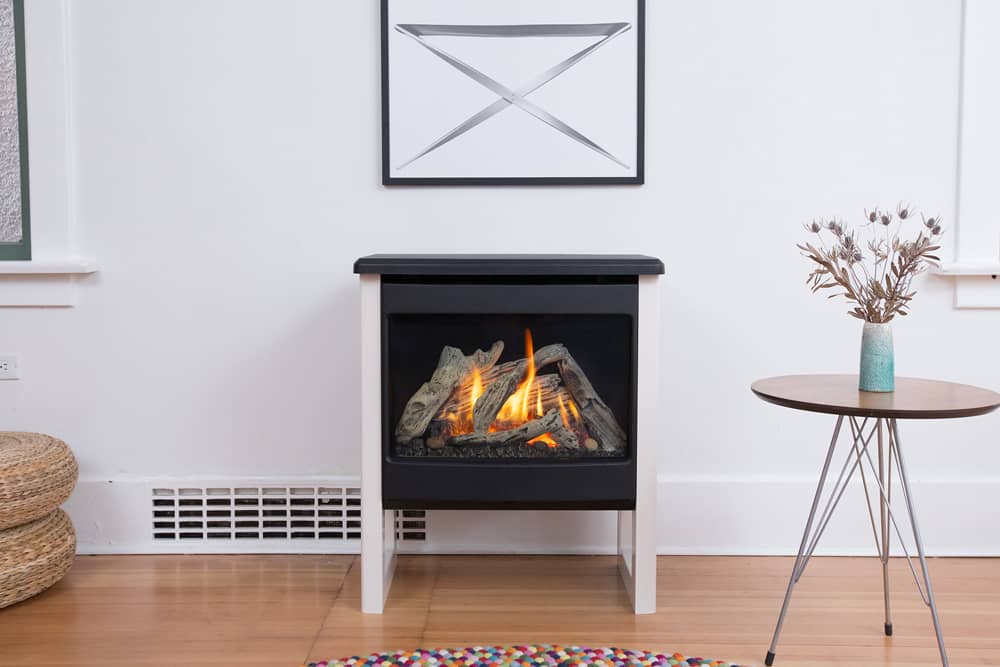

Madrona Modern - Almond White
MFCS05-1AW Madrona Modern - Sides - Almond White (1 of 3)
MFCS05-2 Cast Front, Top & Vent Plug - Black (2 of 3)
MFCS05-3AW Madrona Modern - Frame/Body - Almond White (3 of 3)

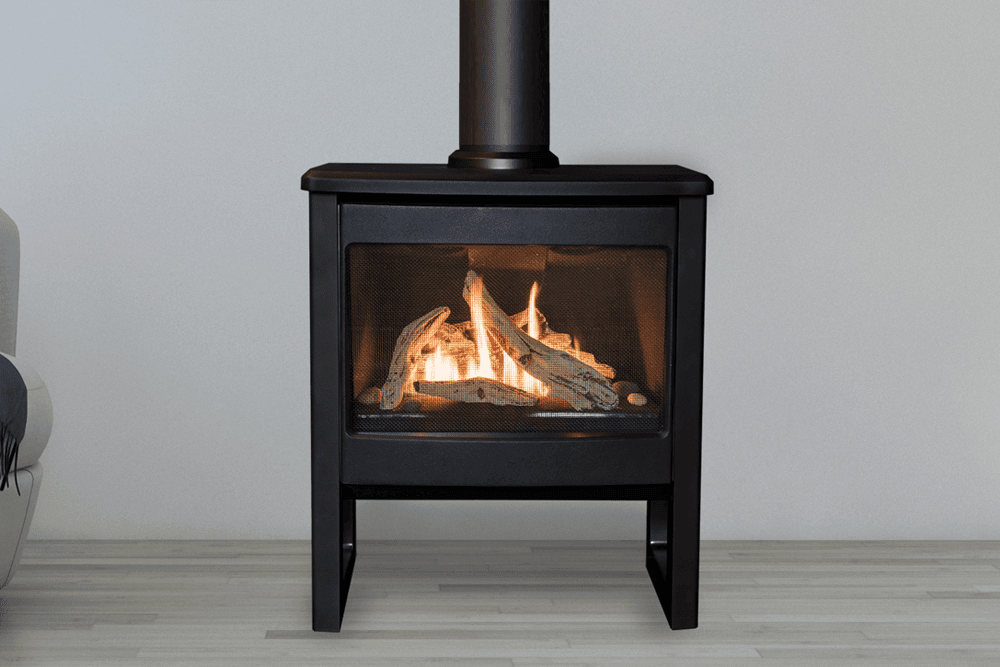

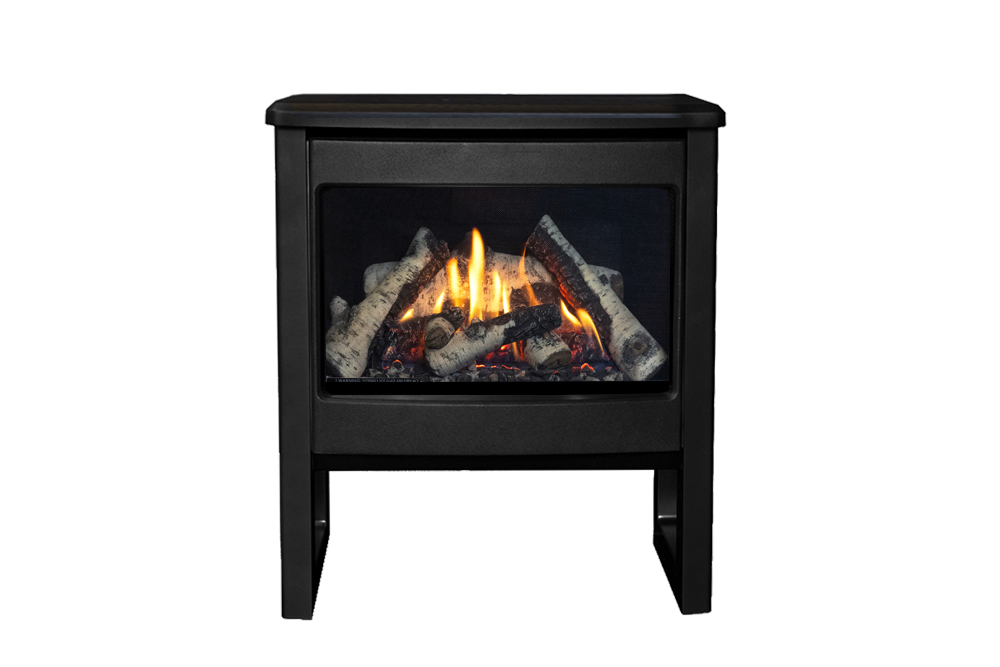

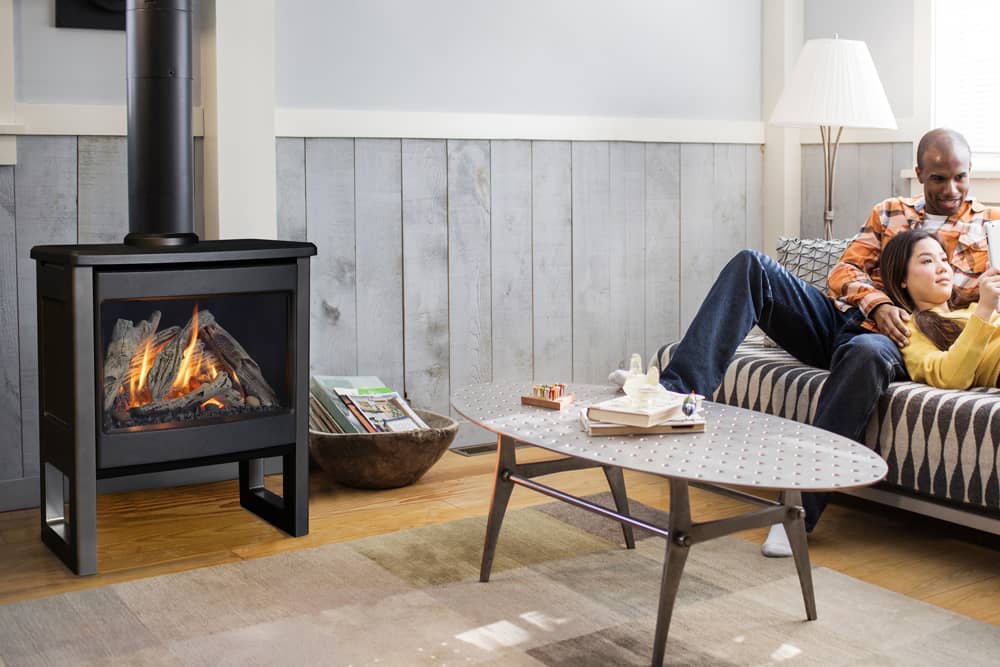

Madrona Modern - Black
MFCS05-1BK Madrona Modern - Sides - Black (1 of 3)
MFCS05-2 Cast Front, Top & Vent Plug - Black (2 of 3)
MFCS05-3BK Madrona Modern - Frame/Body - Black (3 of 3)

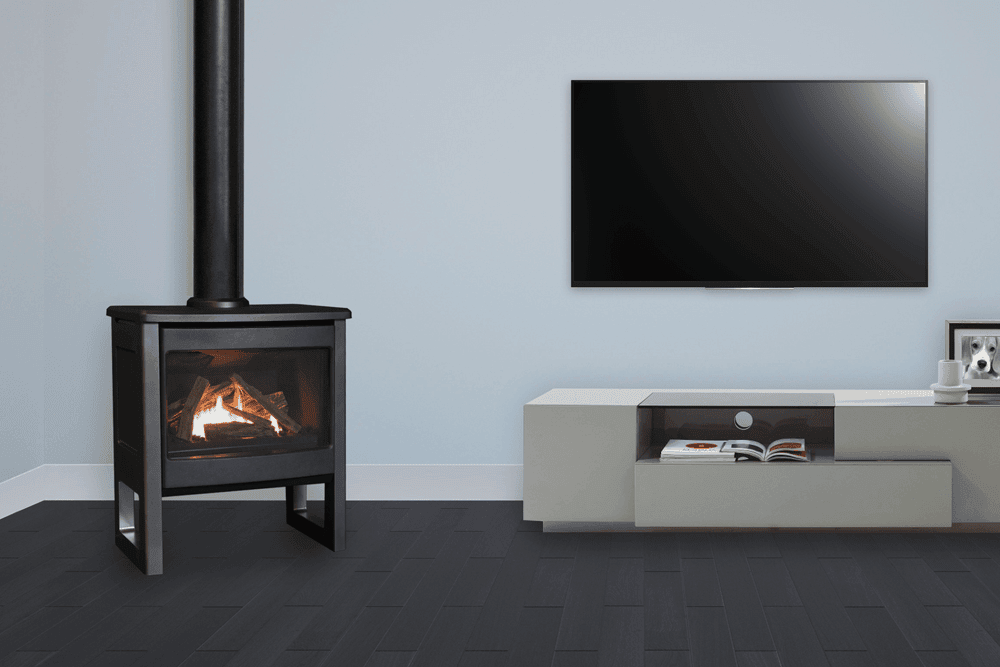

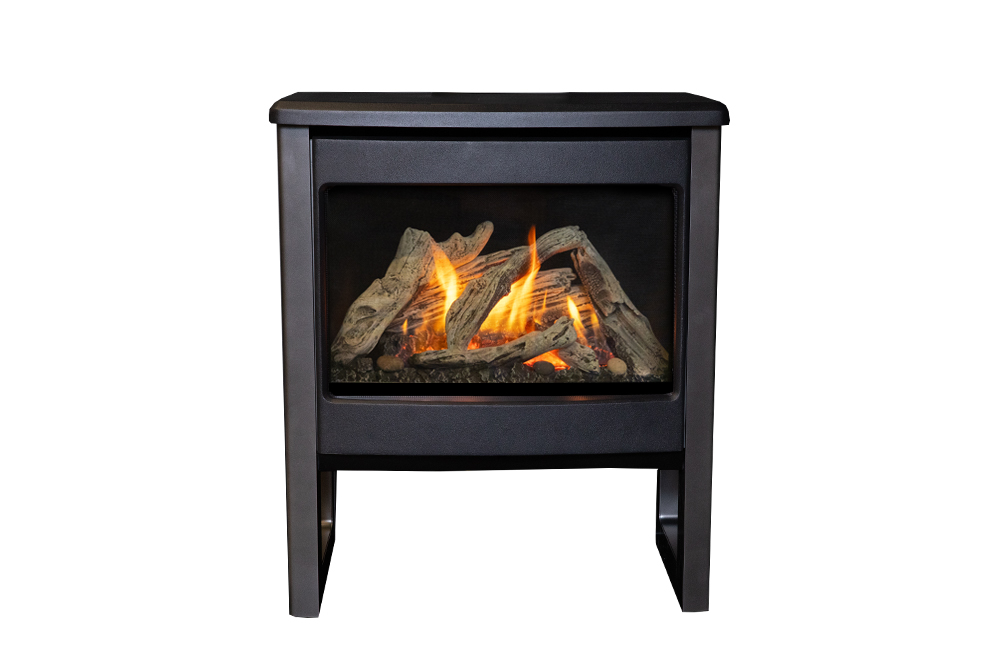

Madrona Modern - Pewter
MFCS05-1PW Madrona Modern - Sides - Pewter (1 of 3)
MFCS05-2 Cast Front, Top & Vent Plug - Black (2 of 3)
MFCS05-3PW Madrona Modern - Frame/Body - Pewter (3 of 3)
Optional Accessories

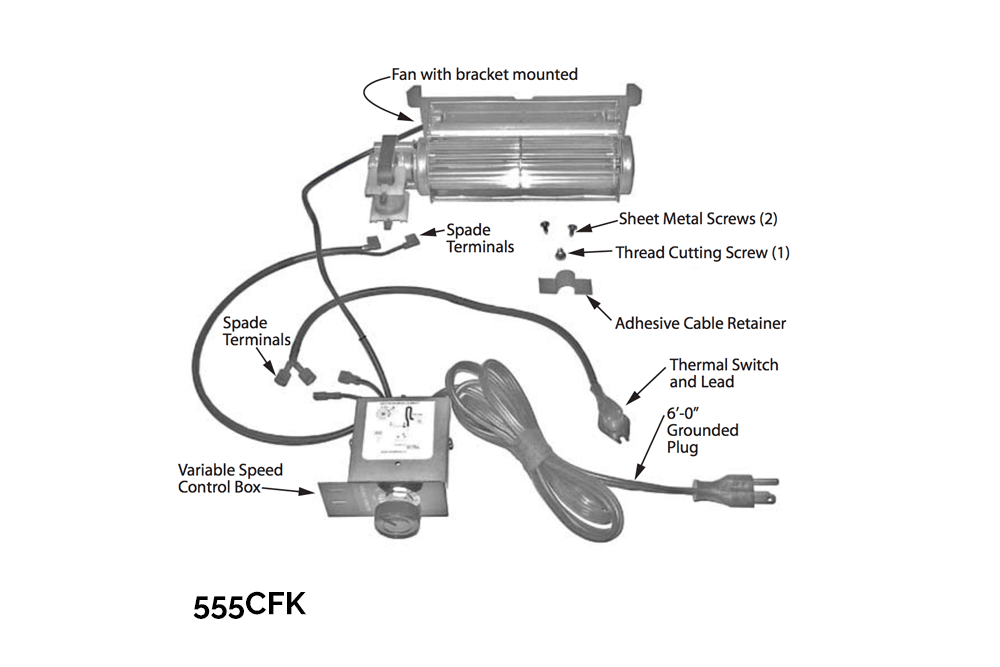

555CFK Circulating Fan Kit
556CLA Co-linear Adapter
559CLT Co-Linear Terminal
559SFK Square Flashing Kit (for use with 559CLT)
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
658NSFK New Siding Flashing Kit

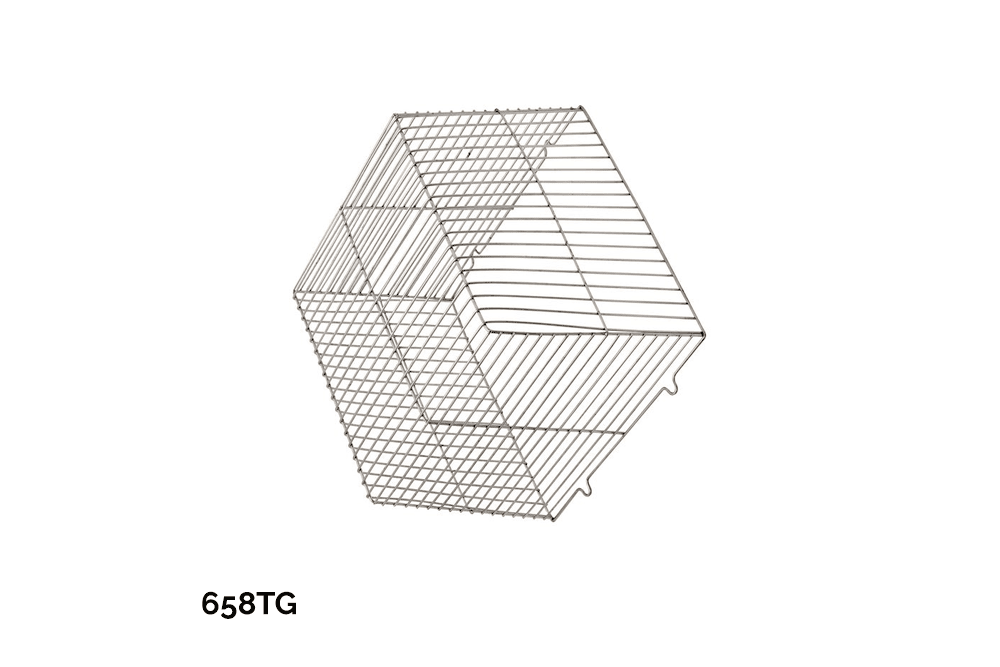

658TG Terminal Guard

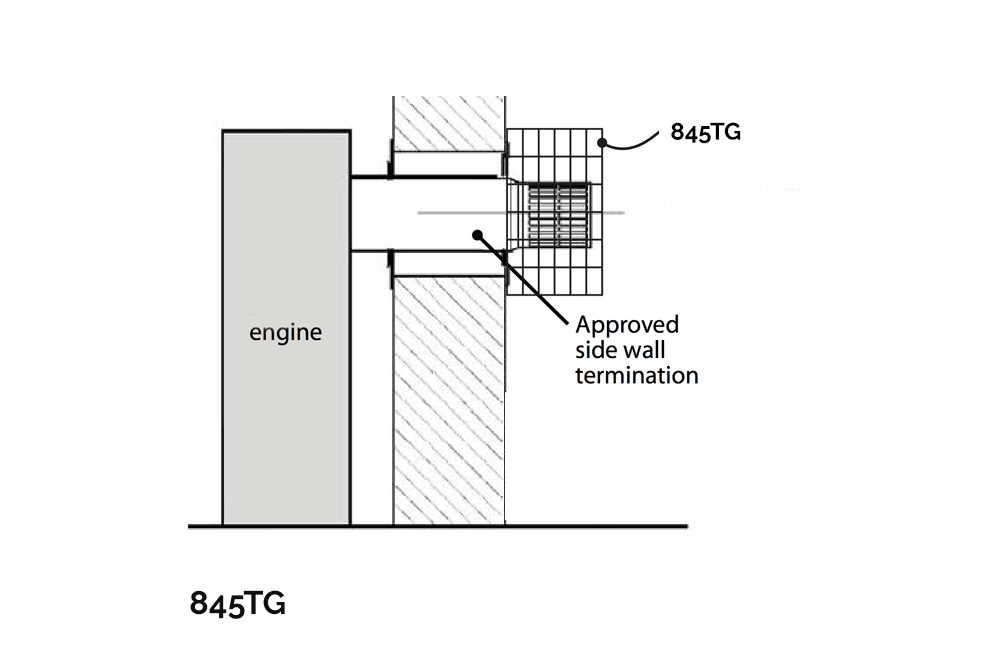

845TG Terminal Guard

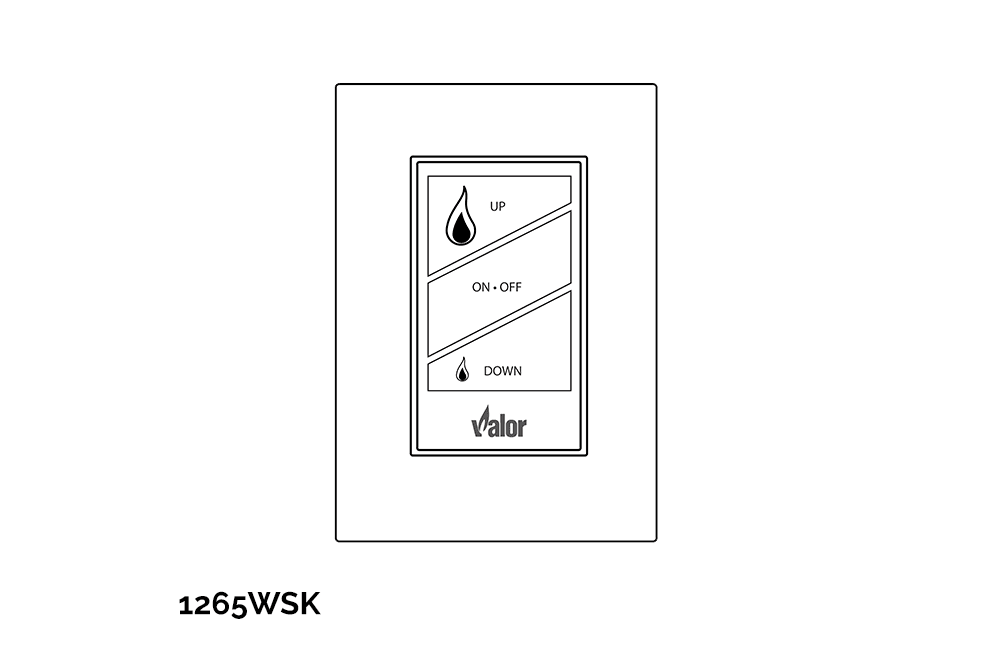

1265WSK Wall Switch Kit
GV60BRK 1-Hour Shut Down Handset
GV60NTK Non-Thermostat Handset
GV60PAK Power Adapter Kit

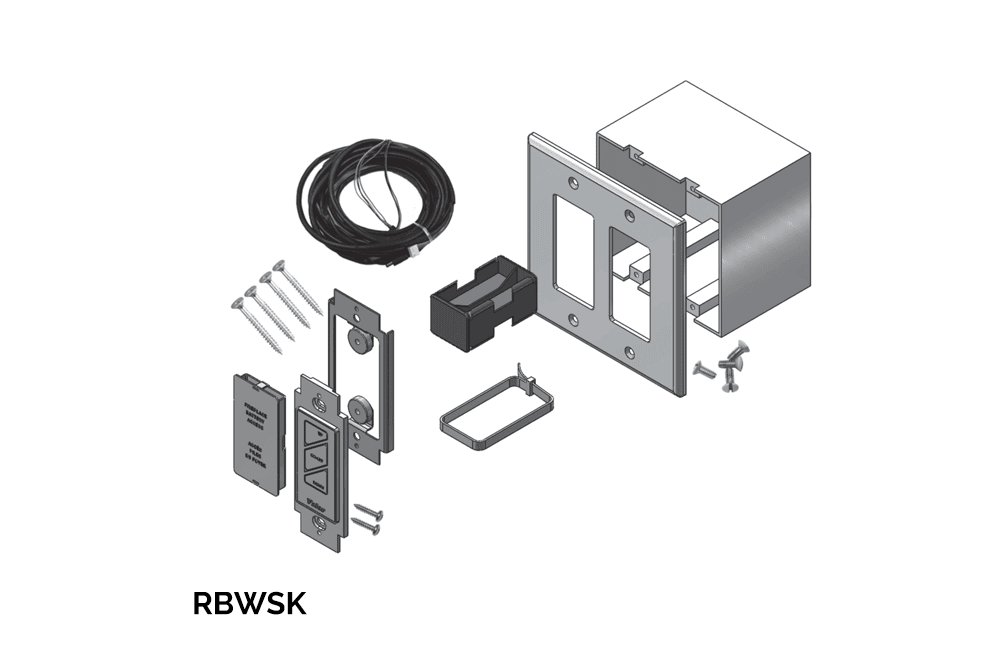

RBWSK Remote Battery & Wall Swith Kit


Additional Manuals or Options
ValorStat Plus ValorStat Plus Remote Manual and Quick Guide
MF28 Specifications
MF28 Receiver Clip Installation
1265WSK Wall Switch Kit
Gas Conversion Kits
MA28INK Madrona Stove Natural Gas Conversion Kit
MF28IPK Madrona Stove Propane Gas Conversion Kit
Archived Models & Accessories
MF28JN/JP Madrona Stove Engine - Natural Gas or Propane
MF28EN/EP Madrona MF28E Stove
MF28IL/IR Madrona MF28I Stove
MF28JL/JR Madrona MF28J Stove
MFCS04 Madrona Contemporary Stove Casting
Valor Fireplaces Safety Information


A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
