L1

DIRECT VENT GAS FIREPLACE

Models:
  • 1500KN/KP
  • Heat
    Shift
  • Outdoor
    Compatible
  • Valor 10
    Remote + App
  • Wall
    Switch
  • High
    Efficiency

Home > Gas Fireplaces > L1 Gas Fireplace



L1 Gas Fireplace

A highly effective radiant and convective heater, the L1 raises the standards for "decorative widescreen" fireplaces. Engineered to enhance flame depth and width without sacrificing efficiency, the specialized Valor burner emits radiant warmth where you want it, when you want it.

The Valor HeatShift System™ is highly recommended for installations where surrounding structural areas must remain at cooler temperatures. Keep the walls cool with HeatShift, or redirect convective warmth with HeatSplit.

Specifications

Model Max Input Min Input Max Output Energuide
1500KN 30,000 18,000 21,705 66.30%
1500KP 28,000 18,500 20,409 67.00%
Gas Type Natural Gas (NG) or Propane (LPG)
Valor 10 Remote Quick Guide | Manual | Mobile App
Included with Fireplace Owner and Installation Manuals
Valor 10 Remote & Manual
RBWSK Wall Switch
Viewing Area 40" w x 14 ½" h = 580"²
Framing & Venting Refer to the Installation Manual.
HeatShift™ Installation & Planning
Wall Control RBWSK
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
MORE

HEATSHIFT SYSTEM™

Reduce wall temperatures and improve overall performance with HeatShift. This feature is ideal when adding heat sensitive items or materials directly above the fireplace, such as a wall-mounted TV.

Valor HeatShift™

VALOR 10 MOBILE APP

Take full control of your fireplace with intuitive and interactive options—including the ability to program your fireplace, set a countdown timer, or implement child safety locks.

Valor 10 Remote App

Options And Features

Fuel Beds

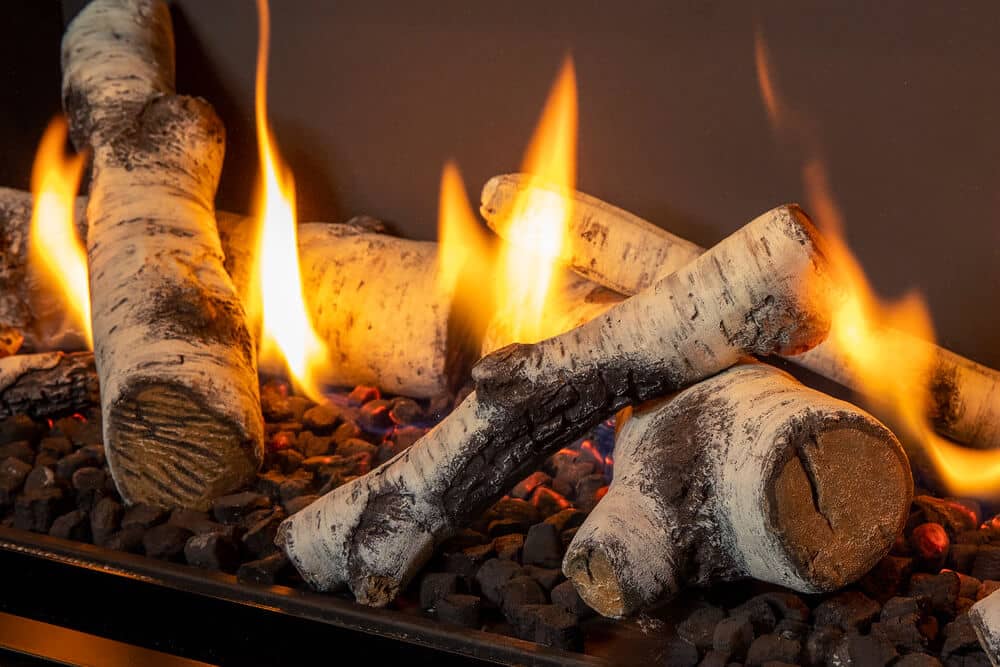

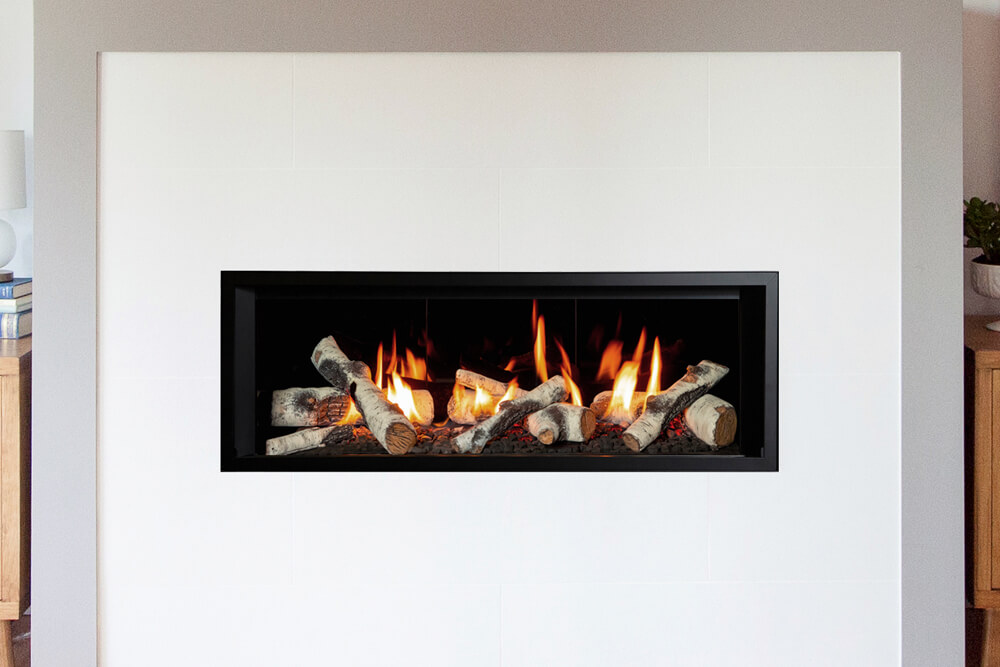

Valor LT1 Gas Fireplace Birch Logs
1505BLKV2 | Birch Logs
View Flame Video
L1 Linear Gas Fireplace Murano Glass
1500DGM | Murano Glass
View Flame Video

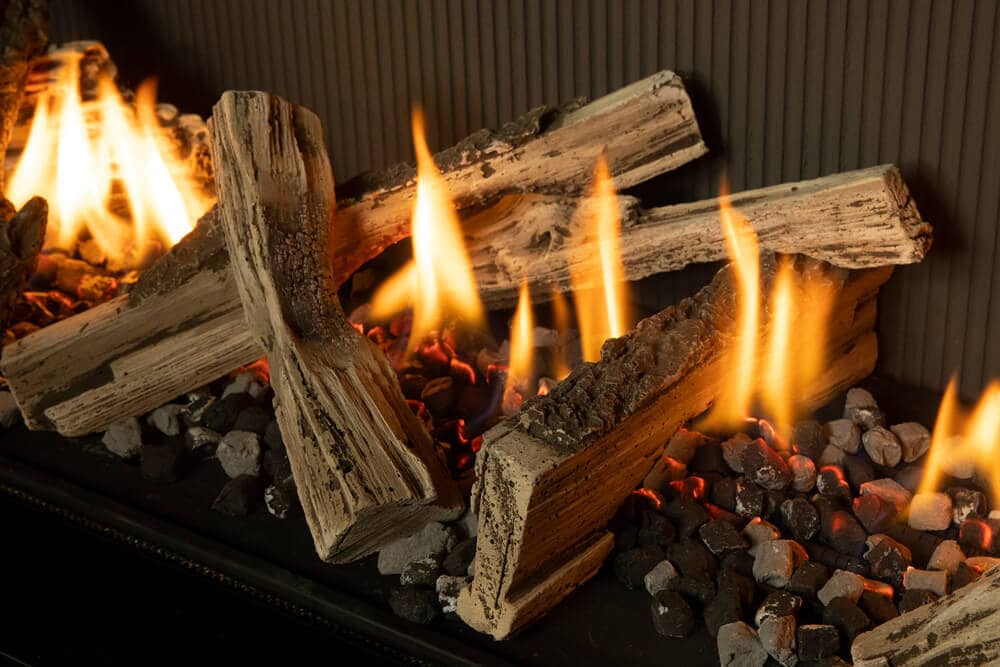

Valor LT1 Gas Fireplace Splitwood Logs
1505SWKV2 | Splitwood Logs
View Flame Video

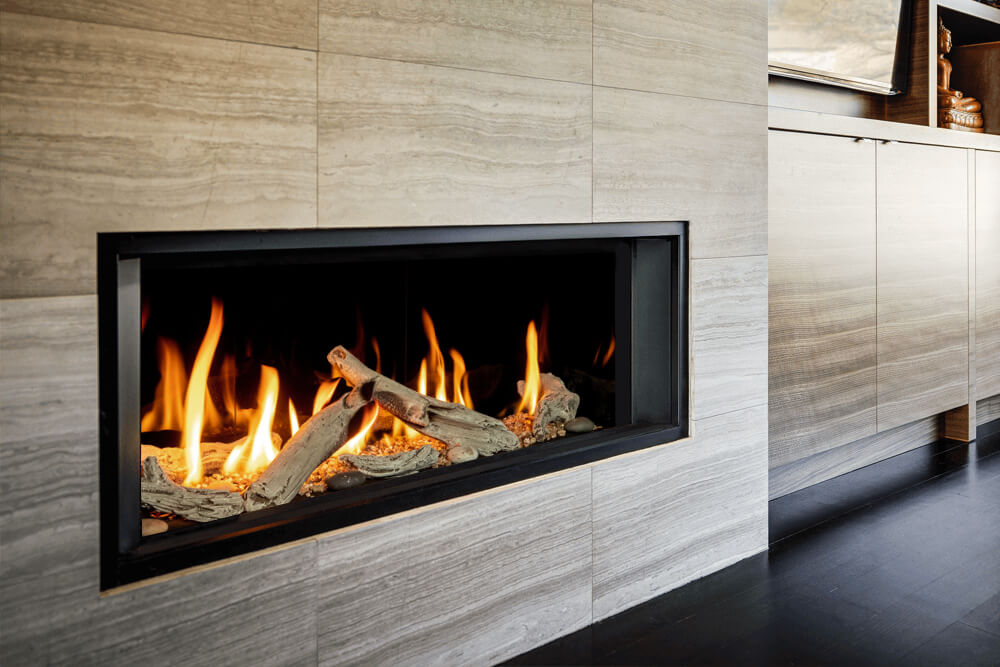

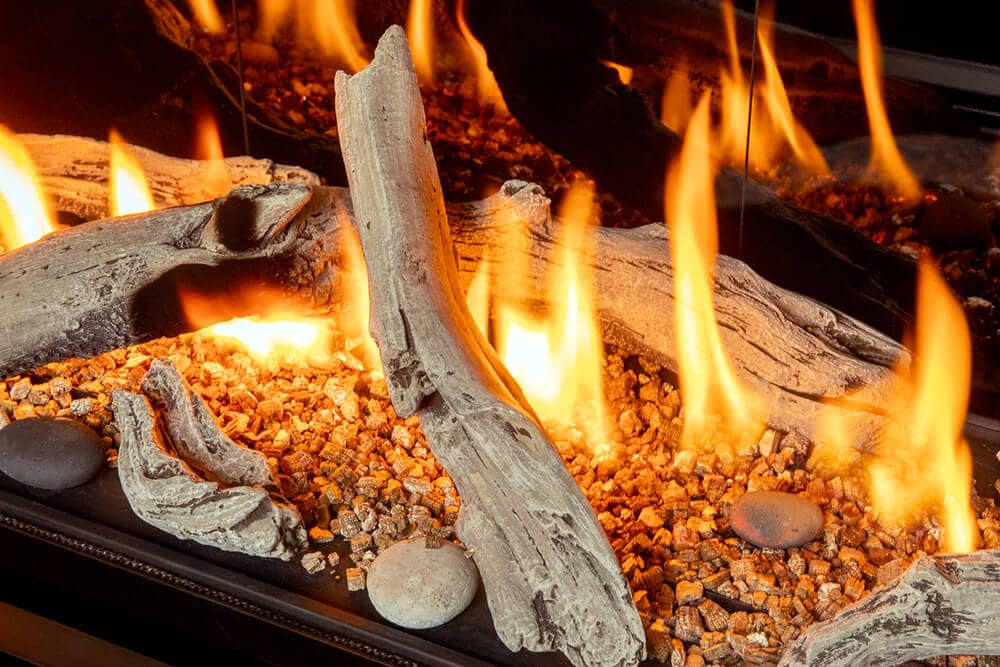

Valor LT1 Gas Fireplace Driftwood Logs
1505DWKV2 | Driftwood
View Flame Video

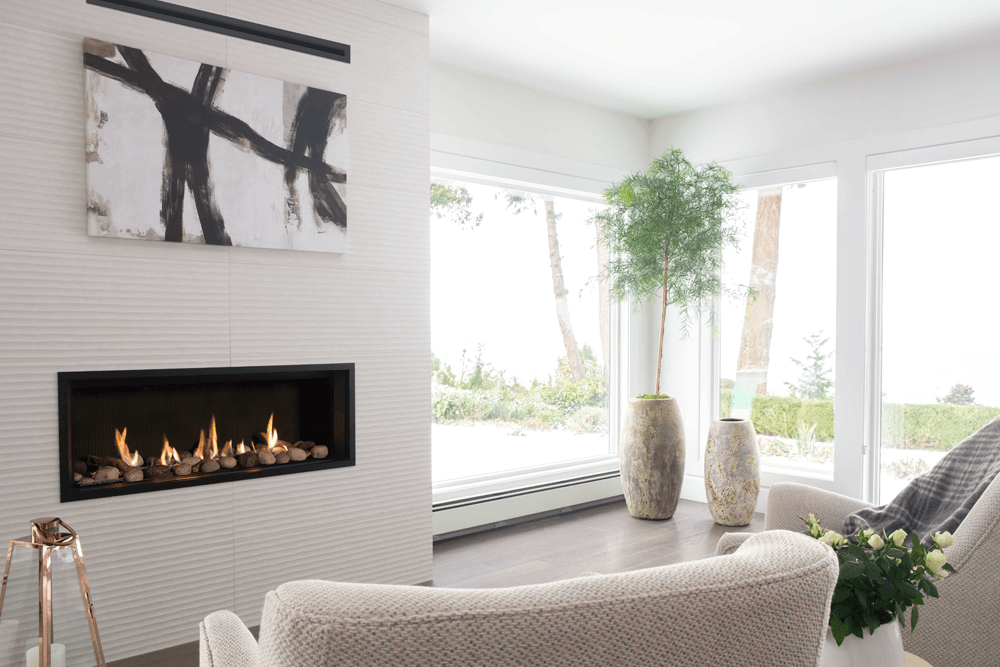

L1 Linear Gas Fireplace Rock and Shale
1514RSS | Rock & Shale
View Flame Video
Liners

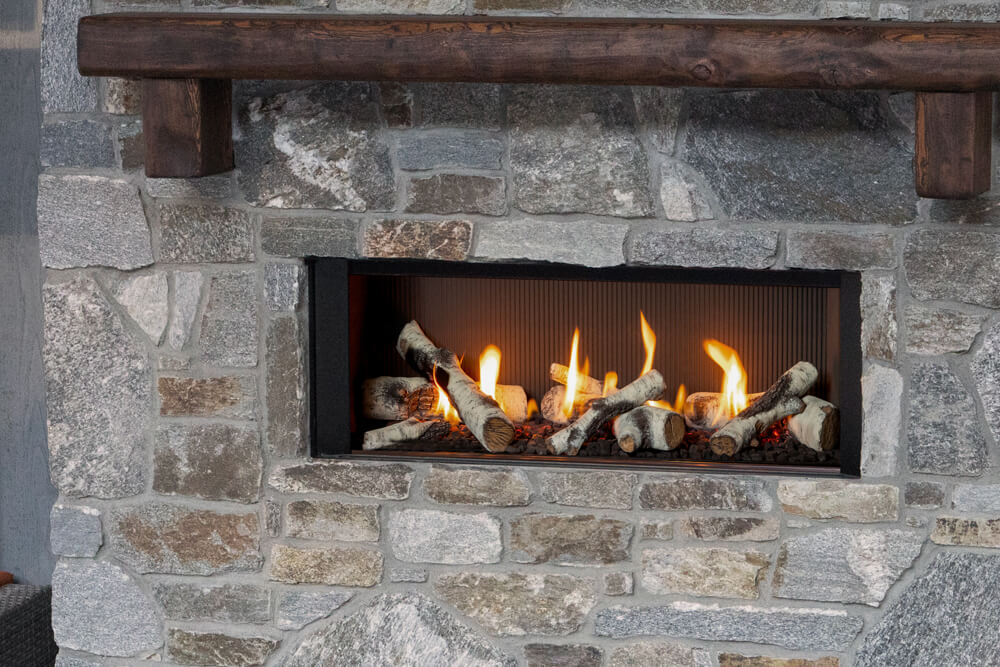

Gas Fireplace Fluted Black Liner
1515FBL | Fluted Black
View Now

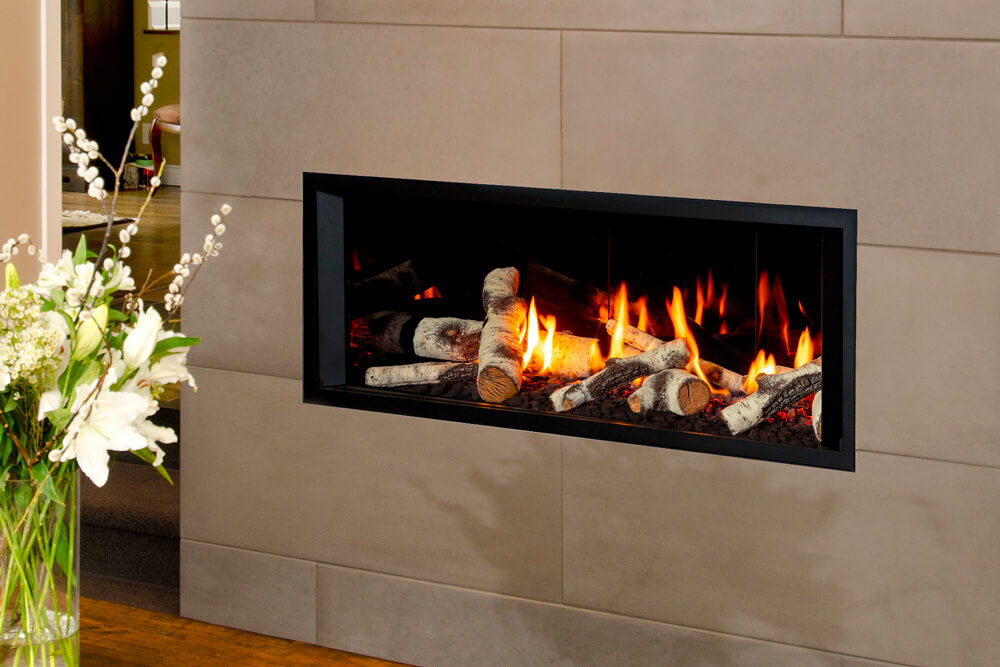

Gas Fireplace Reflective Black Glass Liner
1525RGL | Reflective Glass
View Now
Linear Fireplace Plain Black Liner
1560PBL | Plain Black
View Now
Engine Options
1500KN/KP L1 Homeowner's Manual - Natural Gas or Propane (requires fuel bed & liner)
1500KN/KP L1 Installation Manual - Natural Gas or Propane (requires fuel bed & liner)
Trims
1530CIK 1" Clean Install Kit (requires Valor HeatShift™) (41"w x 15-13/16"h)
1550LSBv2 3 ½" Trim - Black (46-3/16"w x 21 ¼"h)
1575LFB 1" Adjustable Finishing Trim - Black (41 ½"w x 16 ¼"h)
L1 with Valor HeatShift™
L1/L2/L3 HeatShift Planning and Installation
Compatible with: LDK1, LDK2, LDK3, LDK4, LDK5, LDK6, LDK7, LDK9, and LDK10.
Brochure HeatShift reduces wall temperatures above the fireplace.
Optional Accessories
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
1156CLA Co-linear Adapter Kit
1270RBK Valor HeatSplit - Remote Heat Distribution System
1595CFKV2 Circulating Fan Kit - requires GV60VM (not recommended with HeatShift™)
GV60CKO Outdoor Conversion Kit
GV60PAK Power Adapter Kit
GV60VM GV60 V-Module Kit
GV60WiFi GV60 WiFi Module Kit

Downloads

Additional Manuals or Options
Valor 10 Remote Valor 10 Remote Manual and Quick Guide
Valor 10 Mobile App Valor 10 WiFi Control & Upgrade Instructions
Specifications Framing, dimensions and clearances

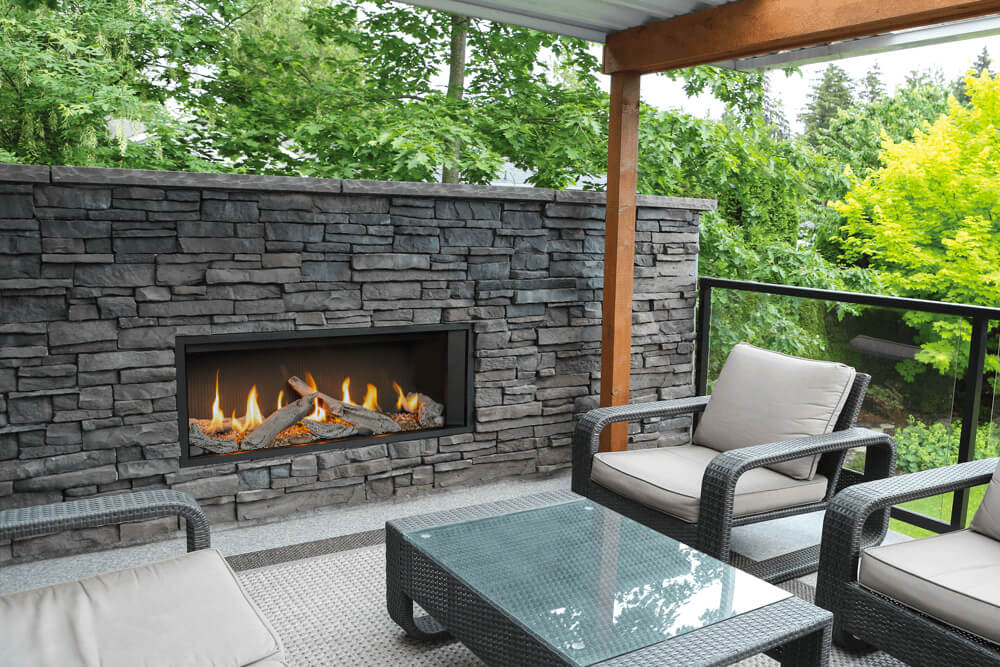

Outdoor Conversion Convert for your fireplace for outdoor use.
Module Upgrade Module Upgrade Kit for L1 and L1 See-Thru Fireplaces
RBWSK Remote Battery & Wall Switch
HeatShift™ Reduce wall temperatures above the fireplace.
Gas Conversion Kit
1500J NGK/PGK L1 "J" Gas Conversion Kit
1500K NGK/PGK L1 "K" Gas Conversion Kit
Archived Models & Accessories
1500IN/IP L1 1500I Fireplace
1500IN/IP L1 1500I Specifications
1500JN/JP L1 1500J Fireplace
1500JN/JP L1 1500J Specifications
1500INO/IPO L1 Linear Outdoor Fireplace
1506DRK Decorative Rock Kit
1525EBL L1 Enamel Liner Air Deflectors
1540SSL Stacked Stone Liner
1550LS 3.5" Trims
1550LSPv2 3 ½" Trim - Brushed Nickel
1550LSZv2 3 ½" Trim - Bronze
1555LFB 1" Trim
1560LSG Barrier Screen
1565LLK Lighting Kit
1570RCS GRC Sandstone Surround
1595CFK Circulating Fan Kit
Valor Fireplaces Safety Information

FIREPLACE SAFETY

A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
