Home > Gas Fireplaces > L2 Gas Fireplace



L2 Gas Fireplace

A bold statement in any living space, the L2 is luxury fireplace design at its finest. Inspired by the highly successful L1, the L2 boasts an impressive 50" linear viewing area that highlights brilliant flames within. The L2 combines Valor efficiency and heat performance with the latest in contemporary styling. Now available with upscaled birch, driftwood, or splitwood log sets!

The Valor HeatShift System™ is highly recommended for installations where surrounding structural areas must remain at cooler temperatures. Keep the walls cool with HeatShift, or redirect convective warmth with HeatSplit.

Specifications

Model Max Input Min Input Max Output Energuide
1700KN 36,000 19,000 25,916 67.00%
1700KP 34,000 21,000 25,347 70.00%
Gas Type Natural Gas (NG) or Propane (LPG)
Valor 10 Remote Quick Guide | Manual | Mobile App
Included with Fireplace Owner and Installation Manuals
Valor 10 Remote & Manual
RBWSK Wall Switch
Viewing Area 50" w x 14 ½" h = 725"²
Framing & Venting Refer to the Installation Manual.
HeatShift™ Installation & Planning
Wall Control RBWSK
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
MORE

HEATSHIFT SYSTEM™

Reduce wall temperatures and improve overall performance with HeatShift. This feature is ideal when adding heat sensitive items or materials directly above the fireplace, such as a wall-mounted TV.

Valor HeatShift™

VALOR 10 MOBILE APP

Take full control of your fireplace with intuitive and interactive options—including the ability to program your fireplace, set a countdown timer, or implement child safety locks.

Valor 10 Remote App

Options And Features

Fuel Beds

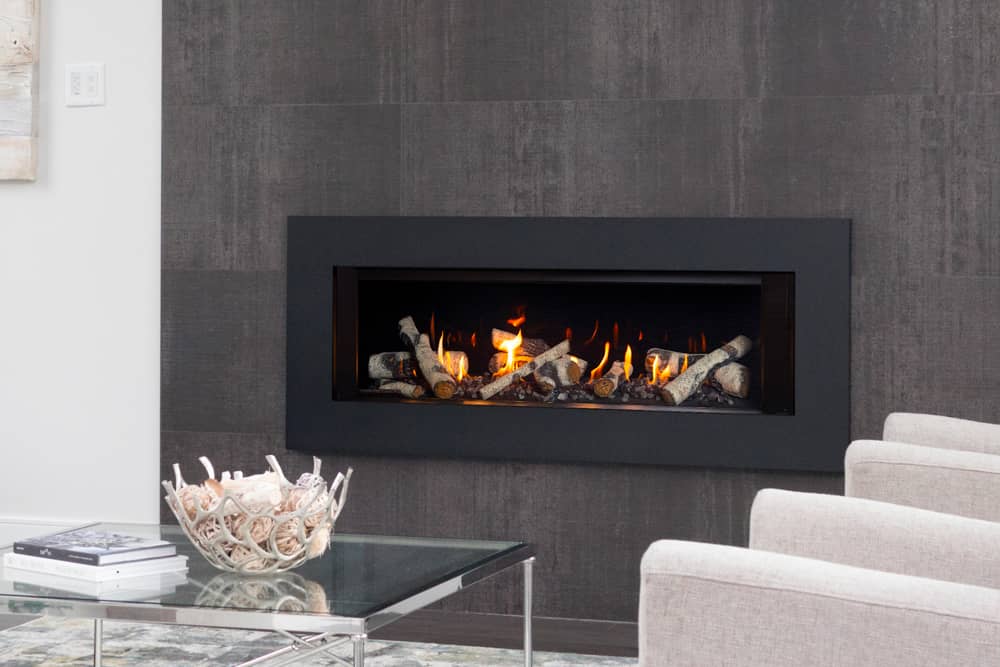

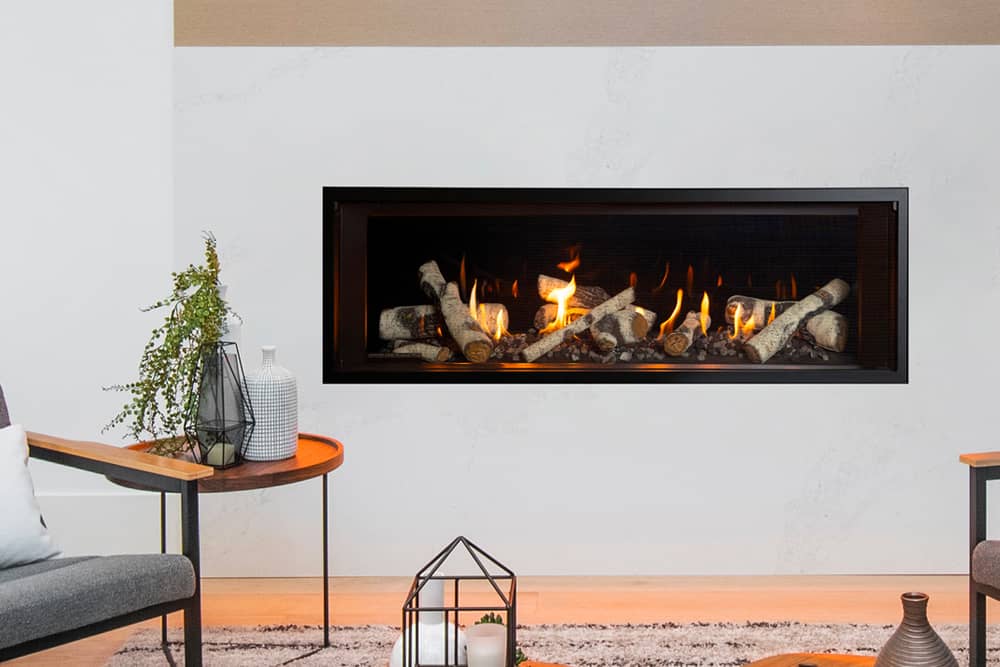

Valor LT2 Gas Fireplace Birch Logs
1705BLKV2 | Birch Logs
View Flames

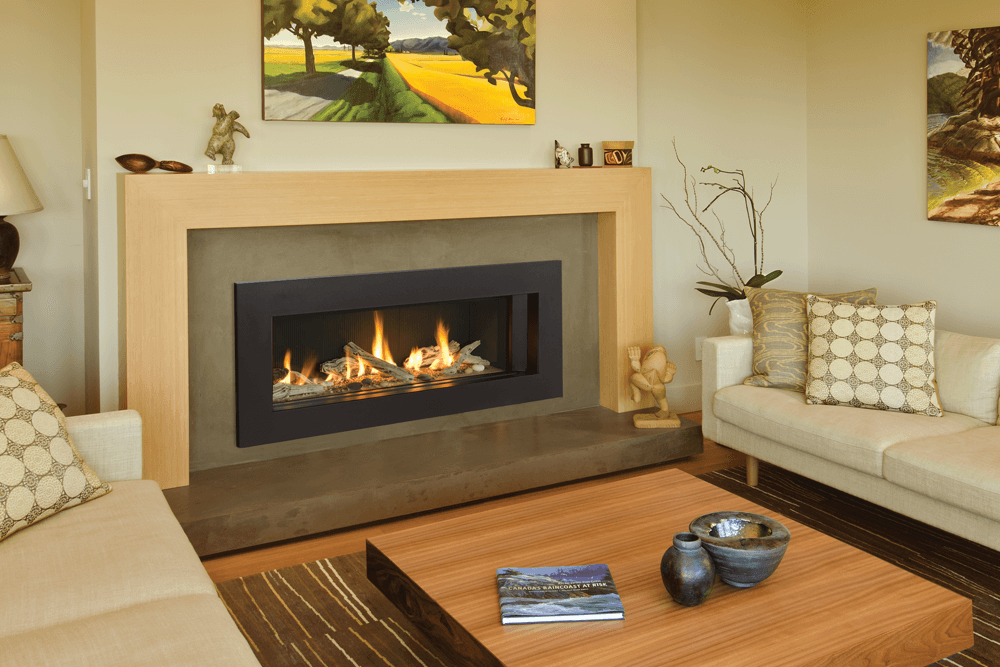

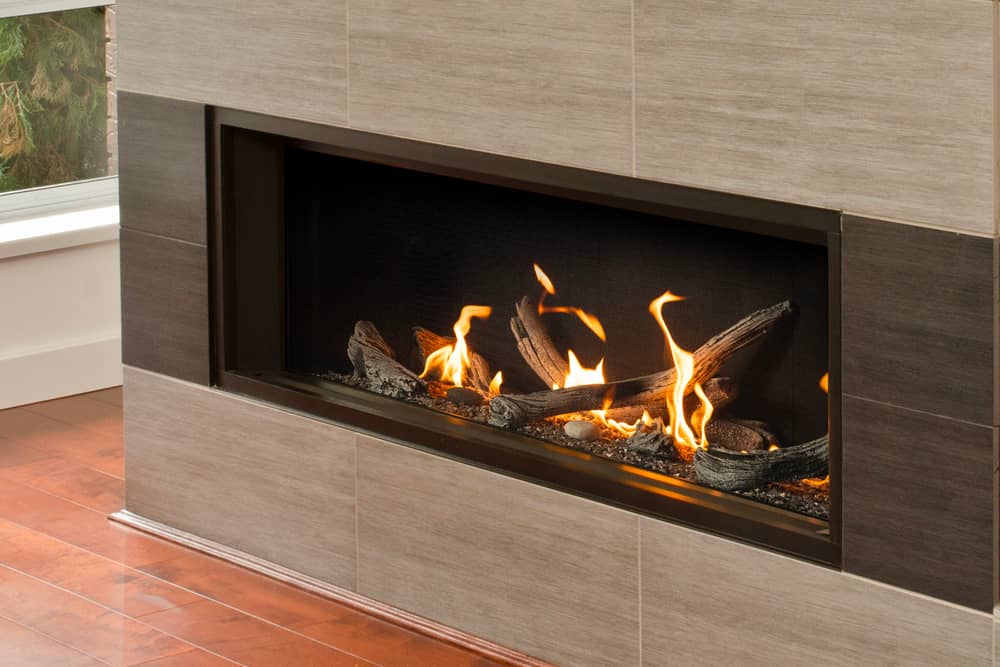

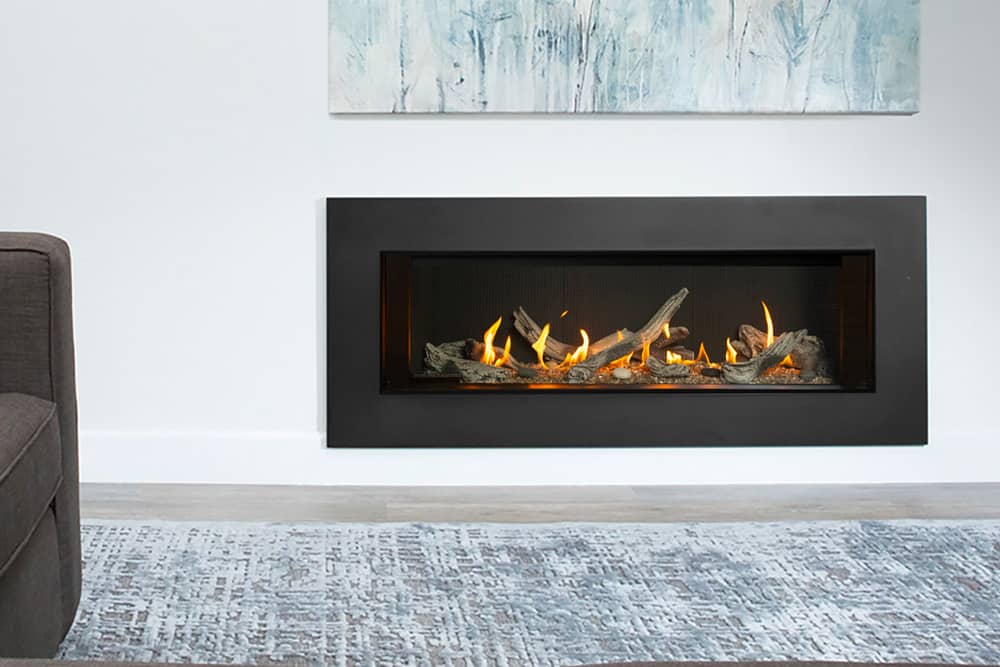

Valor LT2 Gas Fireplace Driftwood Logs
1705DWKV2 | Driftwood Logs
View Flames

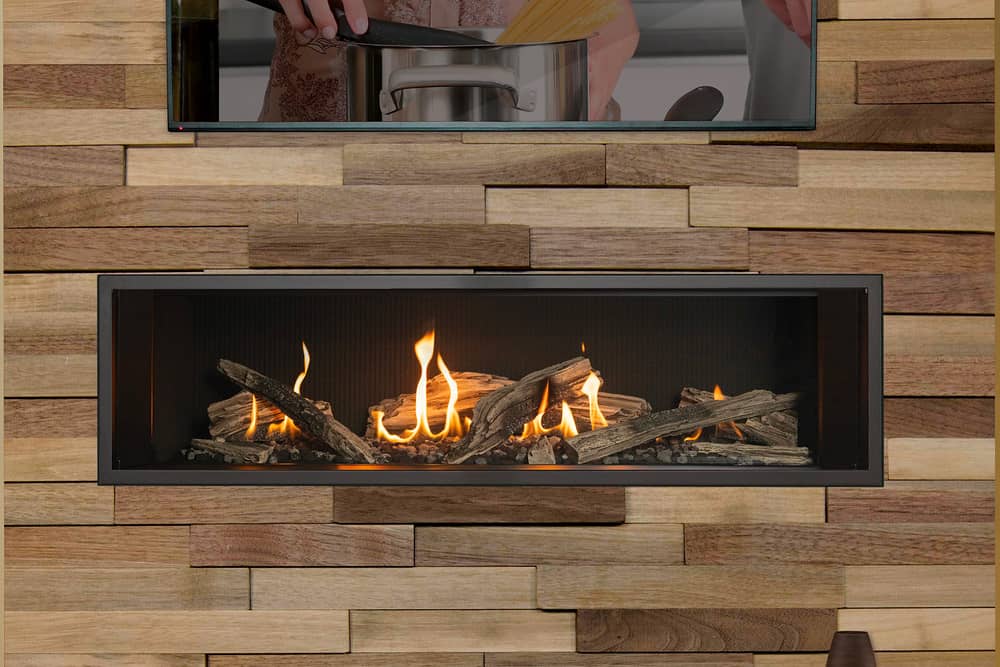

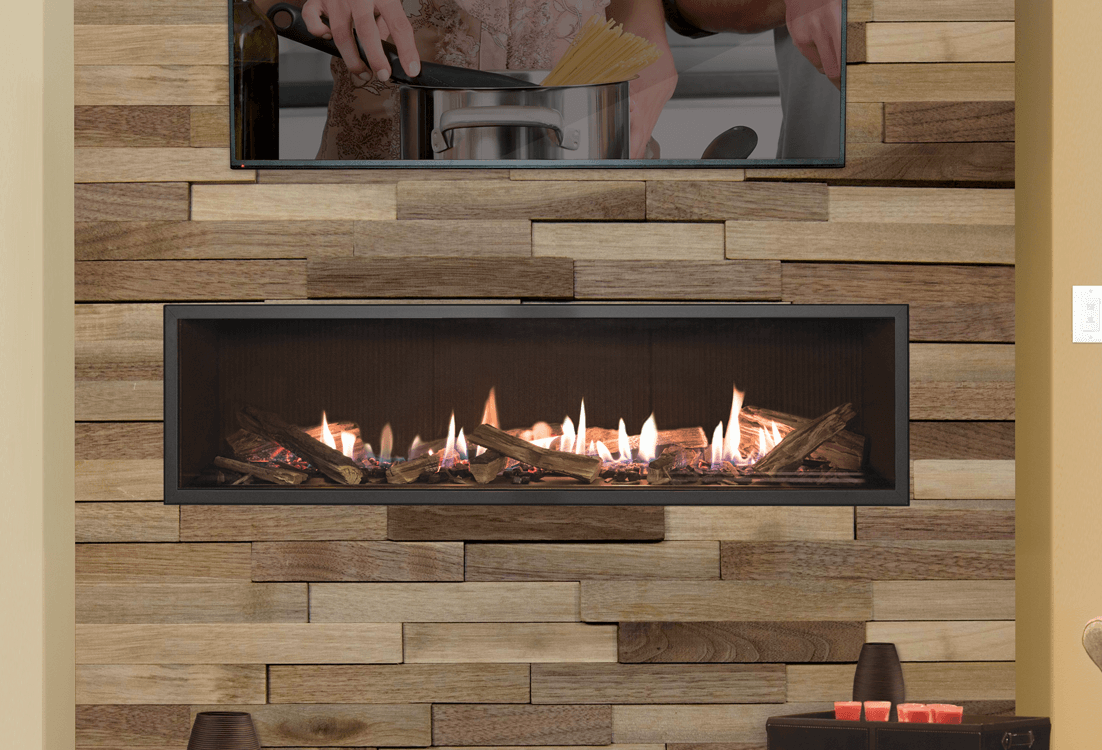

Valor LT2 Gas Fireplace Splitwood Logs
1705SWKV2 | Splitwood Logs
View Flames
Valor Murano Glass
1700DGM | Murano Glass
View Flames

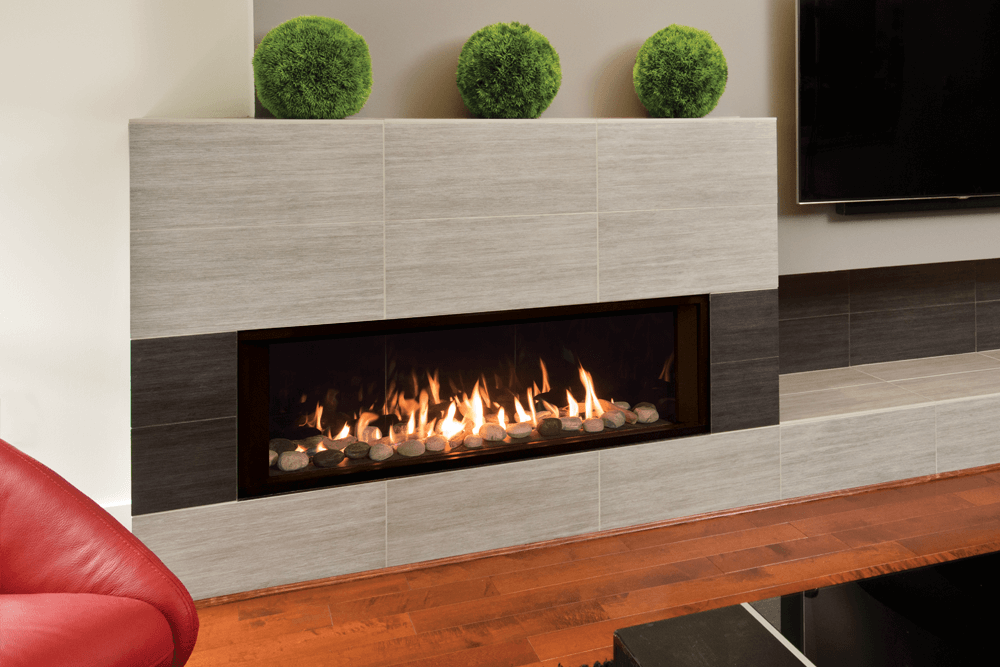

Valor Rock and Shale
1714RSS | Rock & Shale
View Flames
Liners
Gas Fireplace Fluted Black Liner
1715FBL | Fluted Black
View Now

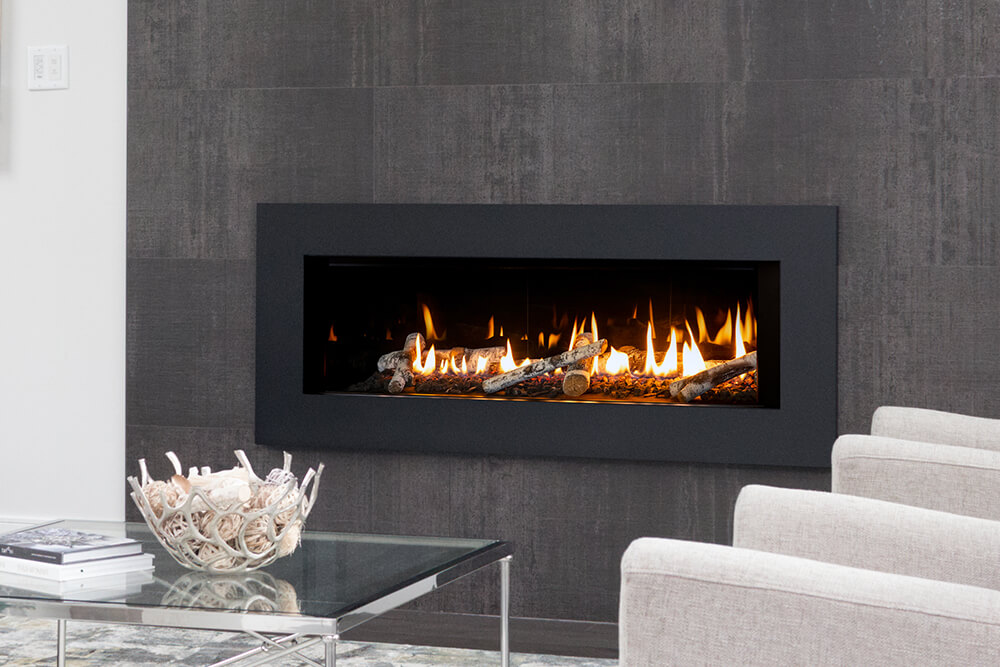

Gas Fireplace Reflective Black Glass Liner
1725RGL | Reflective Glass
View Now
Linear Fireplace Plain Black Liner
1760PBL | Plain Black
View Now
Engine Options
1700KN/KP L2 Homeowner's Manual - Natural Gas or Propane (requires fuel bed & liner)
1700KN/KP L2 Installation Manual - Natural Gas or Propane (requires fuel bed & liner)
Trims

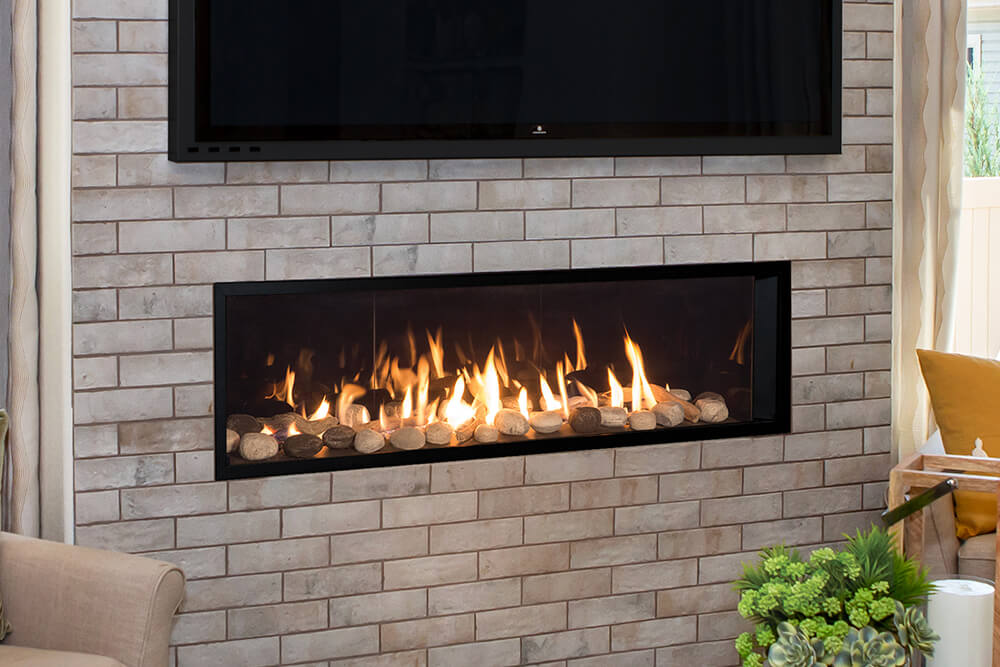

1730CIK 1" Clean Install Kit (requires Valor HeatShift™) (51-1/16"w x 15-13/16"h)
1750LSBv2 5 ¼" Trim - Black (59 ½"w x 24-5/8"h)

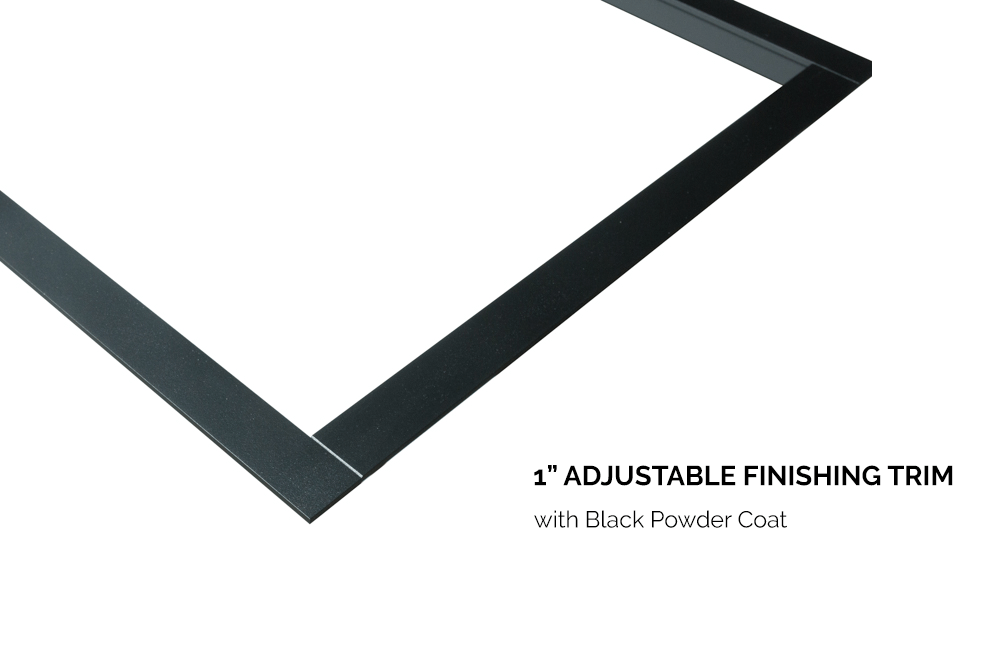

1775LFB 1" Adjustable Finishing Trim - Black (51-3/8"w x 16 ¼"h)

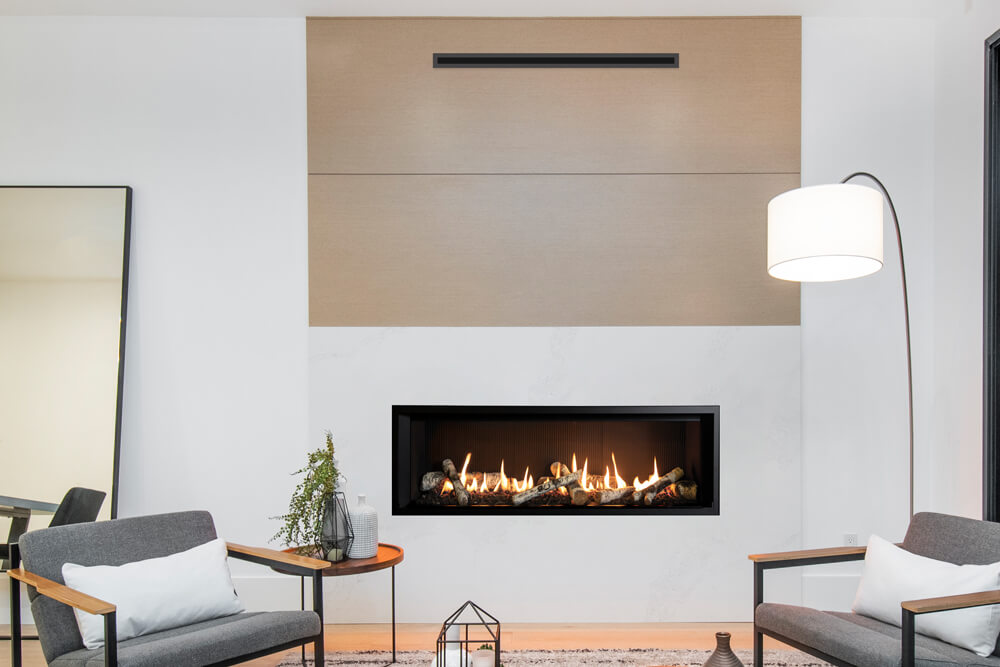

L2 with Valor HeatShift™
L1/L2/L3 HeatShift Planning and Installation
Compatible with: LDK1, LDK2, LDK3, LDK4, LDK5, LDK6, LDK7, LDK9, and LDK10.
Brochure HeatShift reduces wall temperatures above the fireplace.
Optional Accessories
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
1156CLA Co-linear Adapter Kit
1270RBK Valor HeatSplit - Remote Heat Distribution System
1595CFKV2 Circulating Fan Kit - requires GV60VM (not recommended with HeatShift™)

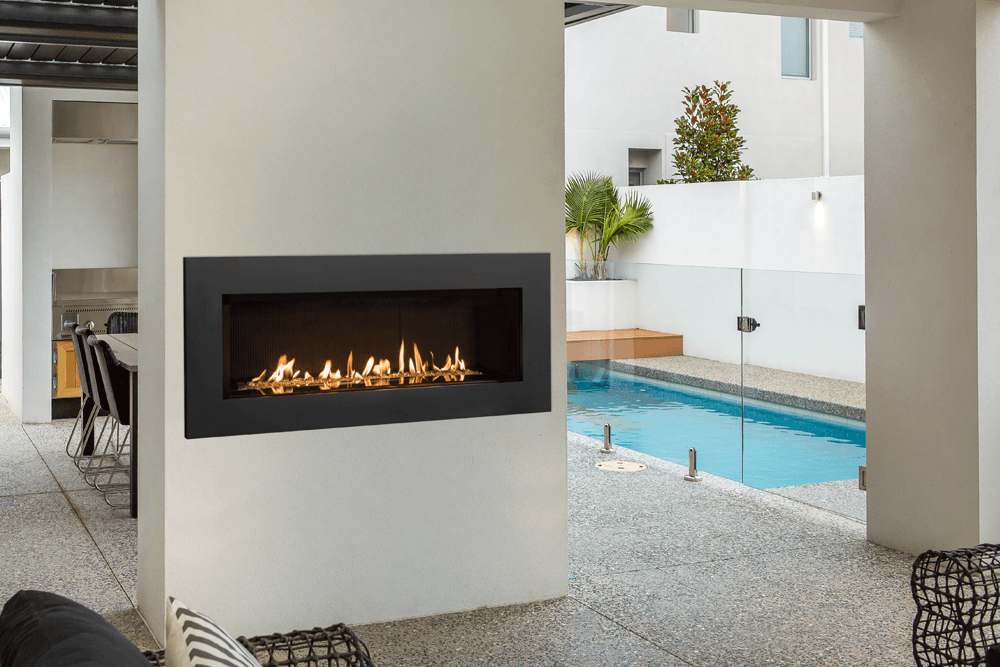

GV60CKO Outdoor Conversion Kit
GV60PAK Power Adapter Kit
GV60VM GV60 V-Module Kit
GV60WiFi GV60 WiFi Module Kit

Downloads

Additional Manuals or Options
Valor 10 Remote Valor 10 Remote Manual and Quick Guide
Valor 10 Mobile App Valor 10 WiFi Control & Upgrade Instructions
Specifications Framing, dimensions and clearances
1705DWKV2 Addendum Properly install DWKV2 log sets in an L2/LX2.
Outdoor Conversion Convert for your fireplace for outdoor use.
RBWSK Remote Battery & Wall Switch
HeatShift™ Reduce wall temperatures above the fireplace.
Gas Conversion Kit
1700 NGK/PGK L2 Linear Gas Conversion Kit
Archived Models & Accessories
1506DRK Decorative Rock Kit
1700IN/IP L2 1700I Fireplace
1700IN/IP L2 1700I Specifications
1700JN/JP L2 1700J Fireplace
1700JN/JP L2 1700J Specifications
1725EBL L2 Enamel Liner Air Deflectors
1740SSL Stacked Stone Liner
1750LS L2 ¼" Trims

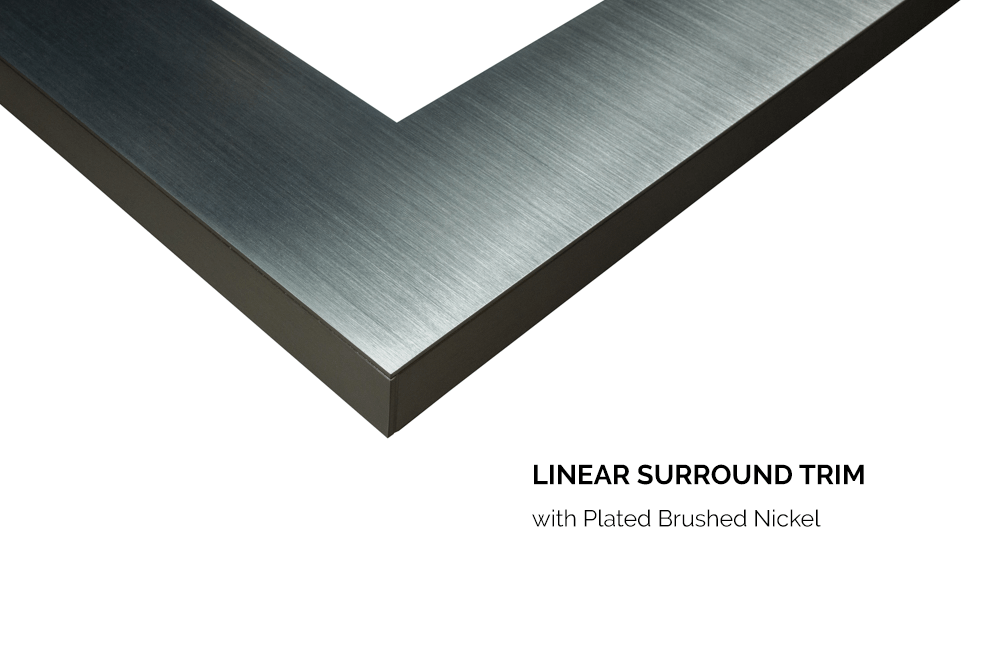

1750LSPv2 5 ¼" Trim - Brushed Nickel

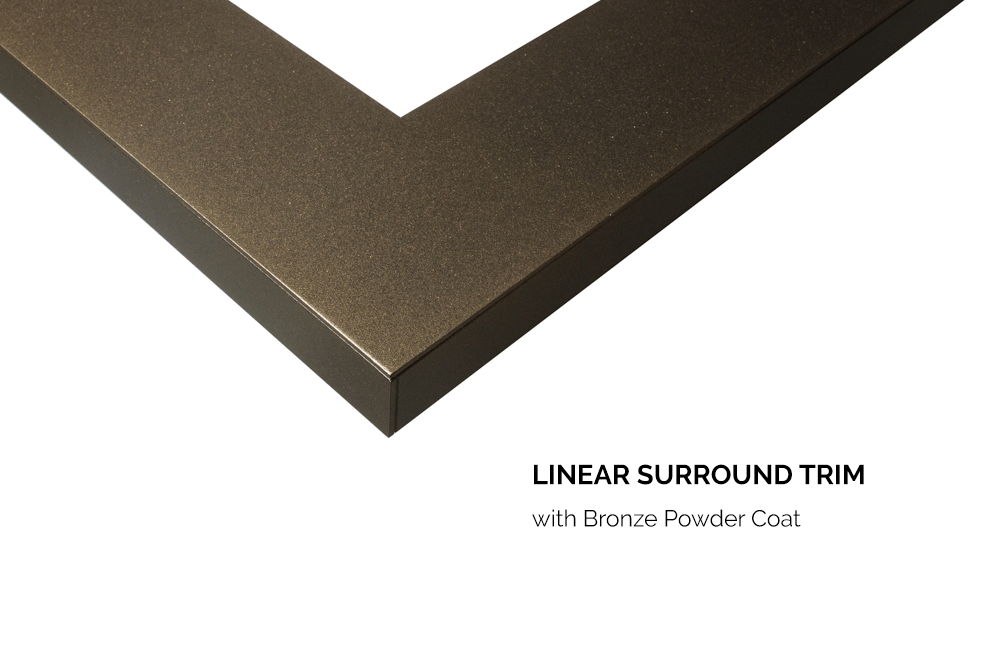

1750LSZv2 5 ¼" Trim - Bronze
1755LFB L2 1" Trim
1770RCS L2 GRC Sandstone Surround
Valor Fireplaces Safety Information

FIREPLACE SAFETY

A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
