L3 Linear Fireplace

Home > Gas Fireplaces > L3 Gas Fireplace



L3 Gas Fireplace

The L3 is Valor's largest linear gas fireplace. At 66 ¼ inches, the L3 is noticeably wider than the L2 and features the newly introduced birch log and stacked stone liner media options. Due to its highly efficient design, the L3 utilizes standard 6 ⅝" ventilation systems making it a practical option with a simple installation.

The Valor HeatShift System™ is highly recommended for installations where surrounding structural areas must remain at cooler temperatures.

Specifications

Model Max Input Min Input Max Output Energuide
1800KN 42,000 23,000 30,484 66.46%
1800KP 42,000 23,000 30,484 66.46%
Gas Type Natural Gas (NG) or Propane (LPG)
Valor 10 Remote Quick Guide | Manual | Mobile App
Viewing Area 64" w x 14 ½" h = 928"²
Framing & Venting Refer to the Installation Manual.
HeatShift™ Installation & Planning
Wall Control RBWSK
Safety Features Barrier screen | Learn More
CAD's Fireplace CAD details.
MORE

HEATSHIFT SYSTEM™

Reduce wall temperatures and improve overall performance with HeatShift. This feature is ideal when adding heat sensitive items or materials directly above the fireplace, such as a wall-mounted TV. Valor HeatShift™

VALOR 10 MOBILE APP

Take full control of your fireplace with intuitive and interactive options—including the ability to program your fireplace, set a countdown timer, or implement child safety locks.

Valor 10 is now available.

Options And Features

Fuel Beds

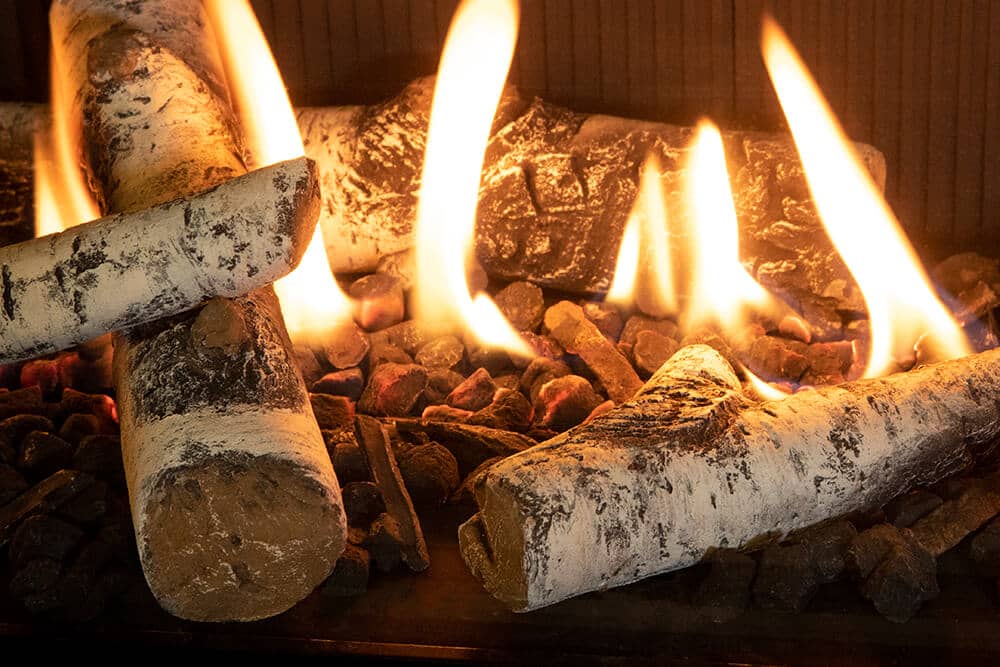

Linear Birch Logs
1800BLK | Birch Logs
View Flame Video

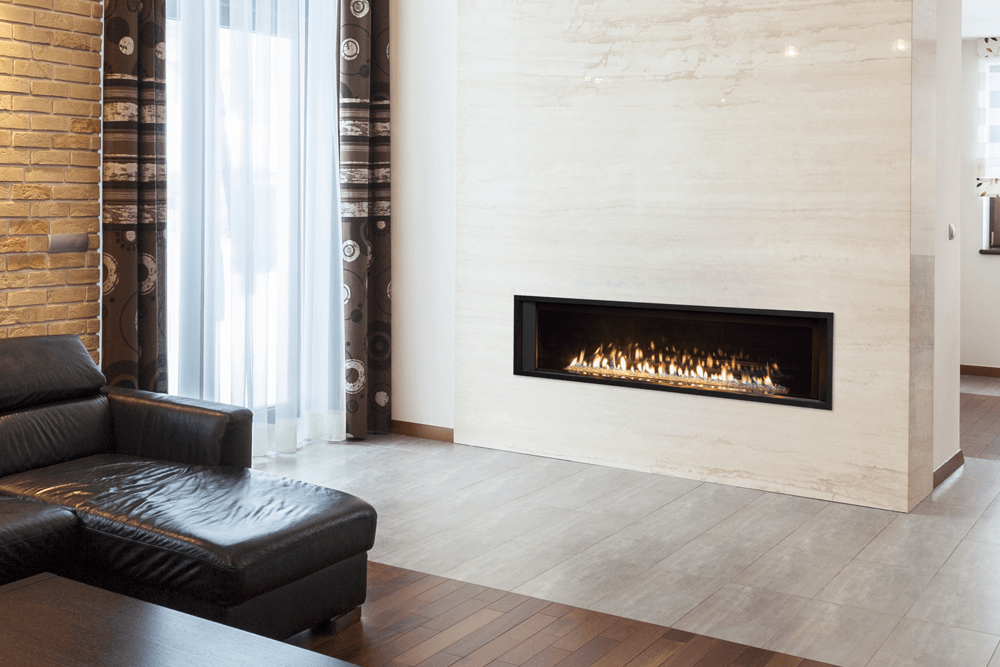

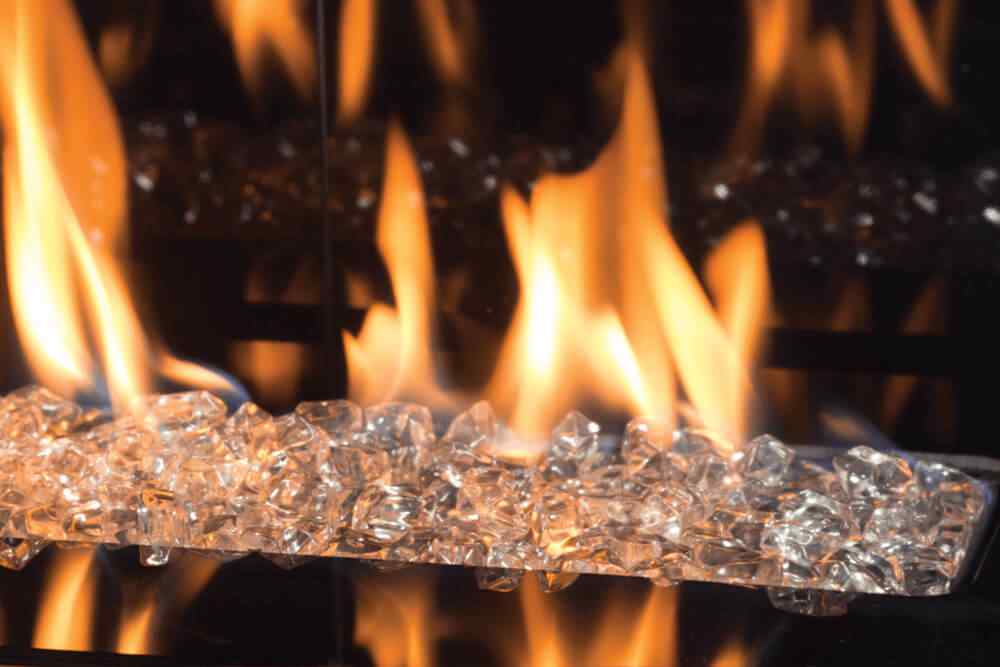

L3 Linear Gas Fireplace Murano Glass
1800DGM | Murano Glass
View Flame Video

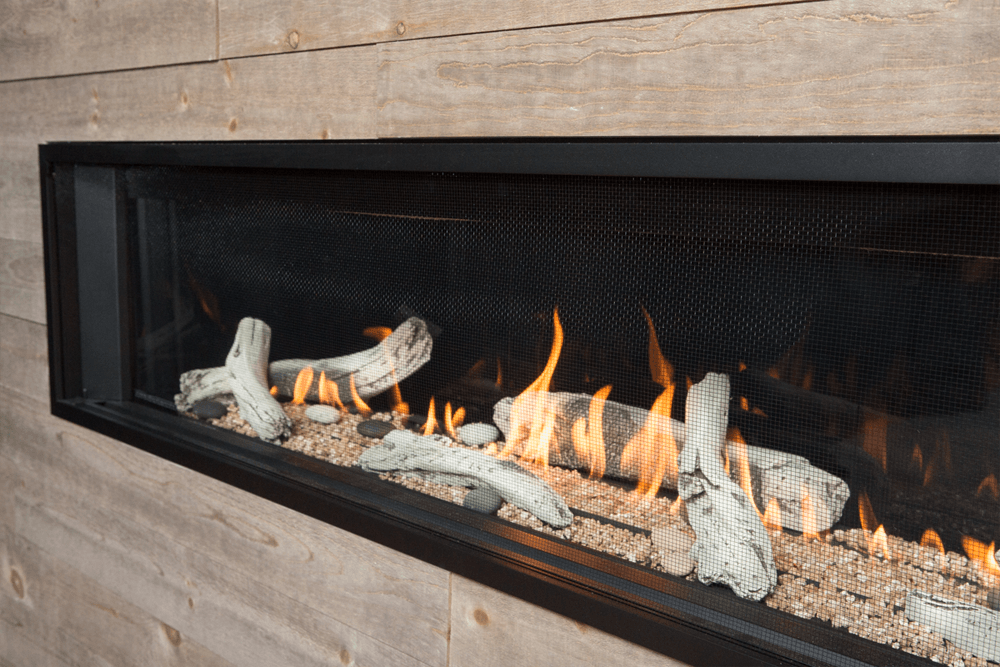

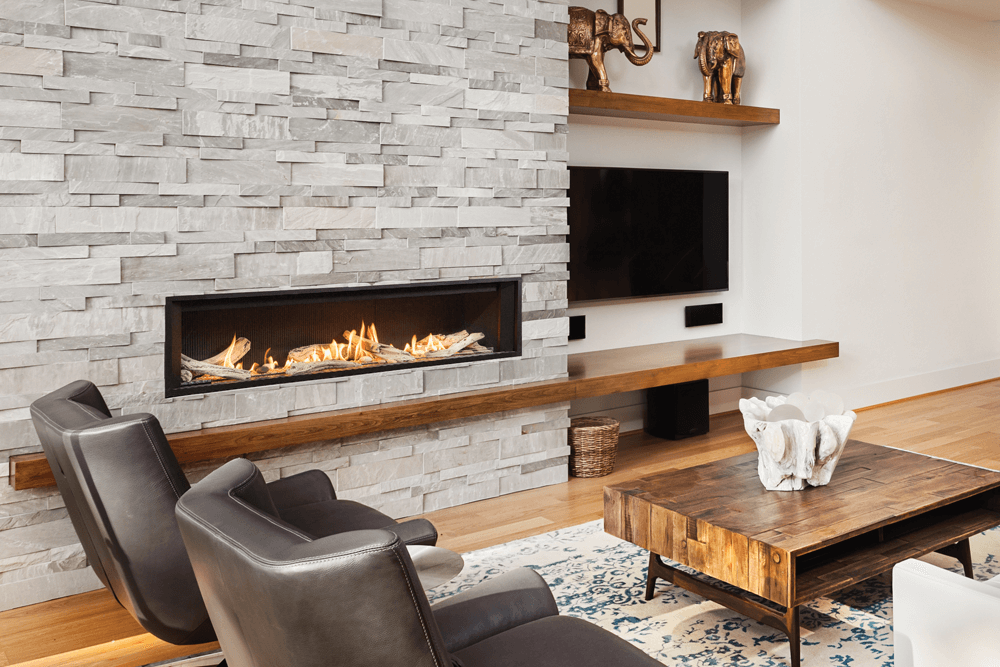

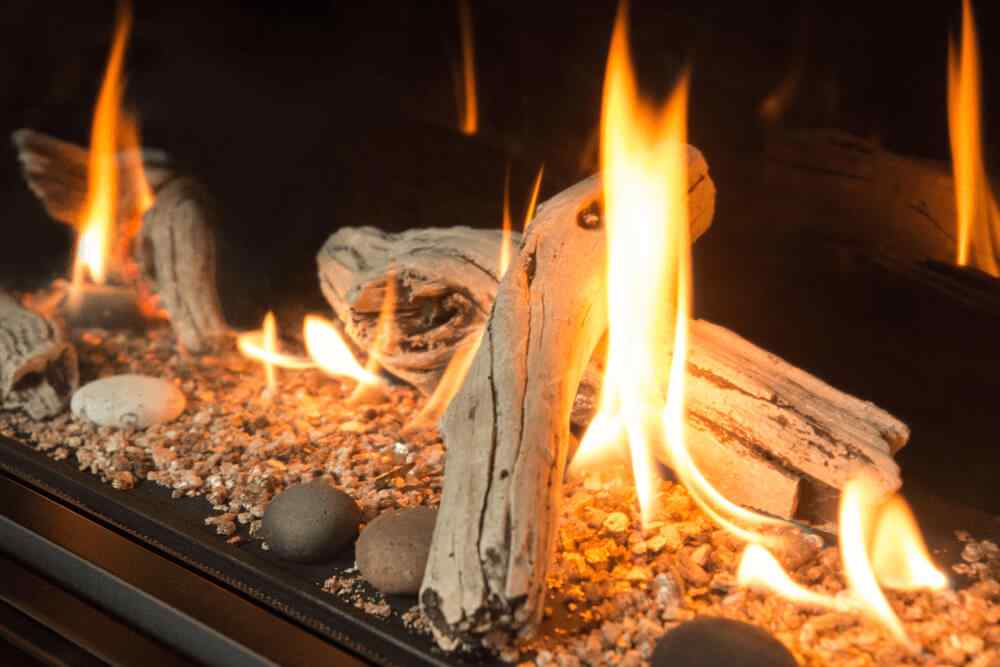

L3 Linear Gas Fireplace Driftwood
1800DWKV2 | Driftwood
View Flame Video

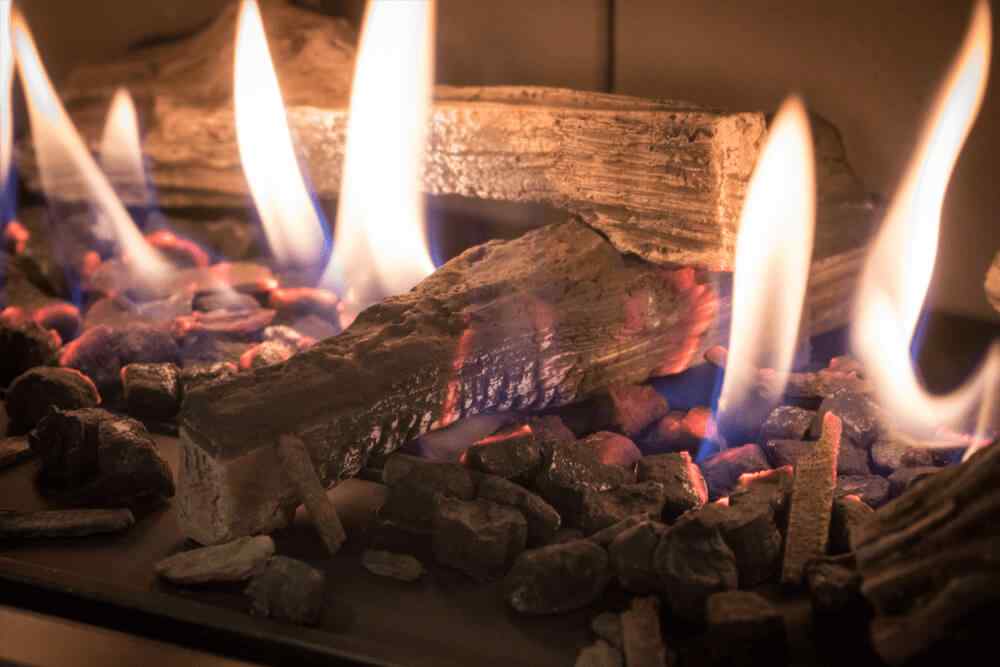

L3 Linear Gas Fireplace Splitwood
1800SWK | Splitwood Logs
View Flame Video
Liners
Gas Fireplace Fluted Black Liner
1815FBL | Fluted Black
View Now
Gas Fireplace Reflective Black Glass Liner
1825RGL | Reflective Glass
View Now

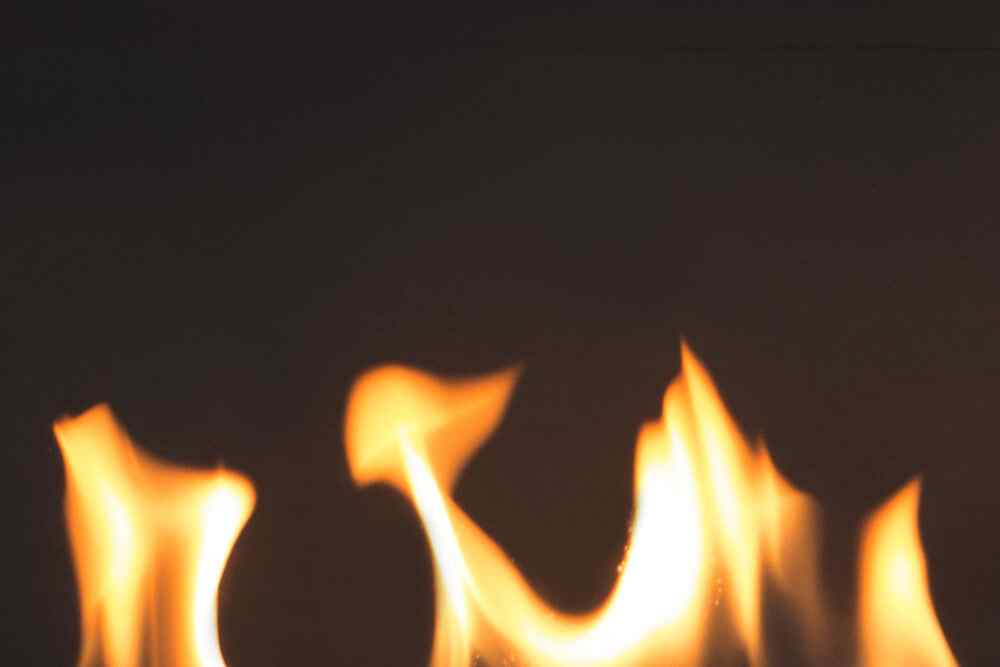

Linear Fireplace Plain Black Liner
1860PBL | Plain Black
View Now
Engine Options
1800KN/KP L3 Homeowner's Manual - Natural Gas or Propane (requires fuel bed & liner)
1800KN/KP L3 Installation Manual - Natural Gas or Propane (requires fuel bed & liner)
Trims

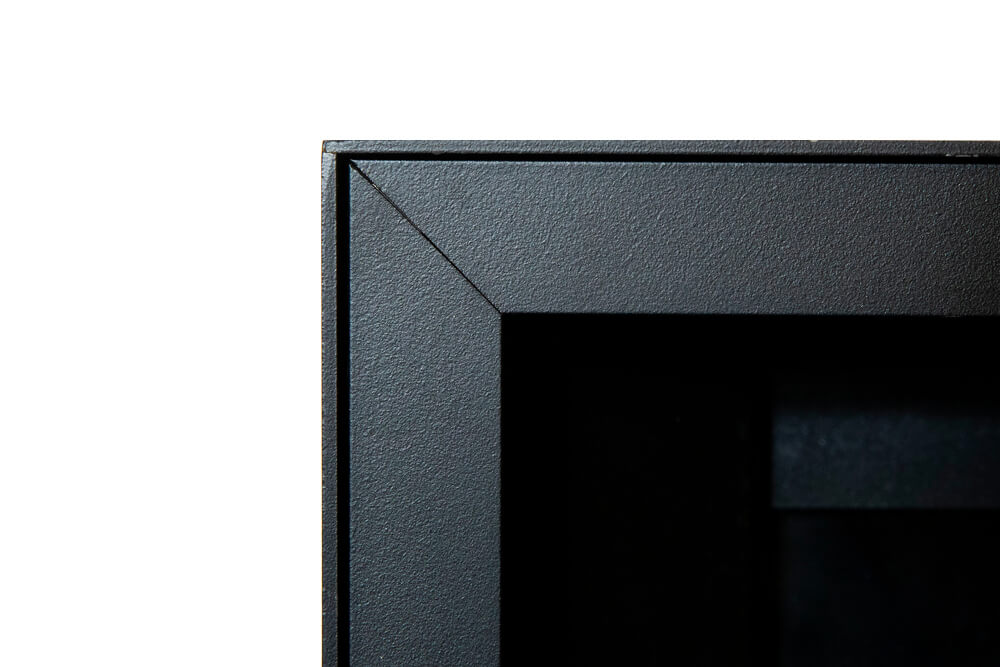

1830CIK 1" Clean Install Kit (requires Valor HeatShift™) (65-3/16"w x 15-13/16"h)

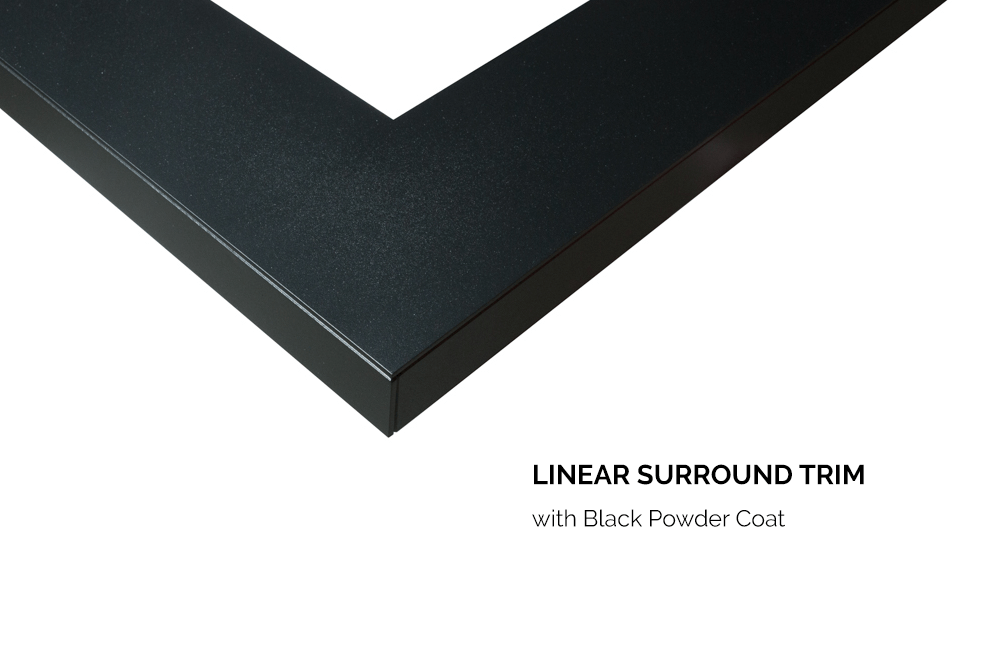

1850LSB 5 ¼" Trim - Black (73-3/16"w x 24-5/8"h)

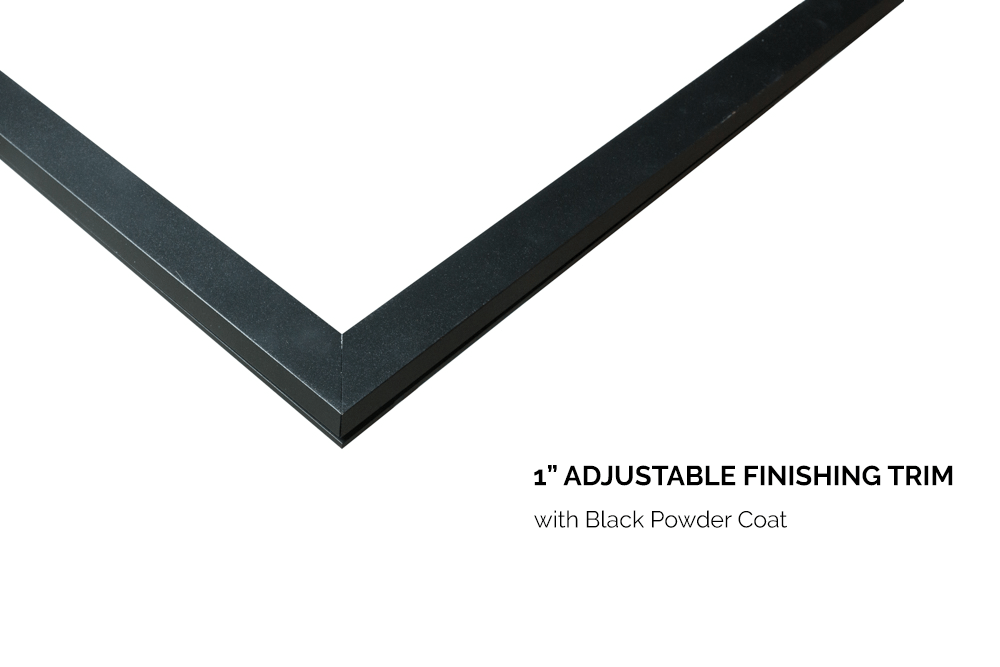

1875LFB 1" Adjustable Finishing Trim - Black (65 ¾"w x 16 ¼"h)

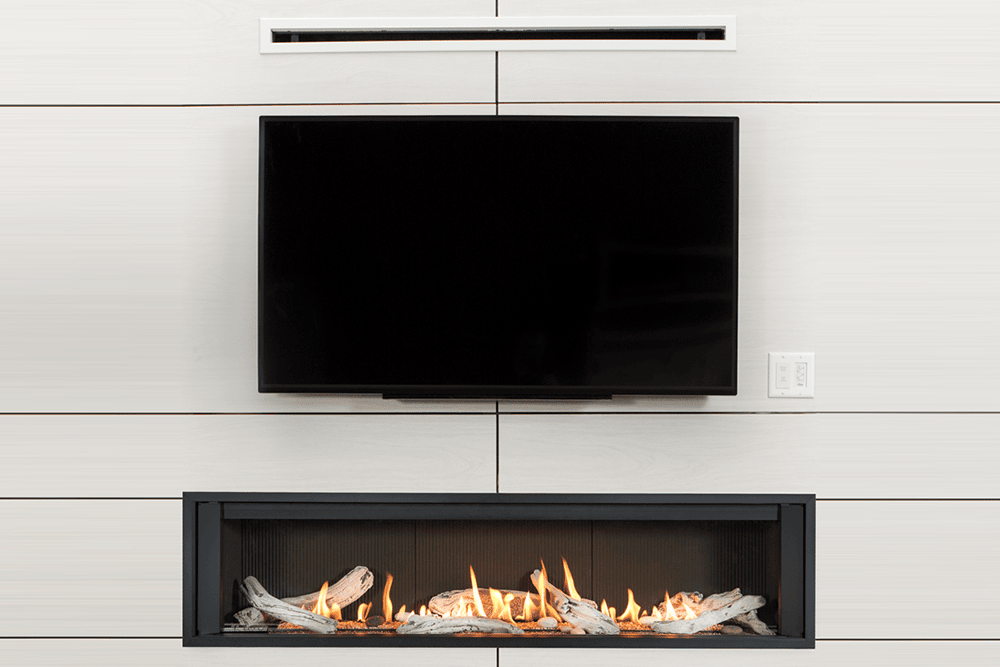

L3 with Valor HeatShift™
L1/L2/L3 HeatShift Planning and Installation
Brochure HeatShift reduces wall temperatures above the fireplace.
Optional Accessories

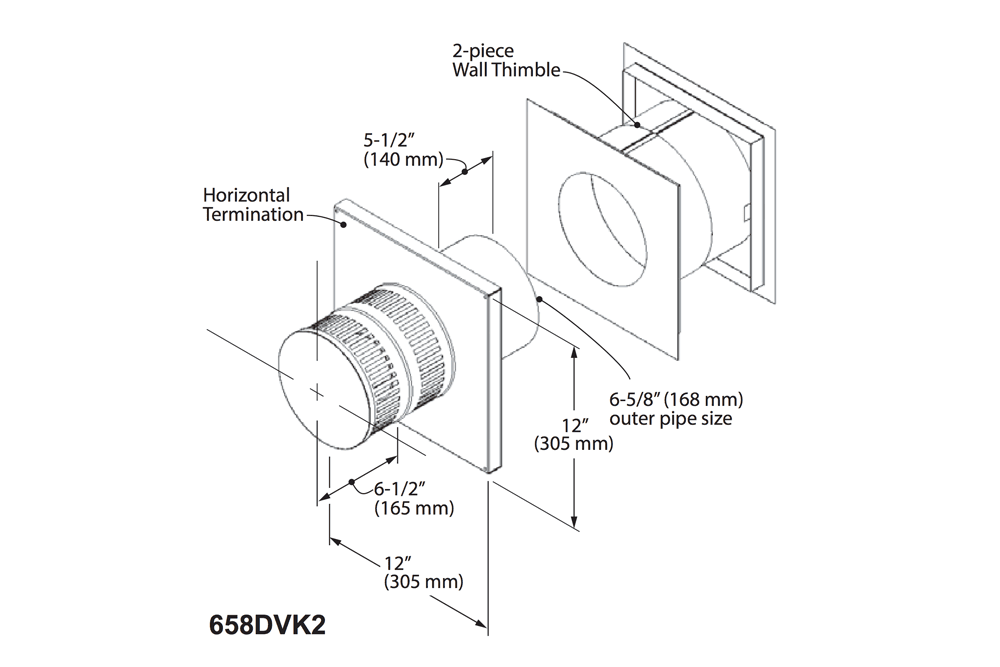

658DVK2 Direct Vent Sidewall Terminal & Wall Thimble

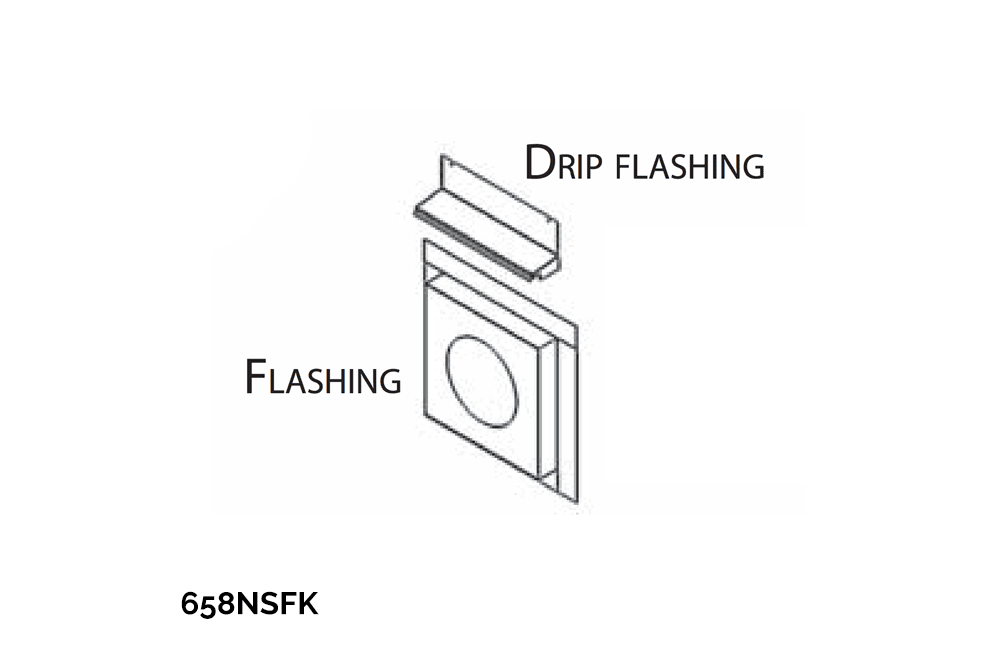

658NSFK New Siding Flashing Kit

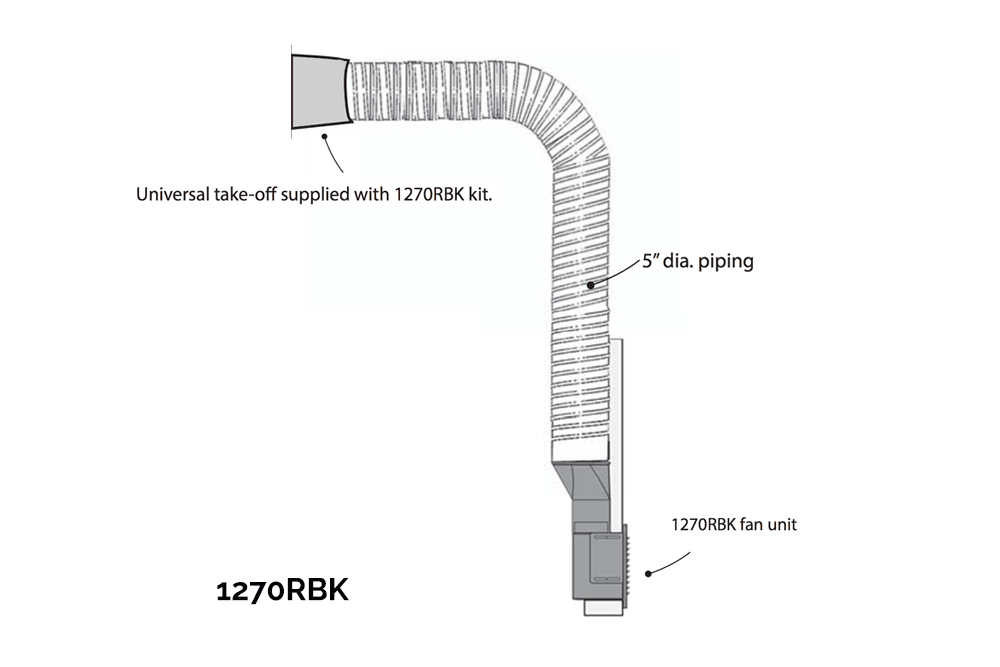

1270RBK Remote Blower Kit

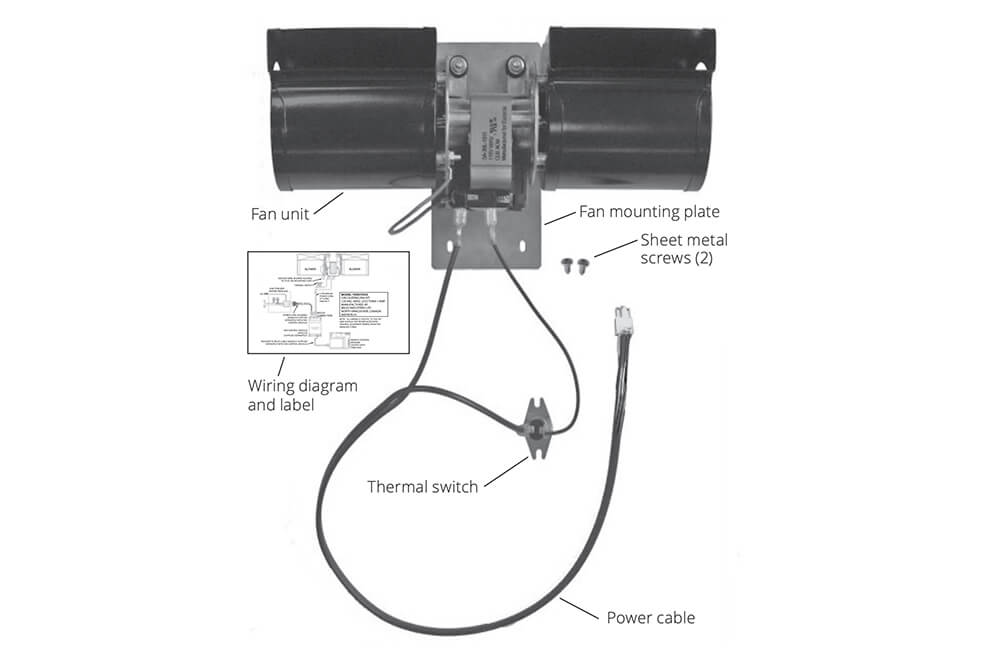

1595CFKV2 Circulating Fan Kit - requires GV60VM (not recommended with HeatShift™)
GV60CKO Outdoor Conversion Kit
GV60PAK Power Adapter Kit

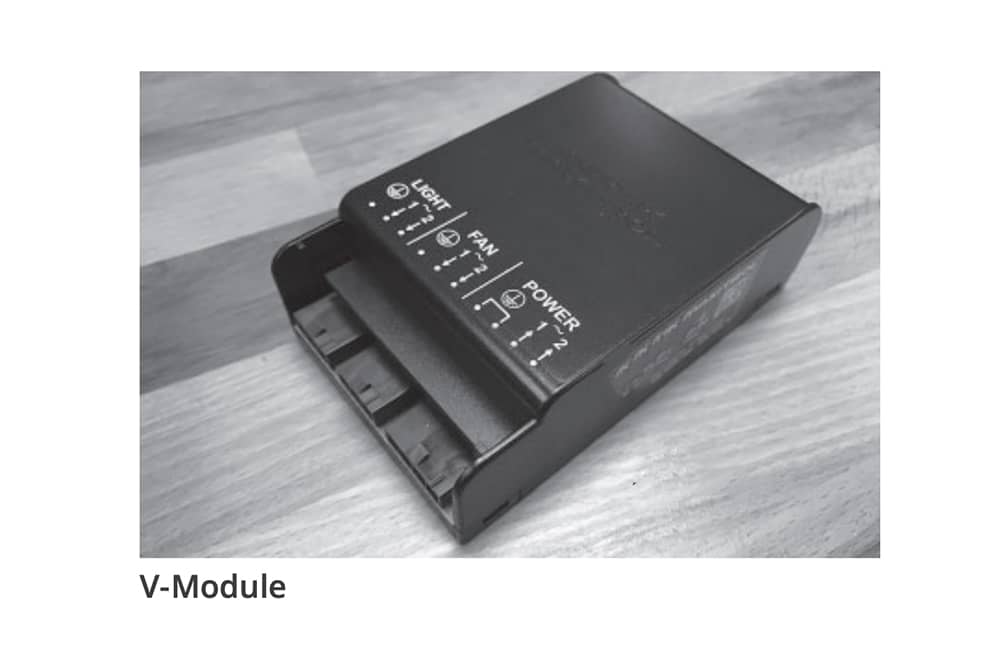

GV60VM GV60 V-Module Kit

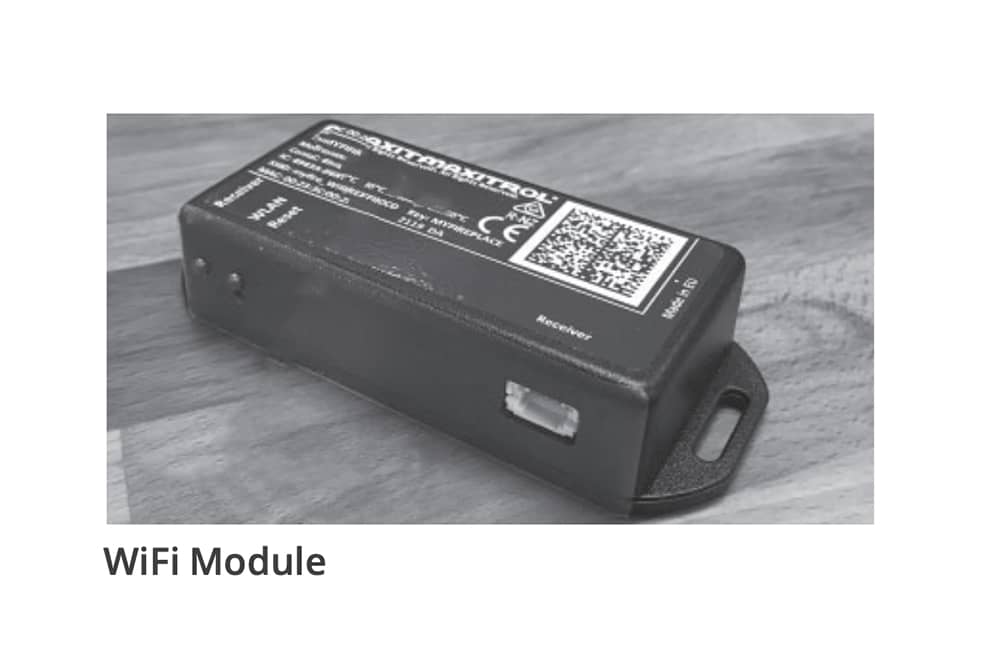

GV60WiFi GV60 WiFi Module Kit

Downloads

Additional Manuals or Options
Valor 10 Remote Valor 10 Remote Manual and Quick Guide
Valor 10 Mobile App Valor 10 WiFi Control & Upgrade Instructions
Specifications Framing, dimensions and clearances
1800BLK Birch Log Kit
1800DWKV2 Driftwood Kit
Outdoor Conversion Convert for your fireplace for outdoor use.
RBWSK Remote Battery & Wall Switch
HeatShift™ Reduce wall temperatures above the fireplace.
Gas Conversion Kit
1800 NGK/PGK L3 Linear Gas Conversion Kit
Archived Models & Accessories

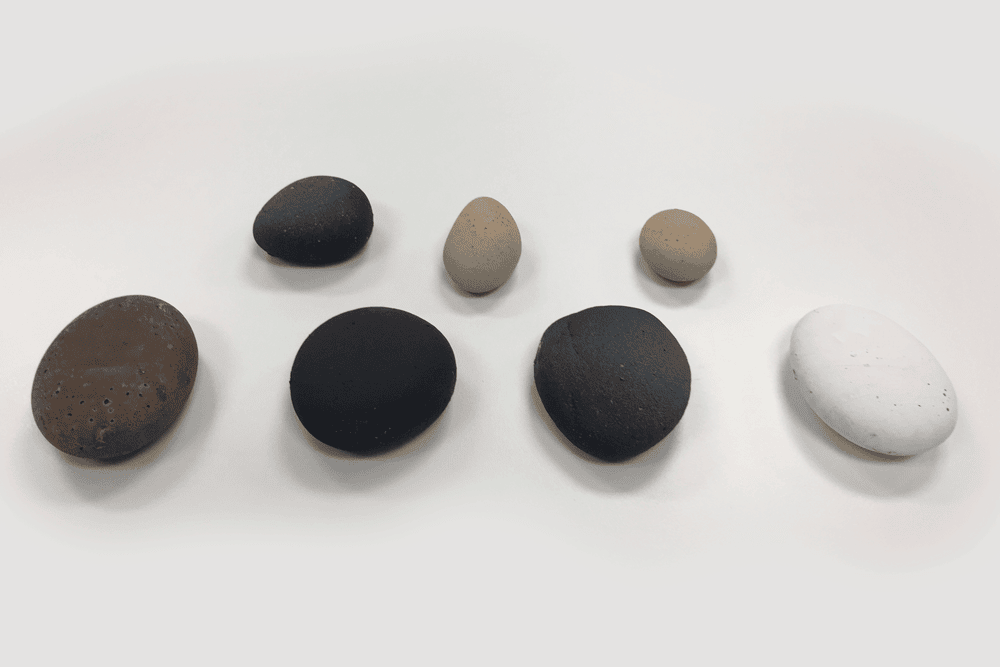

1506DRK Decorative Rock Kit
1800JN/JP L3 1800J Fireplace
1800JN/JP L3 1800J Specifications
1800J NGK/PGK L3 1800J Conversion Kit

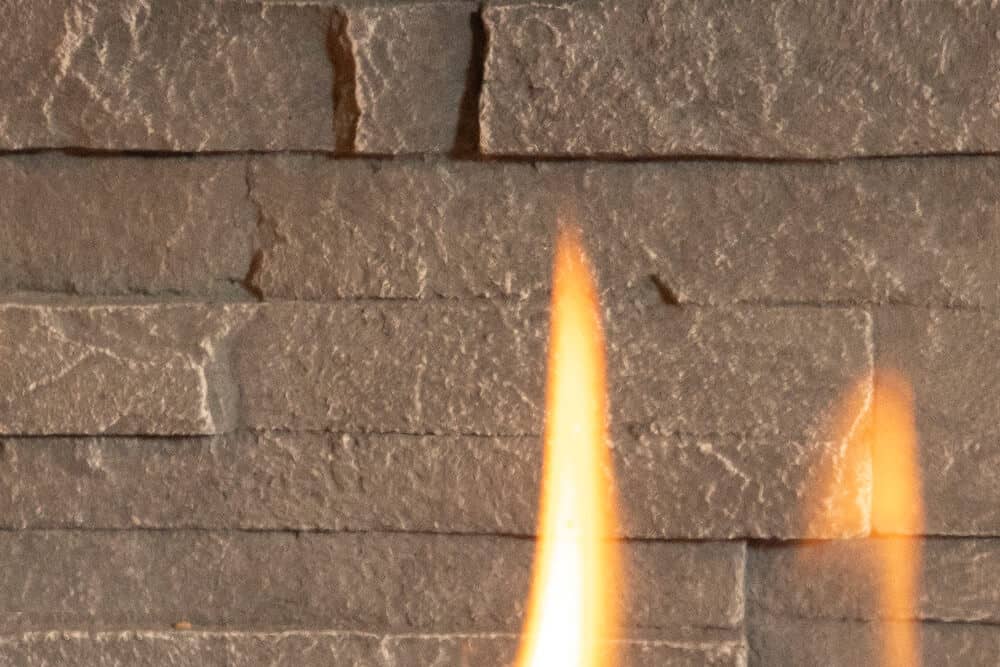

1840SSL Stacked Stone Liner
Valor Fireplaces Safety Information

FIREPLACE SAFETY

A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
