LX2

Multi-Sided Fireplace

3-Sided and Corner options

Models:
  • 2200JN/JP
  •  2200LJN/P
  • 2200RJN/P
  • Heat
    Shift
  • Remote
    Control
  • High
    Efficiency

OVERVIEW

Valor's multi-sided linear fireplace is ideal for perpendicular rooms and now offers two engine styles to choose from. The 3-Sided engine is designed for 180-degree enjoyment, while the Corner engines offers design flexibility. The LX2 provides outstanding radiant heat performance that will heat any living space. Available with splitwood, driftwood, rock and shale, and two types of glass fire beds, the LX2 will suit homeowners who value aesthetics, performance and safety.

The LX2 supports the Valor HeatShift System™, which is required for installations where surrounding structural areas must remain at cooler temperatures.

Specifications

Model Max Input Min Input Max Output Energuide
2200JN 36,000 19,000 26,028 67.40%
2200JP 36,000 21,000 26,028 67.40%
2200L/RN 36,000 19,000 25,975 65.90%
2200L/RP 36,000 21,000 25,975 65.90%
Gas Type Natural Gas (NG) or Propane (LPG)
Remote Control ValorStat Max GV60
Framing & Venting Refer to Owner's Manual.
Wall Control RBWSK
Additional Features Overhead lighting & safety screen.
CAD's Fireplace CAD details.
MORE

BLACK GRANITE SHELVES

The newly introduced granite shelves for the LX2 offer a precise fit and add an entirely new aesthetic to your LX fireplace. Black granite shelves are now available for 3-Sided and Corner LX2 engines. Learn more by contacting an authorized Valor dealer.

Options And Features

Fuel Beds
1700SWK | Splitwood Logs
View Flame Video
1705DWK | Driftwood
View Flame Video

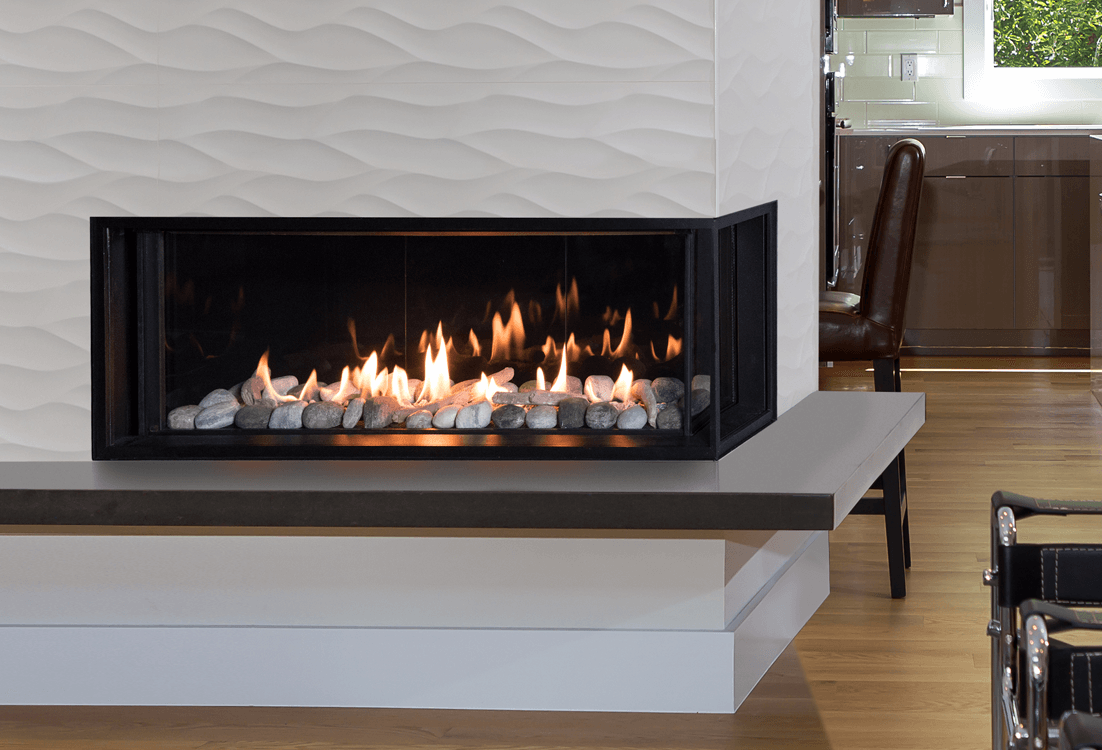

1714RSS | Rock & Shale
View Flame Video
2200DGM | Murano Glass
View Flame Video
2200DGS | Decorative Glass
View Flame Video

Liners and Panels
2200FBL/P | Fluted Black
View Now
2200LML/P | Limestone
View Now
2200RGL/P | Reflective Glass
View Now

Please note that when ordering a corner engine, you will be required to order an additional corner panel with the liner.

Engine Options
2200JN/JP LX2 3-Sided Engine - Natural Gas or Propane (requires fuel bed & liner)
2200RJN/RJP LX2 Right Corner Engine - Natural Gas or Propane (requires fuel bed & liner)
2200LJN/RJP LX2 Left Corner Engine - Natural Gas or Propane (requires fuel bed & liner)
Optional Accessories
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
658NSFK New Siding Flashing Kit
1270RBK Remote Blower Kit
2200SFK Steel Framing Kit
2200LSB Black Granite Shelf (Lower) for use with 3-Sided engines
2200USB Black Granite Shelf (Upper) for use with 3-Sided engines
2200LSBC Black Granite Shelf (Lower) for use with Corner engines
2200USBC Black Granite Shelf (Upper) for use with Corner engines

Downloads

Additional Manuals or Options
Installation Checklist An installation guide for LX2 installations.
2200BSK Barrier Screen Kit
2200 Overhead Lighting Lighting Rail Overlay Kit
2200 HeatShift™ HeatShift™ is required when installing an LX2.
HeatShift™ Reduce wall temperatures above the fireplace.

FIREPLACE SAFETY

A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Learn more
