H4 Gas Fireplace

Designed as a four-sided version of the Horizon fireplace, the H4 Series eliminates the need for a traditional hearth in your living space. Elevated to your preferred height, the H4 nestles comfortably in any surrounding wall surface.

Customize for your desired application by choosing from two different backing plates in landscape or square and four inner bezel surrounds in copper, nickel painted, nickel plated, or black.


Model Max Input Min Input Max Output Energuide
650JN 24,000 6,500 17,506 71.30%
650JP 24,000 13,000 17,506 71.30%
Gas Type Natural Gas (NG) or Propane (LPG)
Remote Control Quick Guide | Manual
Viewing Area 26 ½" w x 14 ¾" h = 391"²
Framing & Venting Refer to Installation Manual.
Wall Control 1265WSK
Safety Features Fireplace Safety Tips
CAD's Fireplace CAD details.
Convert your Valor Fireplace for outdoors


Bring the comfort of your Valor gas fireplace outdoors with the easy-to-use outdoor conversion kit, and take advantage of Valor's radiant heat all year long.

Outdoor Gas Fireplaces.

Options And Features

Fuel Beds
H4 Gas Fireplace Driftwood
534DWK | Driftwood
View Flame Video

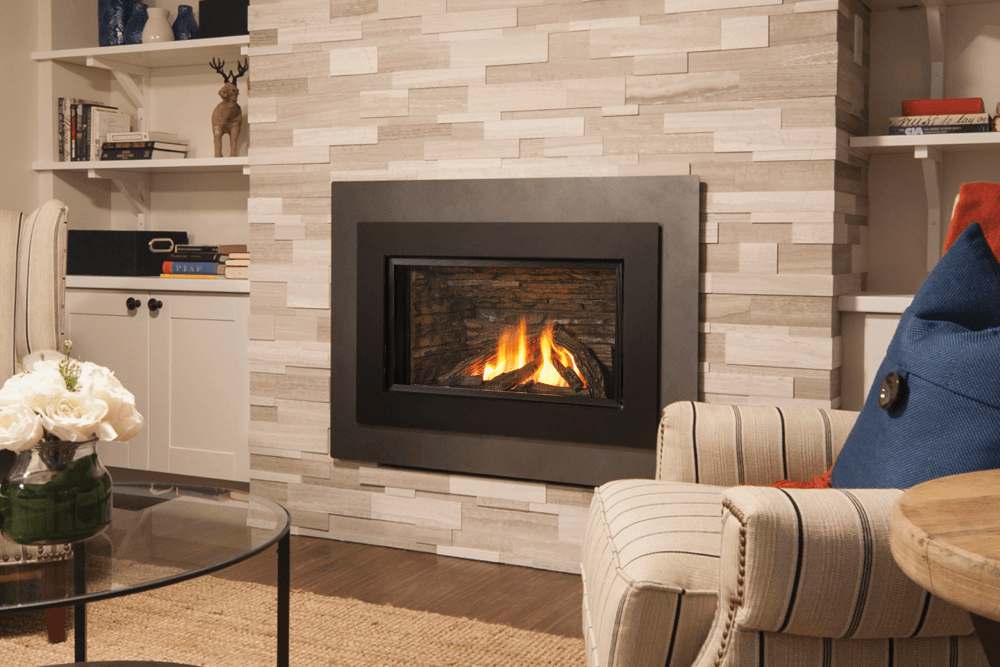

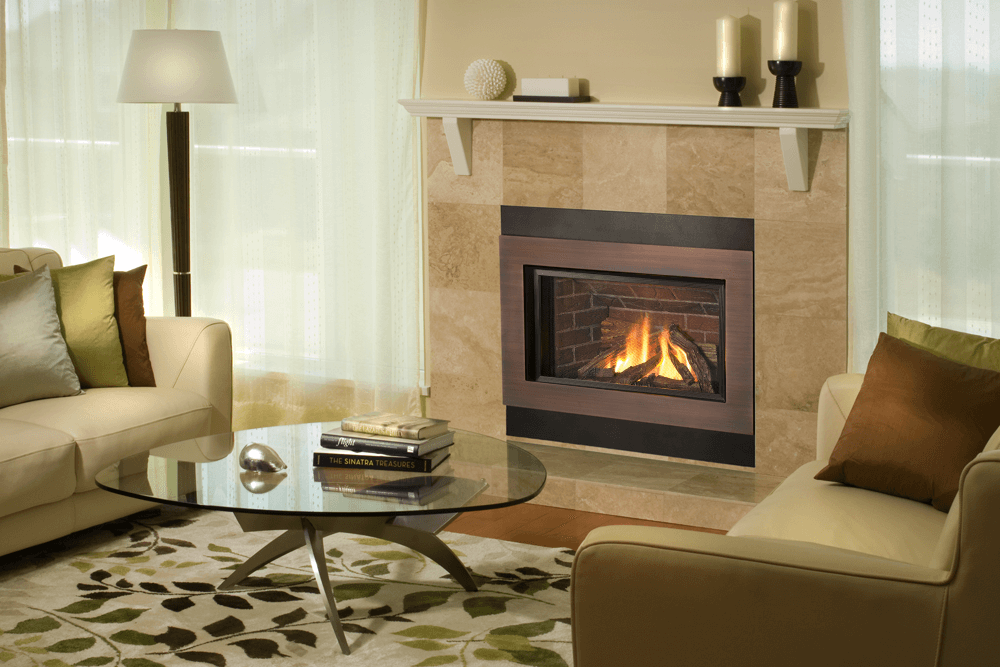

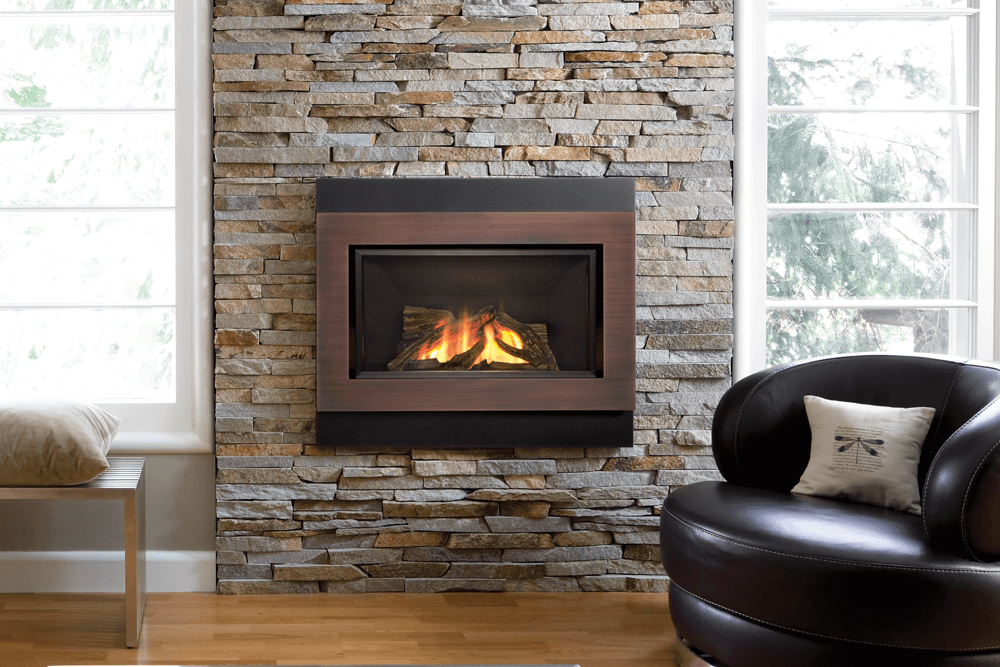

H4 Gas Fireplace Traditional Logs
534LSK | Logs
View Flame Video

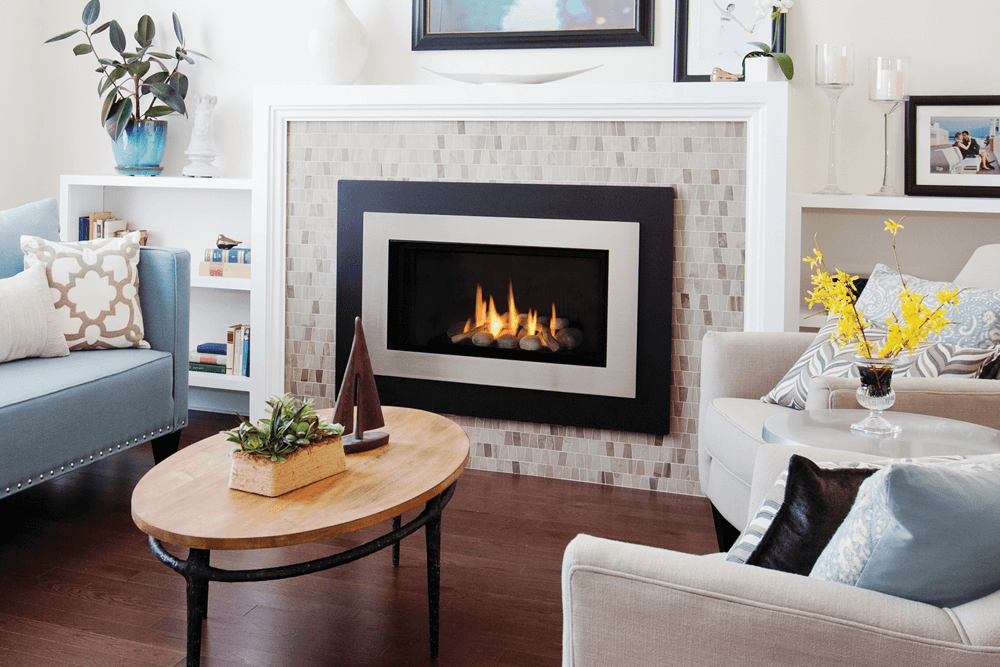

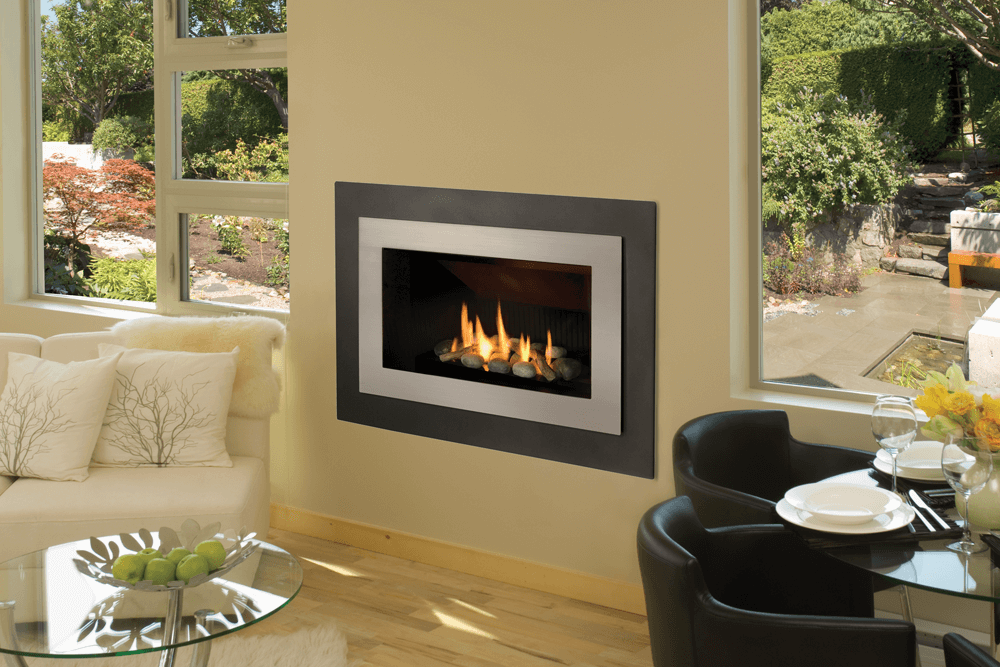

H4 Gas Fireplace Rock Set
534RSK | Rocks
View Flame Video

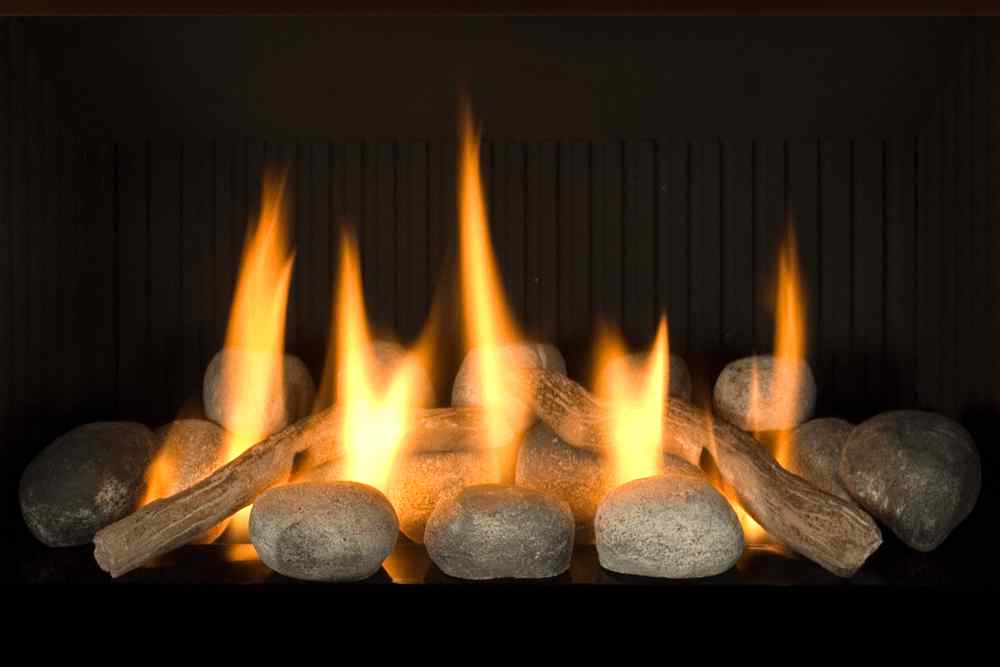

H4 Gas Fireplace Rocks with Decorative Rock Kit
761DRK | Decorative Rock Kit
View Flame Video
Gas Fireplace Reflective Black Glass Liner
618RGL | Reflective Glass
View Now
Gas Fireplace Fluted Black Liner
620FBL | Fluted Black
View Now
H4 Gas Fireplace Red Brick Liner
621VRL | Red Brick
View Now

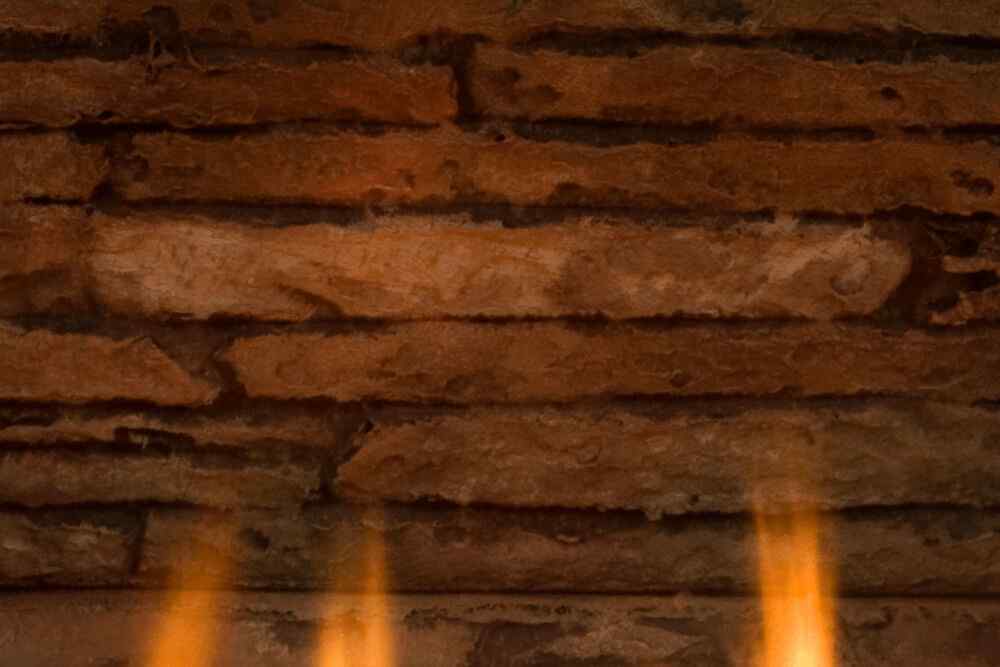

Gas Fireplace Ledgestone Liner
622LSL | Ledgestone
View Now
Engine Options
650JN/JP H4 Owner's Manual - NG or LPG (requires fuel bed & liner)
650JN/JP H4 Installation Manual - NG or LPG (requires fuel bed & liner)
Outer Surrounds

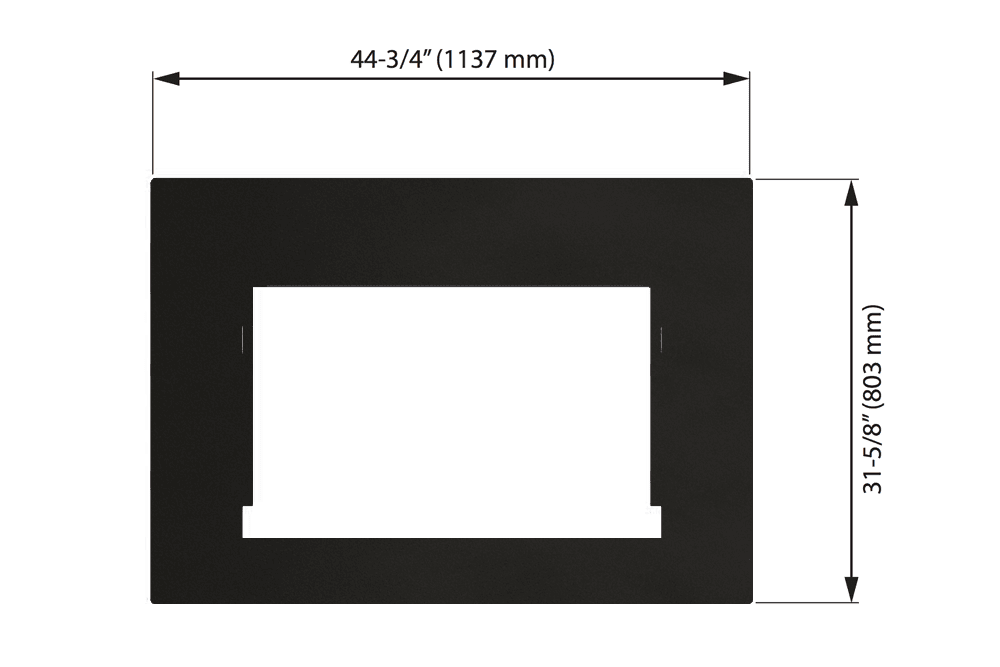

660LSB Outer Landscape Surround - Black (44 ¾"w x 32"h)

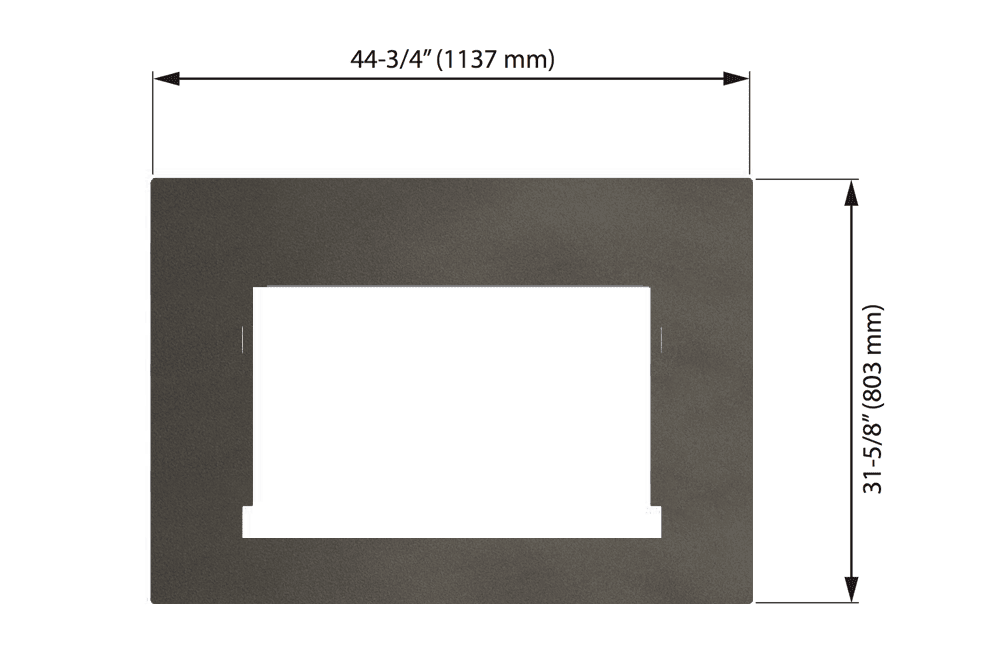

660LSV Outer Landscape Surround - Vintage Iron (44 ¾"w x 32"h)

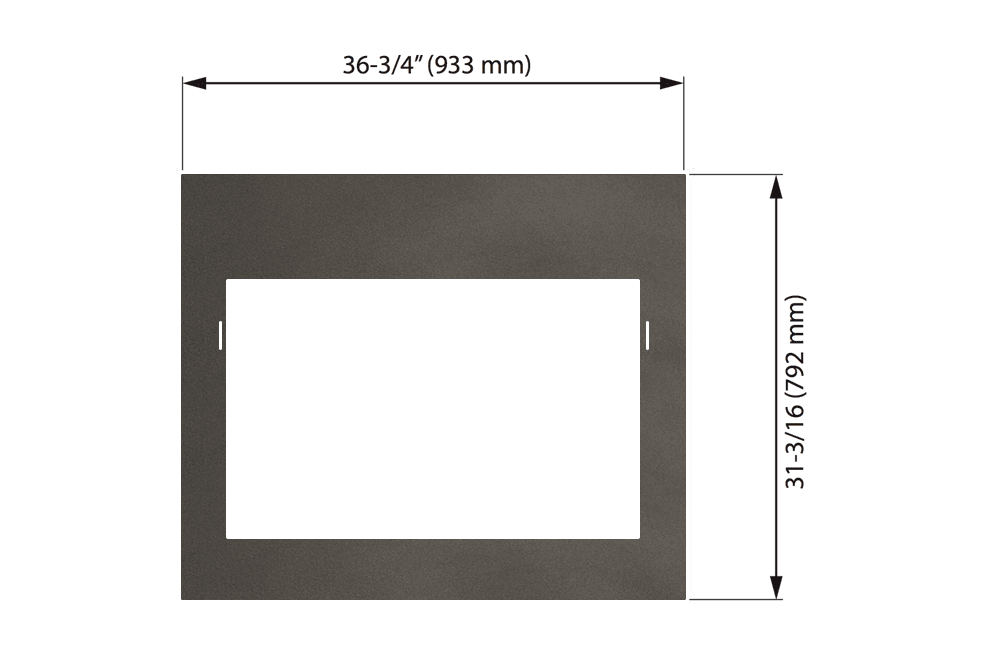

662SSV Outer Square Surround - Vintage Iron (36 ¾"w x 31-3/8"h)
Inner Surrounds

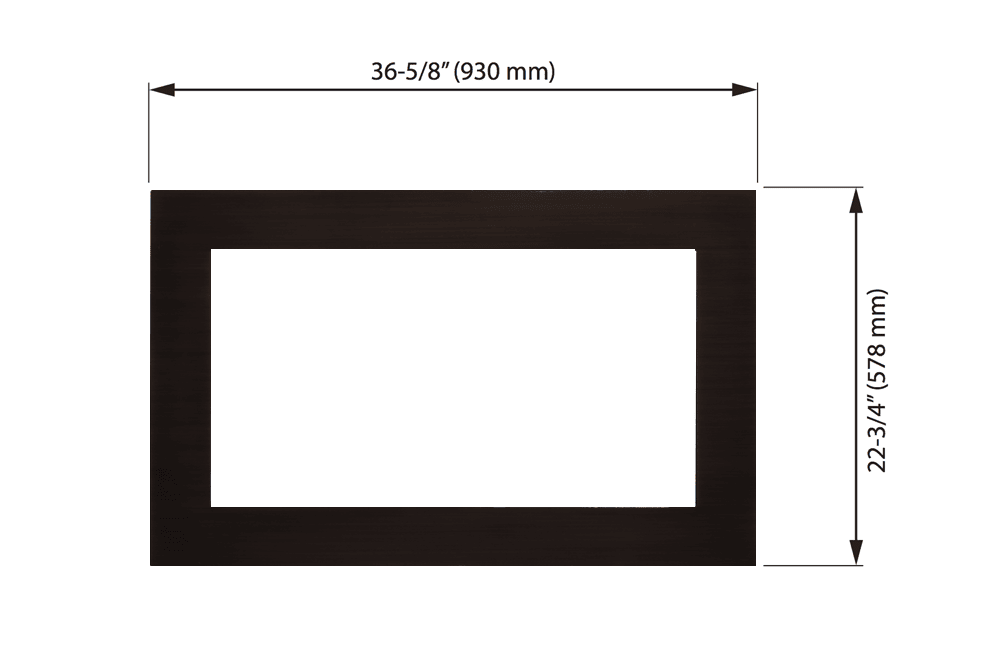

661BSB Inner Bezel Surround - Black (36-5/8"w x 22 ¾"h)

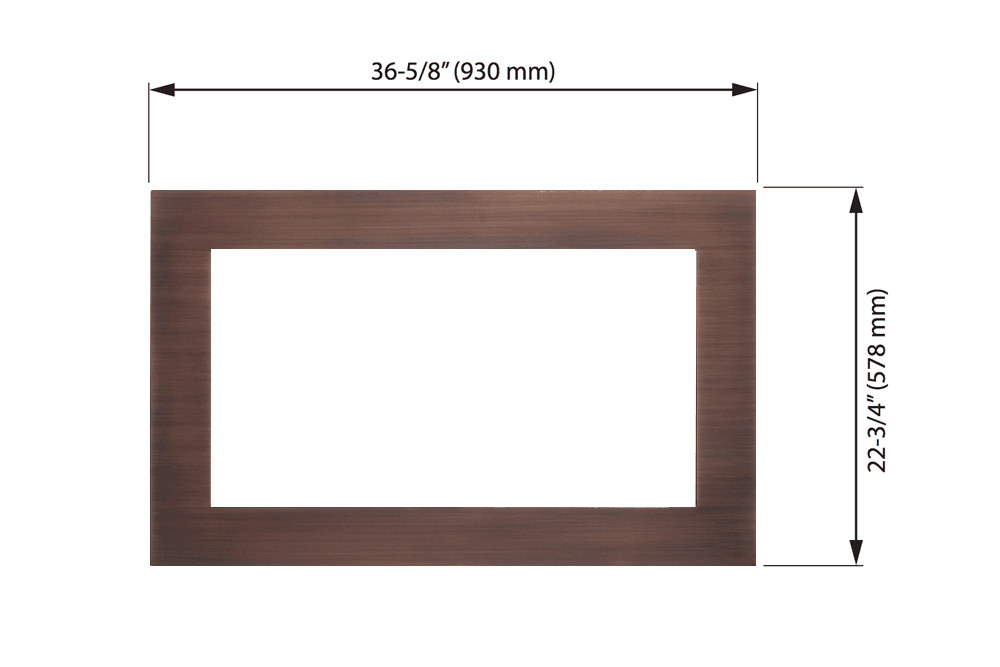

661BSC Inner Bezel Surround - Copper (36-5/8"w x 22 ¾"h)

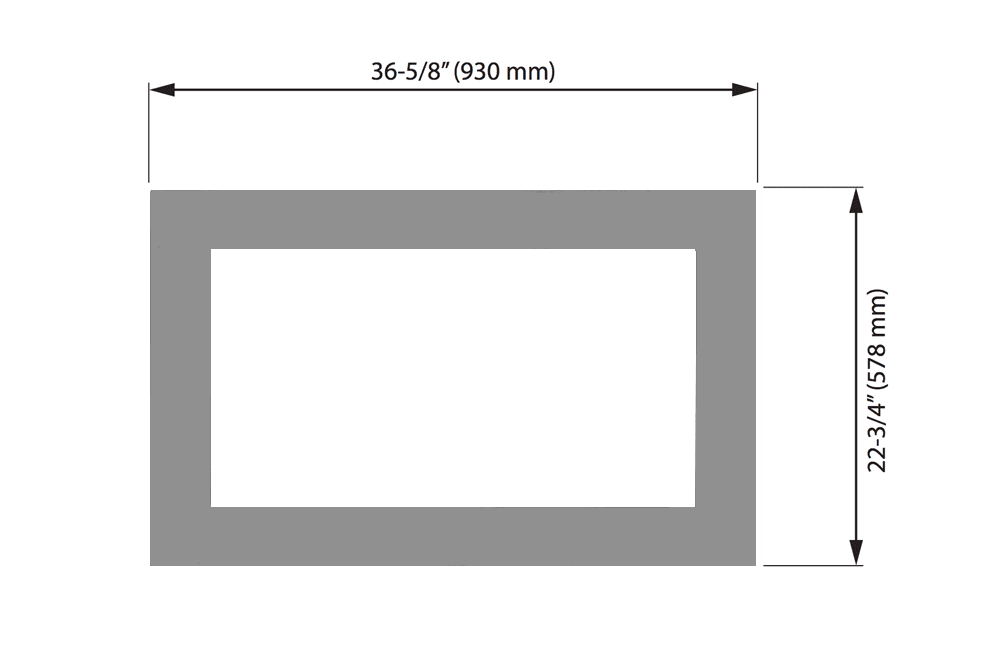

661BSN Inner Bezel Surround - Powder Nickel (36-5/8"w x 22 ¾"h)
Optional Accessories
556CLA Co-Linear Adapter (insert applications only)
559CLT Co-Linear Terminal
559SFK Square Flashing Kit (for use with 559CLT)
658DVK2 Direct Vent Sidewall Terminal & Wall Thimble
658NSFK New Siding Flashing Kit
658TG Terminal Guard
755CFK Circulating Fan Kit
761DRK Decorative Rock Kit (addition to 534RSK)
817VAK Vent Adapter Kit
DVA5BV Direct Vent Adapter to 5" B-Vent
GV60BRK 1-Hour Shutdown Kit
GV60CKO Outdoor Conversion Kit
GV60NTK Non-Thermostat Handset
GV60PAK Power Adapter Kit
RBWSK Remote Battery & Wall Swith Kit


Additional Manuals or Options
ValorStat Plus ValorStat Plus Remote Manual and Quick Guide
Specifications Framing, dimensions and clearances
Outdoor Conversion Convert for your fireplace for outdoor use.
650J Installation Checklist
1265WSK Wall Switch
RBWSK Remote Battery & Wall Switch
Gas Conversion Kits
534/650 NGK Horizon/H4 Natural Gas Conversion Kit
534/650 PGK Horizon/H4 Propane Gas Conversion Kit
Archived Models & Accessories
650IL/IR H4 650I Fireplace
650IL/IR H4 650I Specifications
650JL/IR H4 650J Fireplace
650JN/JP H4 Engine - Natural Gas or Propane
619RSK Rock Set Kit
Valor Fireplaces Safety Information


A Valor Barrier Screen is recommended with all fireplace applications, and is included with your purchase. Close adult supervision is required if there are young children, or at-risk individuals in your home. Fireplace Safety
